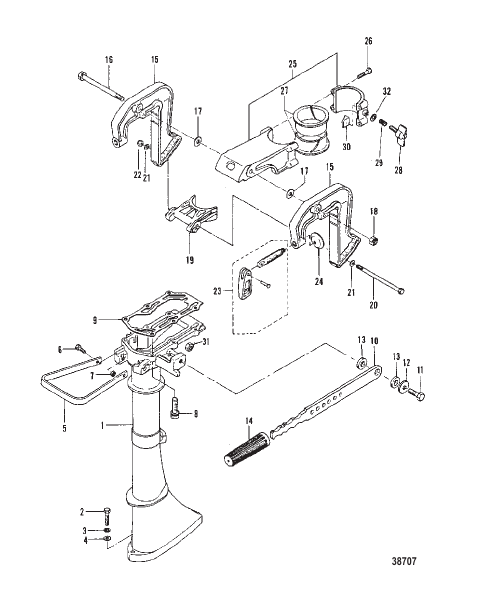

DRIVESHAFT HOUSING AND CLAMP BRACKETS
Parts (32)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9157 |
КОРПУС Карданный вал HOUSING Driveshaft |
1 | superseded |
| 10 | 95273 |
РУКОЯТКА Рулевой механизм HANDLE Steering |
1 | superseded |
| 11 | 95363 |
ВИНТ STEERING HANDLE SCREW STEERING HANDLE |
1 | superseded |
| 12 | 95275 |
ПЛАСТИНА STEERING HANDLE PLATE STEERING HANDLE |
1 | discontinued |
| 13 | 95364 |
ДЕМПФЕР RUBBER DAMPER RUBBER |
2 | |
| 14 | 95274 |
РУКОЯТКА STEERING HANDLE GRIP STEERING HANDLE |
1 | |
| 15 | 9159 |
КРОНШТЕЙН ФИКСАТОРА CLAMP BRACKET |
2 | superseded |
| 16 | 95373 |
БОЛТ CLAMP BRACKET BOLT CLAMP BRACKET |
1 | superseded |
| 17 | 95375 |
ШАЙБА CLAMP BRACKET SCREW WASHER CLAMP BRACKET SCREW |
2 | |
| 18 | 95374 |
ГАЙКА Нейлон CLAMP BRACKET SCREW NUT Nylon CLAMP BRACKET SCREW |
1 | |
| 19 | 95278 |
КРОНШТЕЙН THRUST BRACKET THRUST |
1 | |
| 2 | 95362 |
ВИНТ DRIVESHAFT HOUSING SCREW DRIVESHAFT HOUSING |
2 | superseded |
| 20 | 95376 |
ВИНТ THRUST BRACKET SCREW THRUST BRACKET |
1 | superseded |
| 21 | 95349 |
ШАЙБА BRACKET SCREW WASHER BRACKET SCREW |
2 | superseded |
| 22 | 95377 |
ГАЙКА BRACKET SCREW NUT BRACKET SCREW |
1 | superseded |
| 23 | 95378 |
ВИНТ С НАКАТАННОЙ ГОЛОВКОЙ В СБОРЕ THUMB SCREW ASSEMBLY |
2 | discontinued |
| 24 | 95379 |
НАКЛАДКА THUMB SCREW PAD THUMB SCREW |
2 | discontinued |
| 25 | 9160 |
ПОВОРОТНЫЙ КРОНШТЕЙН (3407-811204 C-CLAMP HALF) SWIVEL BRACKET (3407-811204 C-CLAMP HALF) |
1 | superseded |
| 26 | 95380 |
ВИНТ SWIVEL BRACKET SCREW SWIVEL BRACKET |
4 | superseded |
| 27 | 95381 |
ВТУЛКА SWIVEL BRACKET BUSHING SWIVEL BRACKET |
2 | |
| 28 | 95382 |
ВИНТ ADJUSTING SCREW ADJUSTING |
1 | superseded |
| 29 | 95383 |
ПРУЖИНА ADJUSTING SCREW SPRING ADJUSTING SCREW |
1 | superseded |
| 3 | 95303 |
ШАЙБА HOUSING SCREW WASHER HOUSING SCREW |
2 | superseded |
| 30 | 95279 |
НАКЛАДКА FRICTION PAD FRICTION |
1 | superseded |
| 31 | 95397 |
ГАЙКА STEERING HANDLE NUT STEERING HANDLE |
1 | superseded |
| 32 | 95349 |
ШАЙБА ADJUSTING SCREW WASHER ADJUSTING SCREW |
1 | superseded |
| 4 | 95349 |
ШАЙБА HOUSING SCREW WASHER HOUSING SCREW |
2 | superseded |
| 5 | 95276 |
РУКОЯТКА ДЛЯ ПЕРЕНОСКИ CARRYING HANDLE |
1 | |
| 6 | 95366 |
БОЛТ CARRYING HANDLE BOLT CARRYING HANDLE |
2 | superseded |
| 7 | 95367 |
ГАЙКА CARRYING HANDLE BOLT NUT CARRYING HANDLE BOLT |
2 | superseded |
| 8 | 95340 |
ВИНТ DRIVESHAFT HOUSING SCREW DRIVESHAFT HOUSING |
6 | superseded |
| 9 | 95341 |
ПРОКЛАДКА DRIVESHAFT HOUSING GASKET DRIVESHAFT HOUSING |
1 | superseded |
