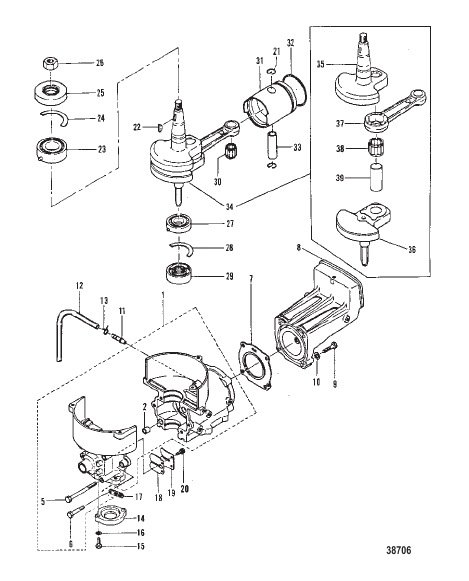

CYLINDER BLOCK, CRANKSHAFT AND PISTON
Parts (40)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 19251 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSEMBLY |
1 | discontinued |
| 1 | 9151 |
БЛОК ЦИЛИНДРА В СБОРЕ CYLINDER BLOCK ASSEMBLY |
1 | superseded |
| 10 | 95222 |
ШАЙБА CYLINDER HEAD SCREW WASHER CYLINDER HEAD SCREW |
4 | superseded |
| 11 | 95301 |
СОЕДИНИТЕЛЬ DRAIN HOSE CONNECTOR DRAIN HOSE |
1 | superseded |
| 12 | 95223 |
РУКАВ (150 мм) HOSE (150 mm) |
1 | superseded |
| 13 | 95224 |
ЗАЖИМ DRAIN HOSE CLIP DRAIN HOSE |
1 | |
| 14 | 95225 |
КОРПУС CRANKCASE HOUSING CRANKCASE |
1 | superseded |
| 15 | 95302 |
ВИНТ HOUSING SCREW HOUSING |
2 | |
| 16 | 95303 |
ШАЙБА HOUSING SCREW WASHER HOUSING SCREW |
2 | superseded |
| 17 | 95306 |
ЗАЖИМ LEAD WIRE CLAMP LEAD WIRE |
1 | superseded |
| 18 | 95226 |
ПЛАСТИНЧАТЫЕ КЛАПАНЫ REED VALVE |
1 | |
| 19 | 95304 |
СТОП REED VALVE STOP REED VALVE |
1 | discontinued |
| 2 | 95218 |
ШТИФТ Штифт PIN Dowel |
2 | discontinued |
| 20 | 95305 |
ВИНТ REED VALVE SCREW REED VALVE |
2 | |
| 21 | 95236 |
ЗАЖИМ PISTON PIN CLIP PISTON PIN |
2 | superseded |
| 22 | 95229 |
КЛЮЧ CRANKSHAFT KEY CRANKSHAFT |
1 | |
| 23 | 95228 |
ПОДШИПНИК Шарик CRANKSHAFT (UPPER) BEARING Ball CRANKSHAFT (UPPER) |
1 | superseded |
| 24 | 95230 |
ПЛАСТИНА CRANKSHAFT (UPPER) PLATE CRANKSHAFT (UPPER) |
1 | |
| 25 | 95232 |
УПЛОТНЕНИЕ Масло CRANKSHAFT (UPPER) SEAL Oil CRANKSHAFT (UPPER) |
1 | |
| 26 | 95233 |
ГАЙКА CRANKSHAFT NUT CRANKSHAFT |
1 | |
| 27 | 95307 |
ПОДШИПНИК Шарик CRANKSHAFT (LOWER) BEARING Ball CRANKSHAFT (LOWER) |
1 | |
| 28 | 95231 |
ПЛАСТИНА CRANKSHAFT (LOWER) PLATE CRANKSHAFT (LOWER) |
1 | discontinued |
| 29 | 95308 |
УПЛОТНЕНИЕ Масло CRANKSHAFT (LOWER) SEAL Oil CRANKSHAFT (LOWER) |
1 | |
| 30 | 95227 |
ПОДШИПНИК Ролик CONNECTING ROD BEARING Roller CONNECTING ROD |
1 | |
| 31 | 9154 |
ПОРШЕНЬ (STANDARD) PISTON (STANDARD) |
1 | discontinued |
| 31 | 9183 |
ПОРШЕНЬ (.5MM O.S.) PISTON (.5MM O.S.) |
AR | |
| 32 | 95234 |
КОЛЬЦО Поршень (STANDARD) RING Piston (STANDARD) |
1 | |
| 32 | 95309 |
КОЛЬЦО Поршень (.5MM O.S.) RING Piston (.5MM O.S.) |
AR | |
| 33 | 95235 |
ШТИФТ Поршень PIN Piston |
1 | superseded |
| 34 | 9153 |
КОЛЕНЧАТЫЙ ВАЛ В СБОРЕ CRANKSHAFT ASSEMBLY |
1 | superseded |
| 35 | 813049 |
КОЛЕНЧАТЫЙ ВАЛ CRANKSHAFT |
1 | discontinued |
| 36 | 813268 |
КОЛЕНЧАТЫЙ ВАЛ CRANKSHAFT |
1 | discontinued |
| 37 | 813269 |
ШАТУН CONNECTING ROD |
1 | |
| 38 | 813270 |
ПОДШИПНИК BEARING |
1 | |
| 39 | 813271 |
ШТИФТ Коленчатый вал PIN Crank |
1 | superseded |
| 5 | 95221 |
БОЛТ CRANKCASE TO BLOCK BOLT CRANKCASE TO BLOCK |
4 | superseded |
| 6 | 95298 |
БОЛТ CRANKCASE TO BLOCK BOLT CRANKCASE TO BLOCK |
2 | |
| 7 | 95299 |
ПРОКЛАДКА CYLINDER HEAD GASKET CYLINDER HEAD |
1 | superseded |
| 8 | 9152 |
ГОЛОВКА ЦИЛИНДРА CYLINDER HEAD |
1 | superseded |
| 9 | 95300 |
ВИНТ CYLINDER HEAD SCREW CYLINDER HEAD |
4 | superseded |
