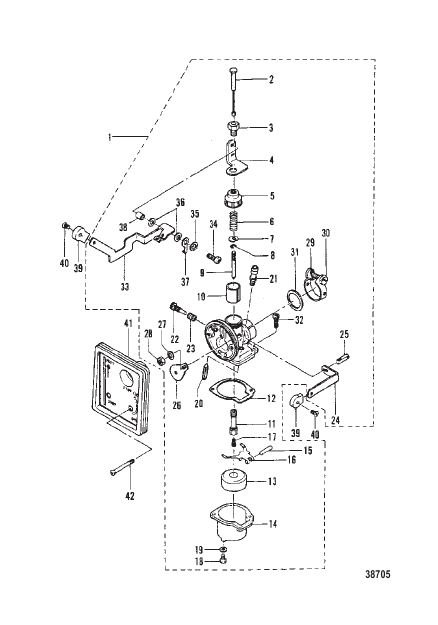

CARBURETOR
Parts (42)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9156 |
КАРБЮРАТОР В СБОРЕ CARBURETOR ASSEMBLY |
1 | discontinued |
| 10 | 95257 |
КЛАПАН Дроссельная заслонка VALVE Throttle |
1 | discontinued |
| 11 | 95258 |
ИГОЛЬЧАТЫЙ ЖИКЛЕР NEEDLE JET |
1 | discontinued |
| 12 | 95324 |
ПРОКЛАДКА FLOAT BOWL GASKET FLOAT BOWL |
1 | |
| 13 | 95259 |
ПОПЛАВОК FLOAT |
1 | |
| 14 | 95260 |
ПОПЛАВКОВАЯ КАМЕРА FLOAT BOWL |
1 | |
| 15 | 95327 |
ШТИФТ Шарнирный FLOAT PIN Hinge FLOAT |
1 | |
| 16 | 95262 |
ПЕТЛЯ FLOAT HINGE FLOAT |
1 | superseded |
| 17 | 95261 |
ГЛАВНЫЙ ЖИКЛЕР (#96) MAIN JET (#96) |
1 | superseded |
| 18 | 95325 |
ВИНТ DRAIN SCREW DRAIN |
1 | superseded |
| 19 | 95326 |
ПРОКЛАДКА DRAIN SCREW GASKET DRAIN SCREW |
1 | |
| 2 | 95252 |
ПРОВОД Дроссельная заслонка WIRE Throttle |
1 | |
| 20 | 95263 |
КЛАПАН Игла VALVE Needle |
1 | superseded |
| 21 | 95264 |
СИДЕНЬЕ NEEDLE VALVE SEAT NEEDLE VALVE |
1 | superseded |
| 22 | 95328 |
ВИНТ STOP SCREW STOP |
1 | |
| 23 | 95329 |
ПРУЖИНА STOP SCREW SPRING STOP SCREW |
1 | discontinued |
| 24 | 95266 |
РЫЧАГ Заслонка LEVER Shutter |
1 | discontinued |
| 25 | 95331 |
ВИНТ SHUTTER LEVER SCREW SHUTTER LEVER |
1 | discontinued |
| 26 | 95265 |
ПЛАСТИНА Обогатитель PLATE Choke |
1 | discontinued |
| 27 | 95303 |
ШАЙБА CHOKE PLATE WASHER CHOKE PLATE |
1 | superseded |
| 28 | 95330 |
ГАЙКА CHOKE PLATE NUT CHOKE PLATE |
1 | discontinued |
| 29 | 95332 |
ЗАЖИМ CLAMP, CARBURETOR CLAMP CLAMP, CARBURETOR |
1 | discontinued |
| 3 | 95321 |
БОЛТ THROTTLE LEVER BOLT THROTTLE LEVER |
1 | |
| 30 | 95333 |
ВИНТ CLAMP SCREW CLAMP |
1 | |
| 31 | 95337 |
ПРОКЛАДКА CARBURETOR GASKET CARBURETOR |
1 | superseded |
| 32 | 95334 |
ВИНТ FLOAT BOWL SCREW FLOAT BOWL |
2 | discontinued |
| 33 | 95268 |
РЫЧАГ Дроссельная заслонка LEVER Throttle |
1 | |
| 34 | 95335 |
ВИНТ THROTTLE LEVER SCREW THROTTLE LEVER |
1 | discontinued |
| 35 | 95238 |
СТОПОРНАЯ ШАЙБА LEVER SCREW LOCKWASHER LEVER SCREW |
1 | discontinued |
| 36 | 95336 |
ПРОКЛАДКА LEVER SCREW GASKET LEVER SCREW |
2 | |
| 37 | 95286 |
ВТУЛКА LEVER COLLAR LEVER |
1 | superseded |
| 38 | 95267 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 39 | 95269 |
РУЧКА THROTTLE AND CHOKE LEVER KNOB THROTTLE AND CHOKE LEVER |
2 | |
| 4 | 95253 |
КРОНШТЕЙН THROTTLE LEVER BRACKET THROTTLE LEVER |
1 | discontinued |
| 40 | 95338 |
ВИНТ KNOB SCREW KNOB |
2 | |
| 41 | 95270 |
КРЫШКА CARBURETOR COVER CARBURETOR |
1 | discontinued |
| 42 | 95339 |
ВИНТ CARBURETOR COVER SCREW CARBURETOR COVER |
2 | |
| 5 | 95254 |
ПРОБКА CARBURETOR CAP CARBURETOR |
1 | discontinued |
| 6 | 95322 |
ПРУЖИНА THROTTLE VALVE SPRING THROTTLE VALVE |
1 | discontinued |
| 7 | 95255 |
ПЛАСТИНА PLATE |
1 | discontinued |
| 8 | 95323 |
Е-ОБРАЗНОЕ КОЛЬЦО JET NEEDLE E RING JET NEEDLE |
1 | |
| 9 | 95256 |
ИГЛА ЖИКЛЕРА JET NEEDLE |
1 | superseded |
