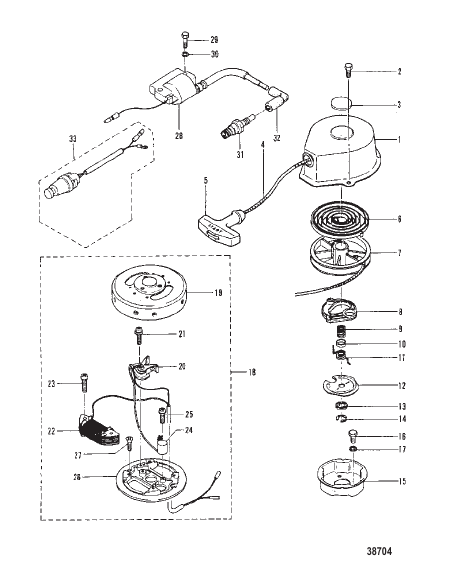

RECOIL STARTER AND IGNITION COMPONENTS
Parts (33)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 95244 |
КОРПУС Стартер HOUSING Starter |
1 | discontinued |
| 10 | 95247 |
КРЫШКА COVER |
1 | |
| 11 | 95316 |
ПРУЖИНА RETURN SPRING RETURN |
1 | |
| 12 | 95248 |
ФРИКЦИОННЫЙ ДИСК FRICTION PLATE |
1 | |
| 13 | 95317 |
УПОРНАЯ ШАЙБА THRUST WASHER |
1 | |
| 14 | 95318 |
Е-ОБРАЗНОЕ КОЛЬЦО E RING |
1 | |
| 15 | 95250 |
ШКИВ STARTER PULLEY STARTER |
1 | discontinued |
| 16 | 95319 |
ВИНТ STARTER PULLEY SCREW STARTER PULLEY |
3 | superseded |
| 17 | 95320 |
ШАЙБА PULLEY SCREW WASHER PULLEY SCREW |
3 | discontinued |
| 18 | 9155 |
МАХОВИК MAGNETO В СБОРЕ FLYWHEEL MAGNETO ASSEMBLY |
1 | superseded |
| 19 | 9184 |
МАХОВИК FLYWHEEL |
1 | discontinued |
| 2 | 95396 |
БОЛТ STARTER HOUSING BOLT STARTER HOUSING |
2 | |
| 20 | 95237 |
ВЫКЛЮЧАТЕЛЬ BREAKER |
1 | discontinued |
| 21 | 95311 |
ВИНТ BREAKER SCREW BREAKER |
1 | discontinued |
| 22 | 95241 |
КАТУШКА Катушка возбуждения COIL Exciter |
1 | superseded |
| 23 | 95313 |
ВИНТ EXCITER COIL SCREW EXCITER COIL |
1 | discontinued |
| 24 | 95240 |
КОНДЕНСАТОР CONDENSER |
1 | superseded |
| 25 | 95312 |
ВИНТ CONDENSER SCREW CONDENSER |
1 | superseded |
| 26 | 95239 |
БАЗА MAGNETO BASE MAGNETO |
1 | discontinued |
| 27 | 95310 |
ВИНТ MAGNETO BASE SCREW MAGNETO BASE |
2 | discontinued |
| 28 | 95242 |
КАТУШКА Зажигание COIL Ignition |
1 | superseded |
| 29 | 95314 |
ВИНТ IGNITION COIL SCREW IGNITION COIL |
2 | discontinued |
| 3 | 95251 |
ПРОБКА STARTER HOUSING PLUG STARTER HOUSING |
1 | discontinued |
| 30 | 95320 |
ШАЙБА IGNITION COIL SCREW WASHER IGNITION COIL SCREW |
2 | discontinued |
| 31 | 95297 |
СВЕЧА ЗАЖИГАНИЯ (CHAMPION RL-87YC) SPARK PLUG (CHAMPION RL-87YC) |
1 | superseded |
| 32 | 95282 |
ПРОБКА SPARK PLUG CAP SPARK PLUG |
1 | superseded |
| 33 | 95283 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ Стоп SWITCH ASSEMBLY Stop |
1 | superseded |
| 4 | 12066A9 |
ТРОС ROPE |
1 | superseded |
| 5 | 95249 |
РУКОЯТКА Стартер STARTER ROPE HANDLE Starter STARTER ROPE |
1 | |
| 6 | 95284 |
ПРУЖИНА RECOIL SPRING RECOIL |
1 | |
| 7 | 95245 |
РОЛИК Стартер SHEAVE Starter |
1 | discontinued |
| 8 | 95246 |
ХРАПОВИК RATCHET |
1 | |
| 9 | 95315 |
ПРУЖИНА FRICTION SPRING FRICTION |
1 |
