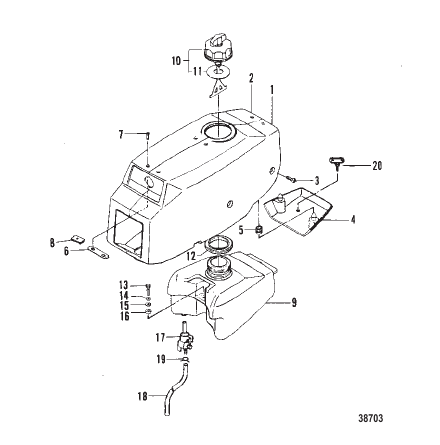

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9161 |
ВЕРХНИЙ КОЖУХ В СБОРЕ PORT TOP COWL ASSEMBLY PORT |
1 | disc. |
| 10 | 812912 |
КОЛПАЧОК В СБОРЕ FUEL TANK CAP ASSEMBLY FUEL TANK |
1 | superseded |
| 11 | 95388 |
ПРОКЛАДКА CAP GASKET CAP |
1 | superseded |
| 12 | 95389 |
УПЛОТНЕНИЕ RUBBER, FUEL TANK SEAL RUBBER, FUEL TANK |
1 | superseded |
| 13 | 95391 |
ВИНТ FUEL TANK SCREW FUEL TANK |
2 | superseded |
| 14 | 95320 |
ШАЙБА FUEL TANK SCREW WASHER FUEL TANK SCREW |
2 | disc. |
| 15 | 95392 |
ШАЙБА FUEL TANK SCREW WASHER FUEL TANK SCREW |
2 | |
| 16 | 95390 |
ПРОСТАВКА FUEL TANK SCREW SPACER FUEL TANK SCREW |
2 | disc. |
| 17 | 95393 |
КЛАПАН FUEL VALVE FUEL |
1 | |
| 18 | 95394 |
ТРУБОПРОВОД Топливо (250 мм) LINE Fuel (250 mm) |
1 | superseded |
| 19 | 95395 |
ЗАЖИМ Нержавеющая сталь FUEL LINE CLIP Stainless Steel FUEL LINE |
2 | |
| 2 | 9185 |
ВЕРХНИЙ КОЖУХ В СБОРЕ STARBOARD TOP COWL ASSEMBLY STARBOARD |
1 | disc. |
| 20 | 95398 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО COVER GROMMET COVER |
1 | disc. |
| 3 | 95384 |
ВИНТ TOP COWL SCREW TOP COWL |
6 | superseded |
| 4 | 95281 |
КРЫШКА TOP COWL COVER TOP COWL |
1 | disc. |
| 5 | 95387 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
2 | |
| 6 | 95280 |
ПЛАСТИНА TOP COWL PLATE TOP COWL |
4 | |
| 7 | 95386 |
БОЛТ PLATE TO TOP COWL BOLT PLATE TO TOP COWL |
8 | disc. |
| 8 | 95385 |
ГАЙКА PLATE SCREW NUT PLATE SCREW |
8 | |
| 9 | 9162 |
БАК Топливо TANK Fuel |
1 | superseded |
