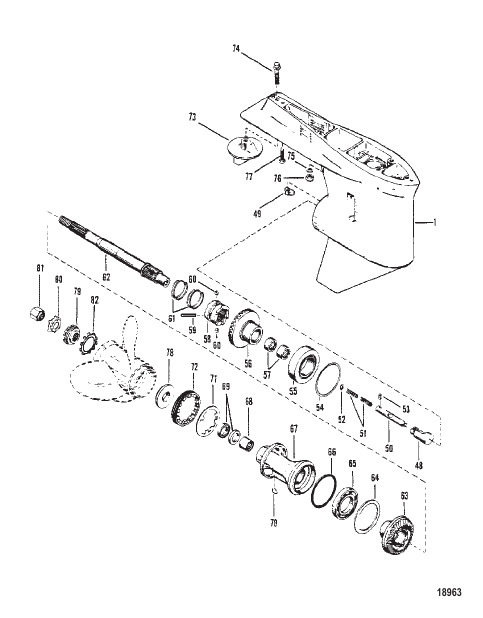

GEAR HOUSING (PROPELLER SHAFT)
Parts (45)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 9148A8 |
КАРТЕР РЕДУКТОРА В СБОРЕ Стандартное вращение, передаточное число 1.87:1 (LONG) (BLACK) GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (LONG) (BLACK) |
1 | superseded |
| - | 9148A9 |
КАРТЕР РЕДУКТОРА В СБОРЕ Стандартное вращение, передаточное число 1.87:1 (X-LONG) (BLACK) GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG) (BLACK) |
1 | superseded |
| - | 9148A10 |
КАРТЕР РЕДУКТОРА В СБОРЕ Стандартное вращение, передаточное число 1.87:1 (LONG) (GRAY) GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (LONG) (GRAY) |
1 | superseded |
| - | 9148A13 |
КАРТЕР РЕДУКТОРА В СБОРЕ Стандартное вращение, передаточное число 1.87:1 (X-LONG) (GRAY) GEAR HOUSING ASSEMBLY Standard Rotation 1.87:1 Gear Ratio (X-LONG) (GRAY) |
1 | superseded |
| - | 89238A2 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
1 | |
| - | 14697A87 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 9148A11 |
КАРТЕР РЕДУКТОРА В СБОРЕ (BLACK) GEAR HOUSING ASSEMBLY (BLACK) |
1 | superseded |
| 1 | 9148A12 |
КАРТЕР РЕДУКТОРА В СБОРЕ (GRAY) GEAR HOUSING ASSEMBLY (GRAY) |
1 | superseded |
| 48 | 78956 |
ЭКСЦЕНТРИК ПЕРЕКЛЮЧАТЕЛЯ ПЕРЕДАЧ SHIFT CAM |
1 | superseded |
| 49 | 89594A1 |
ТОЛКАТЕЛЬ В СБОРЕ CAM FOLLOWER ASSEMBLY CAM |
1 | |
| 50 | 79911 |
ШТОК CLUTCH ACTUATOR ROD CLUTCH ACTUATOR |
1 | superseded |
| 51 | 79910 |
ПРУЖИНА COMPRESSION SPRING COMPRESSION |
2 | |
| 52 | 78910 |
ШАЙБА COMPRESSION SPRING WASHER COMPRESSION SPRING |
1 | |
| 53 | 78906 |
ШТИФТ SPRING LOCATOR PIN SPRING LOCATOR |
1 | superseded |
| 54 | 47397A1 |
НАБОР ПРОКЛАДОК BEARING OUTER RACE (.002-3-5-10) SHIM SET BEARING OUTER RACE (.002-3-5-10) |
AR | |
| 55 | 78172A1 |
БЛОК ПОДШИПНИКА Конический ролик BEARING ASSEMBLY Taper Roller |
1 | |
| 56 | 44104A2 |
РЕДУКТОР В СБОРЕ Передняя GEAR ASSEMBLY Forward |
1 | superseded |
| 57 | 43999 |
ПОДШИПНИК Ролик (1.308 O.D.) BEARING Roller (1.308 O.D.) |
2 | discontinued |
| 57 | 73363 |
ПОДШИПНИК Ролик (1.313 O.D.) BEARING Roller (1.313 O.D.) |
2 | superseded |
| 58 | 78959 |
ХРАПОВИК SLIDING CLUTCH RATCHET SLIDING CLUTCH |
1 | superseded |
| 59 | 78905 |
ШТИФТ Разрез RATCHET TO PROPELLER SHAFT PIN Cross RATCHET TO PROPELLER SHAFT |
1 | superseded |
| 60 | 78909 |
ШТИФТ Фиксатор RATCHET PIN Detent RATCHET |
2 | |
| 61 | 78962 |
ПРУЖИНА RETAINING - CROSS PIN SPRING RETAINING - CROSS PIN |
2 | |
| 62 | 94148 |
ВАЛ ГРЕБНОГО ВИНТА PROPELLER SHAFT |
1 | |
| 63 | N.S.S. |
Не продается отдельно REVERSE GEAR (PART OF 43-44104A2) Not Sold Separate REVERSE GEAR (PART OF 43-44104A2) |
1 | |
| 64 | 68100 |
КОЛЬЦО THRUST - BEARING CARRIER TO GEAR HOUSING RING THRUST - BEARING CARRIER TO GEAR HOUSING |
1 | superseded |
| 65 | 88957A1 |
ПОДШИПНИК Шарик REVERSE GEAR BEARING Ball REVERSE GEAR |
1 | superseded |
| 66 | 31534 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО BEARING CARRIER O-RING BEARING CARRIER |
1 | superseded |
| 67 | 43567A1 |
СТАКАН В СБОРЕ Подшипник CARRIER ASSEMBLY Bearing |
1 | superseded |
| 68 | 30956 |
ПОДШИПНИК Игла BEARING CARRIER BEARING Needle BEARING CARRIER |
1 | superseded |
| 69 | 76868 |
УПЛОТНЕНИЕ BEARING CARRIER SEAL BEARING CARRIER |
2 | superseded |
| 70 | 30281 |
КЛЮЧ LOCATING - BEARING CARRIER KEY LOCATING - BEARING CARRIER |
1 | |
| 71 | 79447 |
ЛЕПЕСТКОВАЯ ШАЙБА GEAR HOUSING COVER TAB WASHER GEAR HOUSING COVER |
1 | |
| 72 | 79448 |
ФИКСАТОР GEAR HOUSING RETAINER GEAR HOUSING |
1 | superseded |
| 73 | 31640A1 |
ТРАНЦЕВАЯ ПЛИТА В СБОРЕ GEAR HOUSING TRIM TAB ASSEMBLY GEAR HOUSING |
1 | superseded |
| 74 | 66024 |
ВИНТ (0.437-14 x 1.75) TRIM TAB TO GEAR HOUSING SCREW (.437-14 x 1.75) TRIM TAB TO GEAR HOUSING |
1 | |
| 75 | 45176 |
ШАЙБА (0.453 x 0.812 x 0.105), нержавеющая сталь DRIVESHAFT HOUSING STUDS WASHER (.453 x .812 x .105) Stainless Steel DRIVESHAFT HOUSING STUDS |
2 | |
| 76 | 34933 |
ГАЙКА (.437-20), нержавеющая сталь DRIVESHAFT HOUSING STUDS NUT (.437-20) Stainless Steel DRIVESHAFT HOUSING STUDS |
2 | superseded |
| 77 | 65210 |
ВИНТ (0.375-16 x 1.00) GEAR HOUSING (LONG) SCREW (.375-16 x 1.00) GEAR HOUSING (LONG) |
1 | |
| 77 | 74727 |
ВИНТ (0.375-16 x 6.00) GEAR HOUSING (EXTRA LONG) SCREW (.375-16 x 6.00) GEAR HOUSING (EXTRA LONG) |
1 | |
| 78 | 13171 |
УПОРНАЯ ВТУЛКА THRUST HUB |
1 | superseded |
| 79 | 31211A2 |
ШАЙБА Шлицевый PROPELLER NUT WASHER Splined PROPELLER NUT |
1 | superseded |
| 80 | 31210 |
ЛЕПЕСТКОВАЯ ШАЙБА PROPELLER NUT TAB WASHER PROPELLER NUT |
1 | superseded |
| 81 | 52707A1 |
КОМПЛЕКТ ГАЙКИ ГРЕБНОГО ВИНТА (.750-16) PROP NUT KIT (.750-16) |
1 | superseded |
| 82 | 423511 |
СТОПОРНАЯ ШАЙБА Зубчатая PROPELLER SHAFT LOCKWASHER Toothed PROPELLER SHAFT |
1 |
