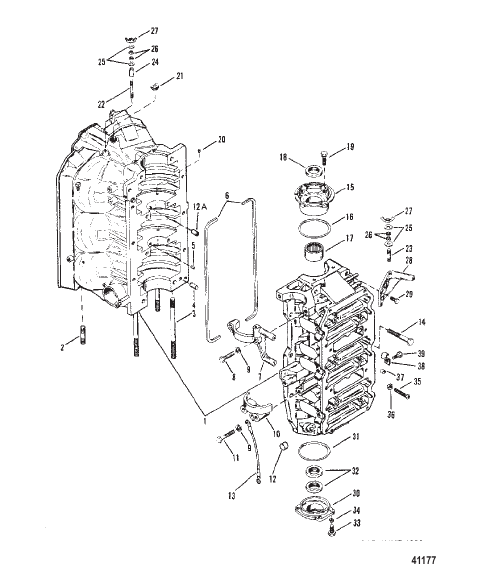

CYLINDER BLOCK AND END CAPS
Parts (45)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 15379A88 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ POWERHEAD ASSMEBLY |
1 | superseded |
| - | 14697A87 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | discontinued |
| 1 | 8712A29 |
БЛОК ЦИЛИНДРА (2 SCREW POPPET) CYLINDER BLOCK (2 SCREW POPPET) |
1 | superseded |
| 1 | 8712A41 |
БЛОК ЦИЛИНДРА (4 SCREW POPPET) CYLINDER BLOCK (4 SCREW POPPET) |
1 | superseded |
| 10 | 76867 |
КРЫШКА STARTER MOTOR (LOWER) COVER STARTER MOTOR (LOWER) |
1 | |
| 11 | 77065 |
ВИНТ (0.312-18 x 2) COVER TO CRANKCASE SCREW (.312-18 x 2) COVER TO CRANKCASE |
2 | superseded |
| 12 | 88801 |
ПРОБКА CUPPED PLUG CUPPED |
2 | discontinued |
| 12A | 99448 |
ВТУЛКА BUSHING |
1 | |
| 13 | 88807A20 |
КАБЕЛЬ В СБОРЕ COVER CABLE ASSEMBLY COVER |
1 | |
| 14 | 66717 |
ВИНТ (0.375-16 x 3.250) SCREW (.375-16 x 3.250) |
8 | |
| 14 | 74824 |
ВИНТ (0.312-18 x 1.250) SCREW (.312-18 x 1.250) |
6 | |
| 15 | 8454A2 |
ТОРЦЕВАЯ КРЫШКА В СБОРЕ UPPER END CAP ASSEMBLY UPPER |
1 | superseded |
| 16 | 54029 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (2.800 x 0.103) END CAP O-RING (2.800 x .103) END CAP |
1 | |
| 17 | 93496 |
ПОДШИПНИК Ролик END CAP BEARING Roller END CAP |
1 | superseded |
| 18 | 41953 |
УПЛОТНЕНИЕ END CAP SEAL END CAP |
1 | |
| 19 | 69034 |
ВИНТ И СТОПОРНАЯ ШАЙБА (0.312-18 x 1.00) SCREW AND LOCKWASHER (.312-18 x 1.00) |
4 | superseded |
| 2 | 76175 |
ШПИЛЬКА POWERHEAD (1-7/8") STUD POWERHEAD (1-7/8") |
6 | |
| 20 | 24220 |
ВИНТ (0.190-24 x 0.190) SCREW (.190-24 x .190) |
2 | discontinued |
| 21 | 38407 |
ПРОБКА (0.500-14) CYLINDER BLOCK (WATER JACKET) PLUG (.500-14) CYLINDER BLOCK (WATER JACKET) |
1 | |
| 22 | 15094 |
ШПИЛЬКА (0.190-32 x 1.870) STUD (.190-32 x 1.870) |
1 | discontinued |
| 23 | 15093 |
ШПИЛЬКА (№10-32 x 1.00) STUD (#10-32 x 1.00) |
2 | superseded |
| 24 | 67269 |
ПРОСТАВКА FLYWHEEL COVER STUD SPACER FLYWHEEL COVER STUD |
1 | |
| 25 | 492211 |
ШАЙБА FLYWHEEL COVER STUD WASHER FLYWHEEL COVER STUD |
6 | superseded |
| 26 | 72761 |
ШАЙБА (0.203 x 0.562 x 0.060), нержавеющая сталь FLYWHEEL COVER STUD WASHER (.203 x .562 x .060) Stainless Steel FLYWHEEL COVER STUD |
6 | |
| 27 | 73651 |
ГАЙКА FLYWHEEL COVER STUD NUT FLYWHEEL COVER STUD |
3 | superseded |
| 28 | 42248 |
КРОНШТЕЙН FLYWHEEL COVER BRACKET FLYWHEEL COVER |
1 | superseded |
| 29 | 49668 |
ВИНТ (0.250-20 x 0.750) BRACKET TO CRANKCASE SCREW (.250-20 x .750) BRACKET TO CRANKCASE |
2 | |
| 3 | 67065 |
ШПИЛЬКА POWERHEAD (5-1/2") STUD POWERHEAD (5-1/2") |
2 | superseded |
| 3 | 78438 |
ШПИЛЬКА POWERHEAD (6-3/4") STUD POWERHEAD (6-3/4") |
2 | superseded |
| 30 | 7809A1 |
ТОРЦЕВАЯ КРЫШКА В СБОРЕ LOWER END CAP ASSEMBLY LOWER |
1 | superseded |
| 31 | 62700 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (3.237 x 0.103) END CAP O-RING (3.237 x .103) END CAP |
1 | |
| 32 | 41953 |
УПЛОТНЕНИЕ END CAP SEAL END CAP |
2 | |
| 33 | 28636 |
ВИНТ (0.250-20 x 0.750) SCREW (.250-20 x .750) |
4 | |
| 34 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOWER END CAP SCREW LOCKWASHER (.250) Stainless Steel LOWER END CAP SCREW |
4 | |
| 35 | 64022 |
ВИНТ (0.250-20 x 2.125) ADJUSTING - CYLINDER BLOCK SCREW (.250-20 x 2.125) ADJUSTING - CYLINDER BLOCK |
1 | |
| 36 | 64015 |
ГАЙКА (0.250-20) JAM - ADJUSTING SCREW NUT (.250-20) JAM - ADJUSTING SCREW |
1 | |
| 37 | 26852 |
ПРОБКА Нейлон ADJUSTING SCREW CAP Nylon ADJUSTING SCREW |
1 | |
| 38 | 16793 |
ЗАЖИМ CLAMP |
1 | discontinued |
| 39 | 73286 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь SCREW (.250-20 x .500) Stainless Steel |
1 | |
| 4 | 20033 |
ШТИФТ Штифт LOCATING PIN Dowel LOCATING |
2 | superseded |
| 5 | 67296 |
ШТИФТ CYLINDER BLOCK (BEARING RACE) PIN CYLINDER BLOCK (BEARING RACE) |
2 | superseded |
| 6 | 11338 |
ПРОКЛАДКА SEALING GASKET SEALING |
2 | |
| 7 | 42249 |
КРЫШКА STARTER MOTOR (UPPER) COVER STARTER MOTOR (UPPER) |
1 | superseded |
| 8 | 73657 |
ВИНТ (0.312-18 x 1.50) COVER TO CRANKCASE SCREW (.312-18 x 1.50) COVER TO CRANKCASE |
2 | |
| 9 | 26993 |
СТОПОРНАЯ ШАЙБА (0.312) STARTER MOTOR COVER SCREW LOCKWASHER (.312) STARTER MOTOR COVER SCREW |
4 | superseded |
