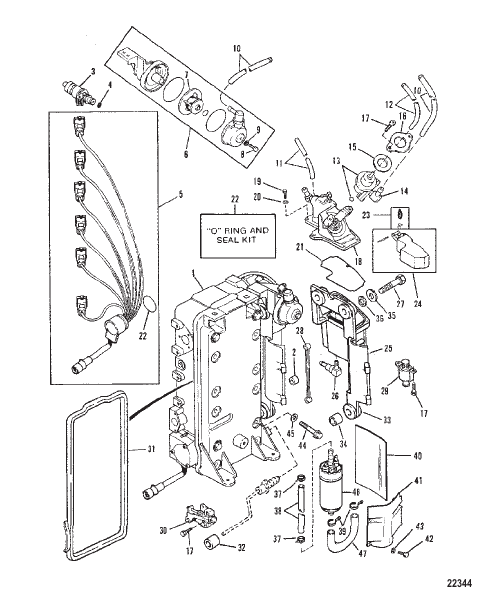

FUEL MANAGEMENT SYSTEM
Parts (47)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 14817A2 |
УЗЕЛ УПРАВЛЕНИЯ Топливо MANAGEMENT ASSEMBLY Fuel |
1 | discontinued |
| 10 | 1350377 |
РУКАВ (1/2" O.D.) HOSE (1/2" O.D.) |
1 | superseded |
| 11 | 9912688 |
ТРУБОПРОВОД (Общая длина 36.00") (1/8" I.D.) TUBING (36.00 Inches Bulk) (1/8" I.D.) |
1 | |
| 12 | 99130122 |
ТРУБОПРОВОД (Общая длина 20.00 фт.) (3/32" I.D.) TUBING (20.00 Feet Bulk) (3/32" I.D.) |
1 | superseded |
| 13 | 15027 |
РЕГУЛЯТОР PRESSURE REGULATOR PRESSURE |
1 | |
| 14 | 814233 |
КОМПЛЕКТ КОЛЕНЧАТОГО ПАТРУБКА ELBOW KIT |
1 | discontinued |
| 15 | 18791 |
ПРОКЛАДКА PRESSURE REGULATOR GASKET PRESSURE REGULATOR |
1 | discontinued |
| 16 | 814012 |
ПЛАСТИНА PRESSURE REGULATOR PLATE PRESSURE REGULATOR |
1 | discontinued |
| 17 | 814076 |
ВИНТ SCREW |
AR | discontinued |
| 18 | 814010 |
КОМПЛЕКТ КРЫШЕК COVER KIT |
1 | discontinued |
| 19 | 4001987 |
ВИНТ (M4 x 16) COVER TO SEPARATOR SCREW (M4 x 16) COVER TO SEPARATOR |
6 | |
| 2 | 67748 |
РОЛИК CAM ROLLER CAM |
1 | |
| 20 | 26995 |
СТОПОРНАЯ ШАЙБА (№8), нержавеющая сталь COVER SCREW LOCKWASHER (#8) Stainless Steel COVER SCREW |
6 | |
| 21 | 18790 |
УПЛОТНЕНИЕ VAPOR SEPARATOR SEAL VAPOR SEPARATOR |
1 | |
| 22 | 15029 |
КОМПЛЕКТ УПЛОТНИТЕЛЬНЫХ КОЛЕЦ И УПЛОТНИТЕЛЕЙ O-RING AND SEAL KIT |
1 | discontinued |
| 23 | 15446 |
КОМПЛЕКТ КЛАПАНА Поплавок VALVE KIT Float |
1 | |
| 24 | 15445 |
КОМПЕКТ ПОПЛАВКА FLOAT KIT |
1 | discontinued |
| 25 | 814011 |
КОМПЛЕКТ КОРПУСА BODY KIT |
1 | discontinued |
| 26 | 42481 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | superseded |
| 27 | 4000332 |
ВИНТ (M6 x 35) SEPARATOR TO FUEL MANAGEMENT SCREW (M6 x 35) SEPARATOR TO FUEL MANAGEMENT |
3 | |
| 28 | 15444 |
СОЕДИНИТЕЛЬ LINK |
1 | discontinued |
| 29 | 18241 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | discontinued |
| 3 | 18715 |
ФОРСУНКА Топливо INJECTOR Fuel |
6 | superseded |
| 30 | 18348 |
КЛАПАН Выключатель VALVE Shut Off |
1 | discontinued |
| 31 | 18792 |
УПЛОТНЕНИЕ INJECTOR MANIFOLD SEAL INJECTOR MANIFOLD |
1 | |
| 32 | 19275 |
ПРОСТАВКА SPACER |
1 | discontinued |
| 33 | 88033 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
3 | discontinued |
| 34 | 814913 |
ПРОСТАВКА SPACER |
3 | discontinued |
| 35 | 57427 |
ШАЙБА (LARGE) WASHER (LARGE) |
3 | superseded |
| 36 | 20346 |
ШАЙБА (SMALL) WASHER (SMALL) |
3 | superseded |
| 37 | 13791 |
ЗАЖИМ (15.7) HOSE CLAMP (15.7) HOSE |
1 | superseded |
| 38 | 1350377 |
РУКАВ (1-3/4 IN.) HOSE (1-3/4 IN.) |
1 | superseded |
| 39 | 90077 |
ЛЕНТОЧНЫЙ ХОМУТ TIE STRAP |
AR | superseded |
| 4 | 17422 |
ФИЛЬТР INJECTOR FILTER INJECTOR |
1 | |
| 40 | 14639 |
ПОКРЫТИЕ FUEL PUMP BLANKET FUEL PUMP |
1 | discontinued |
| 41 | 14640T |
КРЫШКА FUEL PUMP COVER FUEL PUMP |
1 | discontinued |
| 42 | 32228 |
ВИНТ (№10-32 x 0.625) SCREW (#10-32 x .625) |
4 | |
| 43 | 26996 |
СТОПОРНАЯ ШАЙБА (№10), нержавеющая сталь LOCKWASHER (#10) Stainless Steel |
4 | |
| 44 | 90088 |
ВИНТ (0.250-20 x 4) SCREW (.250-20 x 4) |
12 | superseded |
| 45 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
12 | superseded |
| 46 | 14307T |
НАСОС Топливо PUMP Fuel |
1 | superseded |
| 47 | 14633 |
РУКАВ HOSE |
1 | superseded |
| 5 | 15443 |
КОМПЛЕКТ ПРОВОДОВ HARNESS KIT |
1 | discontinued |
| 6 | 15442 |
КОМПЛЕКТ ФИЛЬТРА Топливо FILTER KIT Fuel |
1 | discontinued |
| 7 | 15028 |
ФИЛЬТР Топливо FILTER Fuel |
1 | superseded |
| 8 | 400034 |
ВИНТ (M5 x 14) FILTER COVER SCREW (M5 x 14) FILTER COVER |
1 | discontinued |
| 9 | 400255 |
СТОПОРНАЯ ШАЙБА (M5) COVER SCREW LOCKWASHER (M5) COVER SCREW |
1 |
