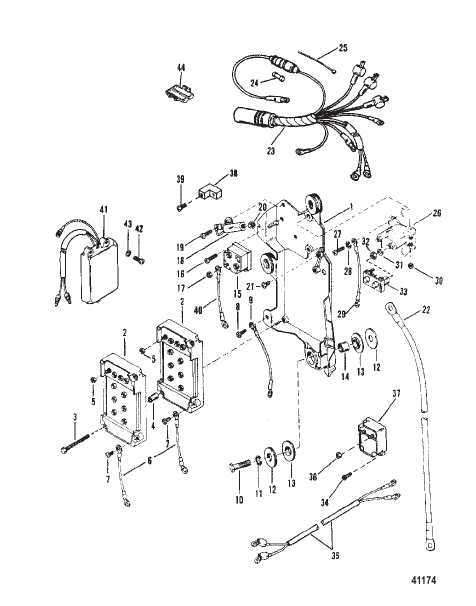

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
43429 |
PLATE IGNITION
|
1 |
superseded
|
| 10 |
69092 |
SCREW (1.25) IGNITION PLATE
|
3 |
superseded
|
| 11 |
26993 |
LOCKWASHER (.312) IGNITION PLATE SCREW
|
3 |
superseded
|
| 12 |
36042 |
WASHER IGNITION PLATE SCREW
|
6 |
|
| 13 |
67264 |
WASHER (Rubber)
|
6 |
|
| 14 |
67268 |
BUSHING IGNITION PLATE SCREW
|
3 |
disc.
|
| 15 |
62351A1 |
RECTIFIER
|
1 |
superseded
|
| 16 |
38055 |
SCREW (.190-32 x .620)
|
2 |
disc.
|
| 17 |
45076 |
NUT (#10-32) Brass RECTIFIER TERMINALS
|
3 |
|
| 18 |
33386A3 |
SWITCH ASSEMLBY
|
1 |
disc.
|
| 19 |
38055 |
SCREW (.190-32 x .620)
|
1 |
disc.
|
| 2 |
7778A6 |
SWITCHBOX ASSEMBLY
|
2 |
superseded
|
| 20 |
45076 |
NUT (#10-32) Brass MERCURY SWITCH TERMINAL
|
1 |
|
| 21 |
42813 |
SCREW (#10-32 X .380) LEAD ATTACHING
|
1 |
disc.
|
| 22 |
88439A14 |
CABLE ASSEMBLY Battery - Positive
|
1 |
|
| 22 |
88439A2 |
CABLE ASSEMBLY Battery - Negative
|
1 |
|
| 23 |
96220A6 |
HARNESS ASSEMBLY ENGINE
|
1 |
disc.
|
| 24 |
79091 |
FUSE 20 Ampere
|
1 |
superseded
|
| 25 |
73498 |
CLAMP HARNESS AND CABLES
|
AR |
superseded
|
| 26 |
15857 |
SOLENOID Starter
|
1 |
superseded
|
| 27 |
31716 |
SCREW (.250-20 x .620)
|
2 |
disc.
|
| 28 |
26992 |
LOCKWASHER (.250) Stainless Steel
|
2 |
|
| 29 |
65999A2 |
CABLE ASSEMBLY Black UPPER MOUNT
|
1 |
disc.
|
| 3 |
13669 |
SCREW (#12-24 x 2.00)
|
2 |
disc.
|
| 30 |
45076 |
NUT (#10-32) Brass SOLENOID TERMINALS
|
2 |
|
| 31 |
53166 |
LOCKWASHER (.312) SOLENOID TERMINALS
|
2 |
|
| 32 |
68292 |
NUT (.312-18) SOLENOID TERMINALS
|
2 |
superseded
|
| 33 |
97861 |
INSULATOR SOLENOID
|
1 |
|
| 34 |
48409 |
SCREW (#10-16 x .625) Stainless Steel VOLTAGE REGULATOR
|
2 |
|
| 35 |
13397A1 |
HARNESS ASSEMBLY
|
1 |
disc.
|
| 36 |
45076 |
NUT (#10-32) Brass VOLTAGE REGULATOR
|
2 |
|
| 37 |
88825A7 |
VOLTAGE REGUALTOR
|
1 |
disc.
|
| 38 |
45915 |
TERMINAL BLOCK
|
2 |
|
| 39 |
48408 |
SCREW (#10-16 x .500) TERMINAL BLOCK
|
4 |
|
| 4 |
94453 |
BUSHING SWITCH BOX SCREW
|
2 |
disc.
|
| 40 |
88808A20 |
CABLE ASSEMBLY (RED)
|
1 |
disc.
|
| 41 |
87076A6 |
IDLE SPEED CONTROL ASSEMBLY
|
1 |
superseded
|
| 42 |
69020 |
SCREW (#10-32 x .875) IDLE SPEED CONTROL
|
3 |
superseded
|
| 43 |
38833 |
WASHER IDLE SPEED CONTROL
|
3 |
|
| 44 |
134731 |
HOLDER Fuse
|
1 |
disc.
|
| 5 |
45076 |
NUT (#10-32) Brass SWITCH BOX TERMINAL
|
8 |
|
| 6 |
60871A10 |
WIRE ASSEMBLY SWITCH BOX
|
2 |
|
| 7 |
62568 |
SCREW (#10-16 x .375) WIRE ATTACHING
|
2 |
|
| 8 |
87926 |
SCREW (#10-32 x .500)
|
1 |
disc.
|
| 9 |
65999A3 |
CABLE ASSEMBLY Black
|
1 |
disc.
|
