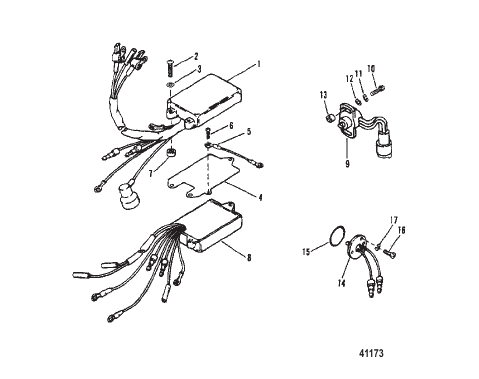

| # | Part Number | Description | Qty | Status |
|---|
| - |
14697A87 |
GASKET SET
|
1 |
disc.
|
| 1 |
14856A3 |
CONTROLLER ASSEMBLY Detonation
|
1 |
superseded
|
| 10 |
15150 |
SCREW (#8-32 x .625) INDICATOR
|
2 |
disc.
|
| 11 |
26995 |
LOCKWASHER (#8) Stainless Steel INDICATOR SCREW
|
2 |
|
| 12 |
46101 |
WASHER INDICATOR SCREW
|
2 |
superseded
|
| 13 |
15885 |
SLEEVE
|
1 |
|
| 14 |
13221A1 |
SENSOR ASSEMBLY Temperature
|
1 |
superseded
|
| 15 |
45711 |
O-RING (.612 x .103)
|
1 |
|
| 16 |
57583 |
SCREW (#8-32 x .375) TEMPERATURE SENSOR
|
3 |
superseded
|
| 17 |
26995 |
LOCKWASHER (#8) Stainless Steel TEMPERATURE SENSOR SCREW
|
3 |
|
| 2 |
88447 |
SCREW (.190-32 x 1.62) DETONATION CONTROLLER
|
3 |
|
| 3 |
38833 |
WASHER DETONATION CONTROLLER SCREW
|
3 |
|
| 4 |
13381 |
PLATE
|
1 |
disc.
|
| 5 |
60466A20 |
CABLE ASSEMBLY
|
1 |
superseded
|
| 6 |
62568 |
SCREW (#10-16 x .375) CABLE TO PLATE
|
1 |
|
| 7 |
94304 |
SPACER
|
3 |
|
| 8 |
41470A12 |
MODULE ASSEMBLY Oil Injection Warning
|
1 |
superseded
|
| 9 |
14851T |
INDICATOR THROTTLE POSITION
|
1 |
superseded
|
