Home / Mercury / Mercury Marine [Updated: Apr. 10, 2026] / Outboard / 2 Stroke EFI / V-220 Laser / [1B516994 THRU 2B091896] - USA - Cat.# 90-15380 / COWL MOUNTING BRACKET

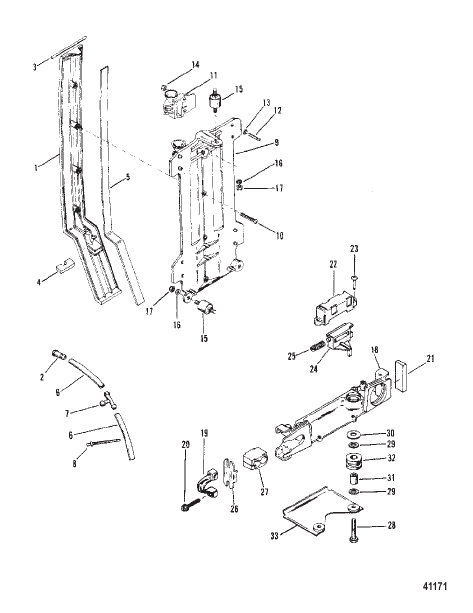

COWL MOUNTING BRACKET

Parts (35)

#Part NumberDescriptionQtyStatus
1 76258A2 BRACKET REAR COWL (BLACK) 1 disc.
1 76258A3 BRACKET REAR COWL (GRAY) 1 disc.
10 66687 SCREW (#10-32 x 1.50) REAR COWL BRACKET 4
11 85651 HOUSING COWL HINGE (PORT) 2 disc.
11 85650 HOUSING COWL HINGE (STARBOARD) 2 disc.
12 64278 SCREW (.250-28 x 1.00) COWL HINGE HOUSING 8 disc.
13 20583 WASHER COWL HINGE HOUSING SCREW 8
14 35888 NUT (.250-28) Stainless Steel COWL HINGE HOUSING SCREW 8
15 90435 MOUNT COWL MOUNTING BRACKET 3
16 29245 WASHER (.281 x .500 x .060) Stainless Steel COWL MOUNTING BRACKET MOUNT 6 superseded
17 35888 NUT (.250-28) Stainless Steel COWL MOUNTING BRACKET MOUNT 6
18 99424 BRACKET COWLING MOUNTING (LOWER) 1 disc.
19 99447T RETAINER CABLE 1 superseded
2 76256 NOZZLE TELL TALE 1 disc.
20 22411 SCREW (.190-24 x 1.00) CABLE RETAINER 2 superseded
21 67260 SEAL CONTROL CABLES 1 disc.
22 67241 HOUSING COWL LATCH 1
23 92051 SCREW (10-16 x .75) COWL LATCH HOUSING 2
24 87608 LATCH Cowl 1 disc.
25 60295 SPRING COWL LATCH 1 disc.
26 88622 PLATE CABLE RETAINER 1 disc.
27 99391 RETAINER OIL LINES 1 disc.
28 69093 SCREW (.250-20 x 1.50) LOWER BRACKET 2 disc.
29 20346 WASHER LOWER BRACKET SCREW (SMALL) 4 superseded
3 67984 SEAL REAR COWL BRACKET TO COWL 1 disc.
30 57427 WASHER LOWER BRACKET SCREW (LARGE) 2 superseded
31 88180 BUSHING LOWER BRACKET GROMMET 2 disc.
32 88033 GROMMET LOWER BRACKET 2 disc.
33 13719T PLATE RETAINING 1 disc.
4 67228 SEAL REAR COWL BRACKET TO COWL 1 disc.
5 67999 SEAL REAR COWL BRACKET TO COWL 2 disc.
6 99127109 LINE (57.00 Inches Bulk) TELL TALE (4") 2 superseded
7 90824 TEE TELL TALE HOSE 1 superseded
8 73498 CLAMP TELL TALE HOSE AR superseded
9 86386A1 BRACKET ASSEMBLY COWL SUPPORT 1 disc.
