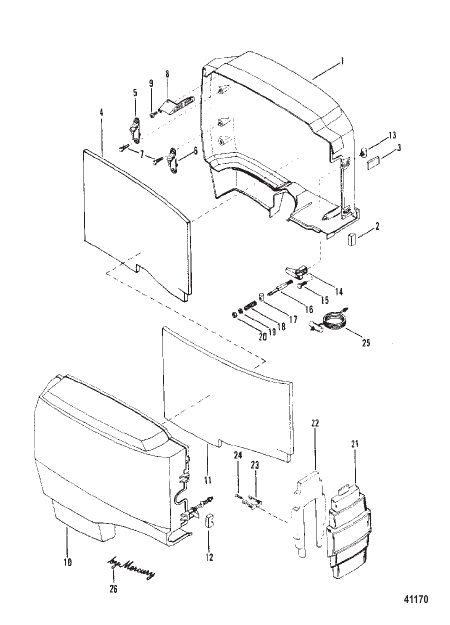

COWLS AND FRONT COVER
Parts (31)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 7620A4 |
ВЕРХНИЙ КОЖУХ В СБОРЕ PORT (BLACK) TOP COWL ASSEMBLY PORT (BLACK) |
1 | discontinued |
| 1 | 7620A22 |
ВЕРХНИЙ КОЖУХ В СБОРЕ PORT (GRAY) TOP COWL ASSEMBLY PORT (GRAY) |
1 | discontinued |
| 10 | 7619A1 |
ВЕРХНИЙ КОЖУХ В СБОРЕ STARBOARD (BLACK) TOP COWL ASSEMBLY STARBOARD (BLACK) |
1 | discontinued |
| 10 | 7619A5 |
ВЕРХНИЙ КОЖУХ В СБОРЕ STARBOARD (GRAY) TOP COWL ASSEMBLY STARBOARD (GRAY) |
1 | discontinued |
| 11 | 88227 |
ПОКРЫТИЕ SOUND - COWL BLANKET SOUND - COWL |
1 | discontinued |
| 12 | 67260 |
УПЛОТНЕНИЕ HARNESS SEAL HARNESS |
1 | discontinued |
| 13 | 62628 |
ДИФФУЗОР RETAINING - COWL LATCH BARREL RETAINING - COWL LATCH |
2 | discontinued |
| 14 | 46785A5 |
ЗАЩЕЛКА В СБОРЕ Кожух LATCH ASSEMBLY Cowl |
2 | discontinued |
| 15 | 31312 |
ВИНТ (№10-32 x 0.875) BARREL TO COWL LATCH SCREW (#10-32 x 0.875) BARREL TO COWL LATCH |
2 | discontinued |
| 16 | 15222 |
BAR (БАР) ADJUSTING - COWL LATCH BAR ADJUSTING - COWL LATCH |
2 | discontinued |
| 17 | 62629 |
ДИФФУЗОР RETAINING COWL LATCH BARREL RETAINING COWL LATCH |
2 | discontinued |
| 18 | 62624 |
ПРУЖИНА COWL LATCH SPRING COWL LATCH |
2 | discontinued |
| 19 | 30164 |
ШАЙБА (0.192 x 0.375 x 0.0312), нержавеющая сталь SPRING TO ADJUSTING BAR WASHER (.192 x .375 x .0312) Stainless Steel SPRING TO ADJUSTING BAR |
2 | |
| 2 | 67260 |
УПЛОТНЕНИЕ CONTROL CABLE SEAL CONTROL CABLE |
1 | discontinued |
| 20 | 45812 |
ГАЙКА (№10-32), нержавеющая сталь SPRING TO ADJUSTING BAR NUT (#10-32) Stainless Steel SPRING TO ADJUSTING BAR |
2 | superseded |
| 21 | 7532A2 |
КРЫШКА В СБОРЕ Картер – передний (BLACK) COVER ASSEMBLY Cowl - Front (BLACK) |
1 | discontinued |
| 21 | 7532A23 |
КРЫШКА В СБОРЕ Картер – передний (GRAY) COVER ASSEMBLY Cowl - Front (GRAY) |
1 | discontinued |
| 22 | 67615 |
ПОКРЫТИЕ SOUND - COWL FRONT COVER BLANKET SOUND - COWL FRONT COVER |
1 | discontinued |
| 23 | 87907 |
КРЮК COWL FRONT COVER HOOK COWL FRONT COVER |
1 | discontinued |
| 24 | 70332 |
ВИНТ (№10-16 x 0.500) HOOK TO COWL FRONT COVER SCREW (#10-16 x .500) HOOK TO COWL FRONT COVER |
1 | superseded |
| 25 | 47341A1 |
КОМПЛЕКТ ТРОСА И РУКОЯТКИ Ручной/аварийный запуск (FOR MANUAL STARTING) ROPE AND HANDLE KIT Manual/Emergency Start (FOR MANUAL STARTING) |
1 | superseded |
| 26 | 15132 |
ЭМБЛЕМА (3") EMBLEM (3") |
1 | discontinued |
| 26 | 151321 |
ЭМБЛЕМА (6") EMBLEM (6") |
2 | discontinued |
| 3 | 67258 |
НАКЛАДКА COWL ASSEMBLY TO FRONT COVER PAD COWL ASSEMBLY TO FRONT COVER |
1 | discontinued |
| 4 | 88227 |
ПОКРЫТИЕ SOUND - COWL BLANKET SOUND - COWL |
1 | discontinued |
| 5 | 87987 |
КРОНШТЕЙН COWL ATTACHING - UPPER BRACKET COWL ATTACHING - UPPER |
2 | superseded |
| 6 | 87985 |
КРОНШТЕЙН COWL ATTACHING - LOWER BRACKET COWL ATTACHING - LOWER |
2 | superseded |
| 7 | 37562 |
ВИНТ (0.312-18 x 1.00), нержавеющая сталь SCREW (.312-18 x 1.00) Stainless Steel |
8 | |
| 8 | 68049 |
ЭКРАН INLET - COWL (STARBOARD) SHIELD INLET - COWL (STARBOARD) |
1 | discontinued |
| 8 | 68048 |
ЭКРАН INLET - COWL (PORT) SHIELD INLET - COWL (PORT) |
1 | discontinued |
| 9 | 48409 |
ВИНТ (№10-16 x 0.625), нержавеющая сталь SCREW (#10-16 x .625) Stainless Steel |
4 |
