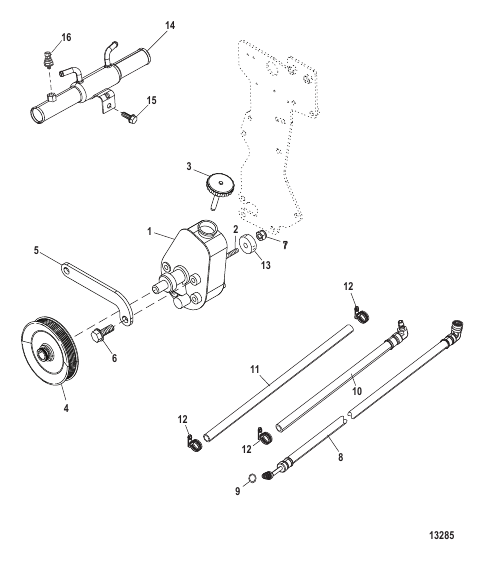

Power Steering Components
Parts (21)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 16792A39 |
НАСОС В СБОРЕ Power Steering PUMP ASSEMBLY Power Steering |
1 | |
| 10 | 865390015 |
РУКАВ Быстроразъемное соединение вилки (Fitting on One End) HOSE Male Quick Connect (Fitting on One End) |
1 | |
| 10 | 865390134 |
РУКАВ Быстроразъемное соединение вилки (Fitting on One End) (Jackshaft Models) HOSE Male Quick Connect (Fitting on One End) (Jackshaft Models) |
1 | |
| 11 | 8M0062341 |
РУКАВ (Общая длина 53.00") Pump to Oil Cooler (37 Inch) HOSE (53.00 Inches Bulk) Pump to Oil Cooler (37 Inch) |
1 | |
| 12 | 815504105 |
ЗАЖИМ Червячная передача (11-18 мм) Hose CLAMP Worm Gear (11-18 mm) Hose |
3 | superseded |
| 13 | 905201 |
ПРОСТАВКА (0.750 x 0.250) SPACER (.750 x .250) |
1 | |
| 14 | 8M0120252 |
ОХЛАДИТЕЛЬ Power Steering COOLER Power Steering |
1 | |
| 15 | 816585 |
ВИНТ (0.312-18 x 0.875) SCREW (.312-18 x .875) |
1 | |
| 16 | 8M0157742 |
ДАТЧИК Давление воды SENSOR Water Pressure |
1 | |
| 2 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Stud NOT SOLD SEPARATE Stud |
2 | |
| 3 | 95805 |
ПРОБКА CAP |
1 | |
| 4 | 861578 |
ШКИВ PULLEY |
1 | superseded |
| 5 | 862082T |
СКОБА Power Steering BRACE Power Steering |
1 | |
| 6 | 40001188 |
ВИНТ (M10 x 20) SCREW (M10 x 20) |
2 | discontinued |
| 7 | 90517 |
ГАЙКА (M10) NUT (M10) |
2 | |
| 8 | 8M0063020 |
РУКАВ Быстроразъемное соединение гнезда (Fittings on Both Ends) HOSE Female Quick Connect (Fittings on Both Ends) |
1 | |
| 8 | 8M0063022 |
РУКАВ Быстроразъемное соединение гнезда (Fittings on Both Ends) (Jackshaft Models) HOSE Female Quick Connect (Fittings on Both Ends) (Jackshaft Models) |
1 | |
| 9 | 89879 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.064) O-RING (.301 x .064) |
1 | |
| NS | 8M0074363 |
ПРОБКА Hose Clamp End (.25 Inside Diameter) CAP Hose Clamp End (.25 Inside Diameter) |
AR | |
| NS | 8M0074364 |
ПРОБКА Hose Clamp End (.375 Inside Diameter) COVER Hose Clamp Hose Clamp End (.375 Inside Diameter) |
1 | |
| NS | 77054 |
ЛЕНТОЧНЫЙ ХОМУТ (14.50") TIE STRAP (14.50 Inches) |
1 |
