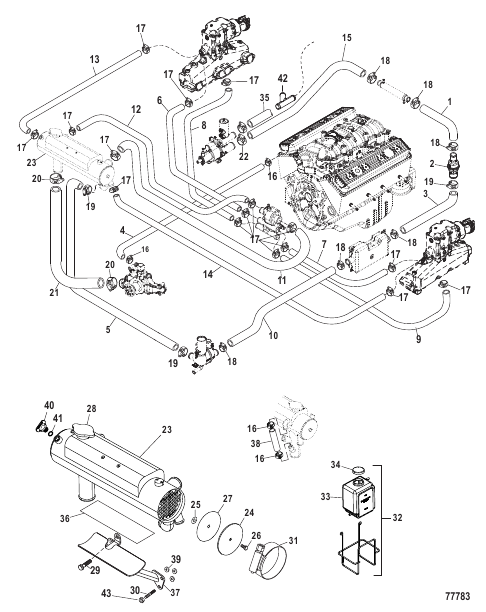

Closed Cooling System
Parts (45)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 863489 |
РУКАВ Cooler to Check Valve HOSE Cooler to Check Valve |
1 | |
| 10 | 863670 |
РУКАВ Fuel Cooler to Accumulator Housing HOSE Fuel Cooler to Accumulator Housing |
1 | |
| 11 | 864506 |
РУКАВ Heat Exchanger to Thermostat Housing Cut 1" off thermostat end of hose to fit HOSE Heat Exchanger to Thermostat Housing Cut 1" off thermostat end of hose to fit |
1 | |
| 12 | 8M0215652 |
HOSE Heat Exchanger to Thermostat Housing HOSE Heat Exchanger to Thermostat Housing |
1 | |
| 13 | 8M2005027 |
РУКАВ Heat Exchanger to Starboard Elbow HOSE Heat Exchanger to Starboard Elbow |
1 | |
| 14 | 8M0215651 |
HOSE Heat Exchanger to Port Elbow HOSE Heat Exchanger to Port Elbow |
1 | |
| 15 | 863611 |
РУКАВ Sea Pump to Oil Cooler Cut Oil Cooler end to fit HOSE Sea Pump to Oil Cooler Cut Oil Cooler end to fit |
1 | |
| 16 | 815504212 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | |
| 17 | 815504216 |
ЗАЖИМ Червячная передача (диаметр 1.56) Hose CLAMP Worm Gear (1.56 Diameter) Hose |
1 | |
| 18 | 815504222 |
ЗАЖИМ Червячная передача (диаметр 1.98) Hose CLAMP Worm Gear (1.98 DIameter) Hose |
1 | superseded |
| 19 | 815504228 |
ЗАЖИМ Червячная передача Hose CLAMP Worm Gear Hose |
1 | |
| 2 | 864206A1 |
ОБРАТНЫЙ КЛАПАН В СБОРЕ CHECK VALVE ASSEMBLY |
1 | |
| 20 | 815504232 |
ЗАЖИМ Червячная передача (диаметр 2.50) Hose CLAMP Worm Gear (2.50 Diameter) Hose |
1 | |
| 21 | 864886 |
РУКАВ Heat Exchanger to Circulating Pump HOSE Heat Exchanger to Circulating Pump |
1 | |
| 22 | 815504224 |
ЗАЖИМ Червячная передача Hose CLAMP Worm Gear Hose |
1 | |
| 23 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Heat Exchanger, Closed Cooling NOT SOLD SEPARATE Heat Exchanger, Closed Cooling |
1 | |
| 24 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО End Cap NOT SOLD SEPARATE End Cap |
2 | |
| 25 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО O-Ring NOT SOLD SEPARATE O-Ring |
4 | |
| 26 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw NOT SOLD SEPARATE Screw |
2 | |
| 27 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Seal NOT SOLD SEPARATE Seal |
2 | |
| 28 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО CAP, Pressure NOT SOLD SEPARATE CAP, Pressure |
1 | |
| 29 | 805559 |
ВИНТ (0.375-16 x 0.875), нержавеющая сталь SCREW (.375-16 x .875) Stainless Steel |
1 | |
| 3 | 863623 |
РУКАВ Check Valve to Fuel Cooler HOSE Check Valve to Fuel Cooler |
1 | |
| 30 | 805357 |
ШПИЛЬКА (0.375-16 x 2.130) STUD (.375-16 x 2.130) |
3 | superseded |
| 31 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Hose Clamp NOT SOLD SEPARATE Hose Clamp |
1 | |
| 32 | 71587A10 |
КОМПЛЕКТ ДЛЯ ВОССТАНОВЛЕНИЯ Охлаждающая жидкость RECOVERY KIT Coolant |
1 | |
| 33 | 71587A11 |
БАЧОК Пластик Coolant Recovery Kit BOTTLE Plastic Coolant Recovery Kit |
1 | |
| 34 | 72058 |
ПРОБКА Coolant Recovery Bottle CAP Bottle Coolant Recovery Bottle |
1 | |
| 35 | 86334379 |
РУКАВ (Общая длина 96.00") Sea Water Pump to Water Pick Up HOSE (96.00 Inches Bulk) Sea Water Pump to Water Pick Up |
1 | superseded |
| 36 | 18431 |
НАКЛАДКА Heat Exchanger PAD Heat Exchanger |
1 | |
| 37 | 864494T |
КРОНШТЕЙН Cooler BRACKET Cooler |
1 | |
| 38 | 864533 |
РУКАВ HOSE |
1 | superseded |
| 39 | 57369 |
ПРОСТАВКА SPACER |
3 | |
| 4 | 864551 |
РУКАВ Intake Bypass to Circulating Pump HOSE Intake Bypass to Circulating Pump |
1 | |
| 40 | 8M0119211 |
УЗЕЛ ПРОБКИ (0.500-13), синий PLUG ASSEMBLY (.500-13) Blue |
1 | |
| 41 | 32509 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.489 x 0.070) O-RING (.489 x .070) |
1 | |
| 42 | 864727 |
ФИТИНГ Y, (3) 1-1/4" Н.Д. ниппелей шлангов (Bravo) FITTING Y, (3) 1-1/4 In. OD Hose Barbs (Bravo) |
1 | |
| 43 | 82671112 |
ГАЙКА (.375-16) NUT (.375-16) |
3 | |
| 5 | 864431 |
РУКАВ Distribution Fitting to Heat Exchanger HOSE Distribution Fitting to Heat Exchanger |
1 | |
| 6 | 8M2005027 |
РУКАВ Thermostat Housing to Upper Manif (Starboard) HOSE Thermostat Housing to Upper Manif (Starboard) |
1 | |
| 7 | 864539 |
РУКАВ Thermostat Housing to Upper Manifold (Port) HOSE Thermostat Housing to Upper Manifold (Port) |
1 | |
| 8 | 8M0215654 |
HOSE Thermostat Housing to Lower Manif (Starboard) HOSE Thermostat Housing to Lower Manif (Starboard) |
1 | |
| 9 | 864440 |
HOSE Thermostat Housing to Lower Manifold (Port) HOSE Thermostat Housing to Lower Manifold (Port) |
1 | |
| NS | 774572 |
РУКАВ (Общая длина 48.00") HOSE (48.00 Inches Bulk) |
1 | |
| NS | 32461 |
РУКАВ Heat Exchanger Clamp Bushing HOSE Heat Exchanger Clamp Bushing |
2 |
