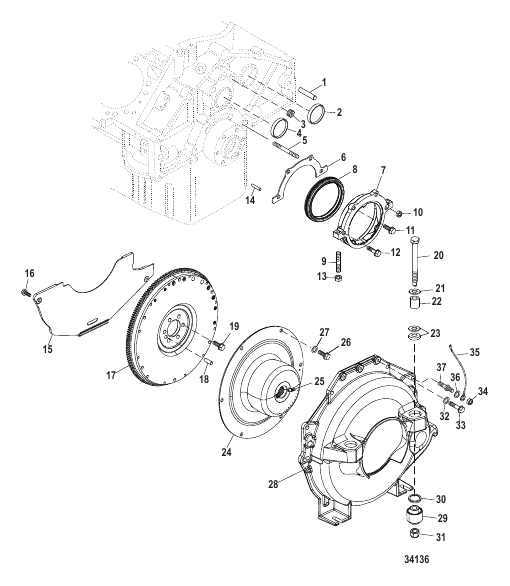

Flywheel Housing
Parts (39)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0092110 |
ШТИФТ Штифт Flywheel Housing Location PIN Dowel Flywheel Housing Location |
2 | |
| 10 | 8M0098315 |
ГАЙКА NUT |
1 | |
| 11 | 14242 |
БОЛТ (0.250-20 x 0.875) BOLT (.250-20 x .875) |
2 | |
| 12 | 8M0064241 |
БОЛТ BOLT |
1 | |
| 13 | 11971 |
ГАЙКА (0.312-18) NUT (.312-18) |
2 | superseded |
| 14 | 14263 |
ШТИФТ Штифт Oil Seal Housing Locating PIN Dowel Oil Seal Housing Locating |
1 | |
| 15 | 807260A2 |
КОМПЛЕКТ КРЫШЕК Маховик COVER KIT Flywheel |
1 | |
| 16 | 76596 |
ВИНТ (0.250-20 x 1.250) SCREW (.250-20 x 1.250) |
2 | |
| 17 | 8M0207556 |
FLYWHEEL ASSEMBLY FLYWHEEL ASSEMBLY |
1 | |
| 18 | 43504 |
ШТИФТ Штифт Flywheel PIN Dowel Flywheel |
2 | |
| 19 | 845757 |
ВИНТ (0.437-20 x 1.00) SCREW (.437-20 x 1.00) |
6 | superseded |
| 2 | 34270 |
КОМПЕНСАЦИОННАЯ ЗАГЛУШКА (1.625) Engine Core Hole EXPANSION PLUG (1.625) Engine Core Hole |
8 | |
| 20 | 97934 |
ВИНТ (0.500-20 x 5.370), специальный SCREW (.500-20 x 5.370) Special |
2 | superseded |
| 21 | 35777 |
ШАЙБА (0.5156 x 1.375 x 0.125), алюминий WASHER (.5156 x 1.375 x .125) Aluminum |
2 | |
| 22 | 99299 |
ПРОСТАВКА (0.520 x 0.870 x 0.630) SPACER (.520 x .870 x .630) |
2 | |
| 23 | 892619A01 |
КОМПЛЕКТ ПРОКЛАДКИ SHIM KIT |
1 | |
| 24 | 8M0098795 |
СОЕДИНИТЕЛЬНАЯ МУФТА В СБОРЕ COUPLER ASSEMBLY |
1 | |
| 25 | 49099 |
ФИТИНГ FITTING |
2 | superseded |
| 26 | 863480 |
ВИНТ (0.375-16 x 1.125) SCREW (.375-16 x 1.125) |
6 | |
| 27 | 20572 |
ШАЙБА (0.390 x 0.750 x 0.093) WASHER (.390 x .750 x .093) |
6 | |
| 28 | 865657A04 |
КОРПУС В СБОРЕ Маховик HOUSING ASSEMBLY Flywheel |
1 | |
| 29 | 865330A02 |
МОНТАЖНЫЙ КОМПЛЕКТ Резина MOUNT KIT Rubber |
1 | |
| 3 | 32561 |
ПРОБКА Труба – головка с внутренним шестигранником (0.250-18) Oil Galley PLUG Pipe - Allen Head (.250-18) Oil Galley |
4 | superseded |
| 30 | 99322 |
ПРОСТАВКА SPACER |
2 | |
| 31 | 863332 |
ГАЙКА (0.500-20), алюминий NUT (.500-20) Aluminum |
2 | |
| 32 | 20572 |
ШАЙБА (0.390 x 0.750 x 0.093) WASHER (.390 x .750 x .093) |
1 | |
| 33 | 37612 |
ВИНТ (0.375-16 x 1.250) SCREW (.375-16 x 1.250) |
1 | |
| 33 | 32132 |
ВИНТ (0.375-16 x 1.750) SCREW (.375-16 x 1.750) |
1 | |
| 34 | 32219 |
ГАЙКА (.375-16) NUT (.375-16) |
2 | |
| 35 | 62826T06 |
КАБЕЛЬ В СБОРЕ Заземление (13.00"), черный CABLE ASSEMBLY Ground (13.00 Inches) Black |
2 | |
| 36 | 35048 |
СТОПОРНАЯ ШАЙБА (0.375) LOCKWASHER (.375) |
2 | |
| 37 | 861316 |
ШПИЛЬКА STUD (.375-16 x 2.750) Special |
2 | |
| 4 | 72640 |
ПРОБКА Expansion, Camshaft Bearing Hole PLUG Expansion, Camshaft Bearing Hole |
1 | |
| 5 | 14827 |
ШПИЛЬКА (0.250-20 x 2.180) STUD (.250-20 x 2.180) |
2 | |
| 6 | 881715 |
ПРОКЛАДКА Crankshaft Oil Seal Housing GASKET Crankshaft Oil Seal Housing |
1 | |
| 7 | 852940 |
КОРПУС В СБОРЕ Со шпильками Crankshaft Oil Seal HOUSING ASSEMBLY With Studs Crankshaft Oil Seal |
1 | |
| 8 | 852941 |
УПЛОТНЕНИЕ Crankshaft Oil SEAL Crankshaft Oil |
1 | |
| 9 | 11989 |
ШПИЛЬКА (0.312-18 x 1.6718) STUD (.312-18 x 1.6718) |
2 | |
| NS | 807296 |
ГАЙКА (0.250-20) NUT (.250-20) |
2 |
