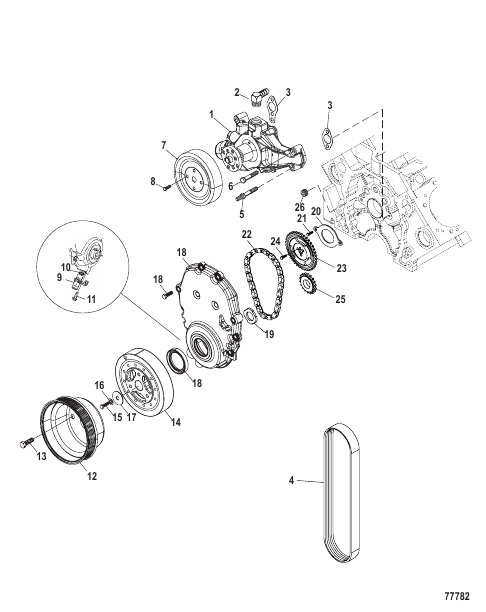

Front Cover and Circulating Pump
Parts (27)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0224473 |
WATER PUMP WATER PUMP |
1 | |
| 10 | 885192 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 11 | 884018001 |
ВИНТ SCREW |
1 | |
| 12 | 807730T |
ШКИВ Crankshaft PULLEY Crankshaft |
1 | |
| 13 | 34352 |
ВИНТ (0.375-24 x 0.875) SCREW (.375-24 x .875) |
3 | |
| 14 | 8M0215025 |
HARMONIC BALANCER HARMONIC BALANCER |
1 | |
| 15 | 8M2021674 |
ВИНТ (0.437-20 x 2.50) SCREW (.437-20 x 2.50) |
1 | |
| 16 | 39131 |
СТОПОРНАЯ ШАЙБА (0.437) LOCKWASHER (.437) |
1 | |
| 17 | 71458 |
ШАЙБА WASHER |
1 | |
| 18 | 8M0224483 |
TIMING COVER TIMING COVER |
1 | |
| 19 | 863398 |
РУЛЕВОЕ КОЛЕСО РЕДУКТОРА RELUCTOR WHEEL |
1 | |
| 2 | 808042 |
ФИТИНГ Коленчатый патрубок (90 градусов, 0.50 NPT x 0.75 бар) FITTING Elbow (90 Degrees) (.50 NPT x .75 Bars) |
1 | |
| 20 | 845941 |
ФИКСАТОР Camshaft RETAINER Camshaft |
1 | |
| 21 | 845943 |
ВИНТ (0.250-20 x 0.500) SCREW (.250-20 x .500) |
2 | |
| 22 | 17161T |
ЦЕПЬ Timing CHAIN Timing |
1 | superseded |
| 23 | 8116591 |
ЗВЕЗДОЧКА Camshaft SPROCKET Camshaft |
1 | |
| 24 | 8M0043993 |
ВИНТ (0.312-18 x 0.75) SCREW (.312-18 x.75) |
3 | |
| 25 | 17160 |
ЗВЕЗДОЧКА Crankshaft SPROCKET Crankshaft |
1 | superseded |
| 26 | 816565 |
ПРОБКА Колпачок (0.468) PLUG Cup (.468) |
1 | |
| 3 | 34897 |
ПРОКЛАДКА Water Pump GASKET Water Pump |
2 | |
| 4 | 865615Q11 |
BELT BELT |
1 | |
| 5 | 8M0076418 |
ШПИЛЬКА STUD |
2 | |
| 6 | 32132 |
ВИНТ (0.375-16 x 1.750) SCREW (.375-16 x 1.750) |
3 | |
| 6 | 47688 |
ВИНТ (0.375-16 x 2.750) SCREW (.375-16 x 2.750) |
1 | |
| 7 | 807729T |
ШКИВ Water Pump PULLEY Water Pump |
1 | superseded |
| 8 | 47277 |
ВИНТ (0.312-24 x 0.750) SCREW (.312-24 x .750) |
4 | |
| 9 | 864297T01 |
ДАТЧИК В СБОРЕ Crankshaft Position SENSOR ASSEMBLY Crankshaft Position |
1 |
