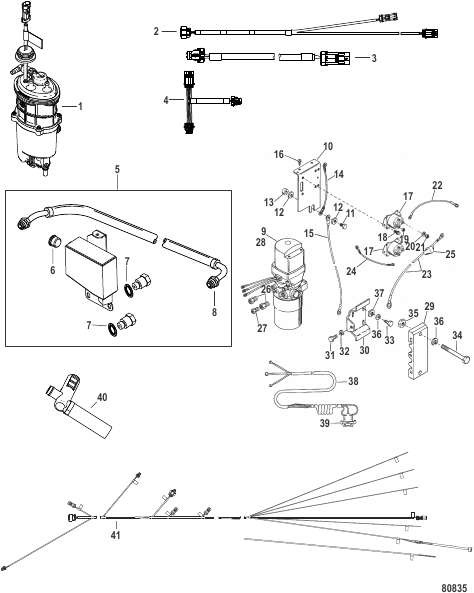

| # | Part Number | Description | Qty | Status |
|---|
| - |
87762A04 |
BRACKET ASSEMBLY Trim Pump Mounting
|
1 |
|
| 1 |
8M0176311 |
FUEL PUMP ASSEMBLY
|
1 |
|
| 10 |
818567 |
BRACKET
|
1 |
|
| 11 |
38837 |
SCREW (.312-18 x 1.12)
|
1 |
|
| 12 |
57792 |
WASHER
|
2 |
|
| 13 |
34948 |
SPACER
|
1 |
|
| 14 |
65999A12 |
CABLE ASSEMBLY Ground
|
1 |
|
| 15 |
79138A9 |
CABLE ASSEMBLY (6.00 Feet) Black-Negative
|
1 |
|
| 16 |
92051 |
SCREW (10-16 x .75)
|
1 |
|
| 17 |
853654T02 |
SOLENOID
|
2 |
|
| 18 |
41508 |
SCREW (.250-20 x .500) Stainless Steel
|
4 |
|
| 19 |
20110 |
NUT (#10-32)
|
4 |
|
| 2 |
8M0172100 |
HARNESS Foot Throttle
|
1 |
|
| 20 |
22753 |
WASHER
|
4 |
|
| 21 |
8M0204646 |
NUT (.312-18)
|
4 |
|
| 22 |
65999A11 |
CABLE ASSEMBLY
|
1 |
|
| 23 |
79139A27 |
CABLE ASSEMBLY Battery
|
1 |
|
| 24 |
79139A26 |
CABLE ASSEMBLY Red
|
1 |
|
| 25 |
46265 |
BOOT
|
3 |
|
| 26 |
77366 |
FITTING
|
2 |
|
| 27 |
38609 |
PLUG
|
1 |
|
| 28 |
818377A2 |
PUMP KIT Hydraulic Trim (In/Out)
|
1 |
|
| 29 |
87762 |
BRACKET
|
1 |
|
| 3 |
8M0172101 |
HARNESS EXTENSION Fuel Pump
|
1 |
|
| 30 |
87760T |
MOUNTING PLATE
|
1 |
|
| 31 |
39349 |
SCREW (.312-18 x .750) Stainless Steel
|
1 |
|
| 32 |
8M0204647 |
LOCKWASHER (.312)
|
1 |
|
| 33 |
90271 |
SCREW (.375-16 x .62)
|
2 |
|
| 34 |
63826 |
SCREW (.375-16 x 2.50)
|
2 |
|
| 35 |
82670912 |
NUT (.375-16) Stainless Steel
|
2 |
|
| 36 |
58643 |
LOCKWASHER (.375)
|
2 |
|
| 37 |
8M0214963 |
WASHER
|
4 |
|
| 38 |
NSS |
NOT SOLD SEPARATE Trim Harness Assembly
|
1 |
|
| 39 |
NSS |
NOT SOLD SEPARATE Switch
|
1 |
|
| 4 |
8M0172102 |
HARNESS Start/Stop
|
1 |
|
| 40 |
8M0183111 |
ROLLOVER VALVE KIT
|
1 |
|
| 41 |
8M0240049 |
HARNESS Vessel
|
1 |
|
| 5 |
8M0179744 |
EXPANSION BOTTLE KIT Gearcase
|
1 |
|
| 6 |
8M0087451 |
PLUG (18MM)
|
1 |
|
| 7 |
8M0204693 |
SEAL Drain Plug
|
2 |
|
| 8 |
86036Q |
HOSE
|
1 |
|
| 9 |
818611A2 |
PUMP KIT Hydraulic Trim (Up/Down)
|
1 |
|
| NS |
8M0225356 |
CLAMP KIT Complete
|
1 |
|
