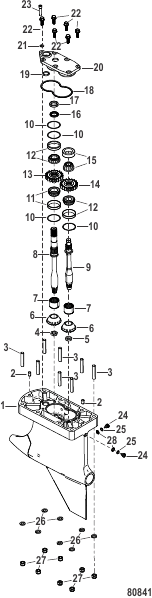

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0176563 |
GEAR HOUSING ASSEMBLY
|
1 |
|
| 10 |
8M0063268 |
SHIM SET
|
1 |
|
| 11 |
38680T01 |
BEARING Cup/Cone
|
1 |
|
| 12 |
38678T01 |
BEARING Cup/Cone
|
2 |
|
| 13 |
8M0050949 |
GEAR Counter Rotation
|
1 |
|
| 14 |
86640 |
GEAR Standard Rotation
|
1 |
|
| 15 |
38681A1 |
BEARING ASSEMBLY
|
1 |
|
| 16 |
16977 |
SEAL Oil
|
1 |
|
| 17 |
8M0176564 |
SEAL Oil
|
1 |
|
| 18 |
39695 |
O-RING
|
1 |
|
| 19 |
35276 |
O-RING (.734 x .139)
|
1 |
|
| 2 |
822107 |
PIN Dowel
|
2 |
|
| 20 |
8M0183069 |
COVER Bearing Plate
|
1 |
|
| 21 |
843108 |
WASHER (.330 x .560 x .060) Stainless Steel
|
1 |
|
| 22 |
812618 |
SCREW (.312-18 x 1.00) Stainless Steel With Nylon Patch
|
6 |
|
| 23 |
8M0183073 |
SCREW
|
1 |
|
| 24 |
14834A3 |
PLUG ASSEMBLY Drain - Magnetic
|
2 |
|
| 25 |
8M0204684 |
O-RING Rubber
|
1 |
|
| 26 |
822836 |
WASHER (.445 x .805 x .108)
|
8 |
|
| 27 |
82670815 |
NUT (.437-20)
|
8 |
|
| 28 |
8M0204693 |
SEAL Drain Plug
|
2 |
|
| 3 |
822118 |
STUD (.437 x 2.500)
|
8 |
|
| 4 |
35921 |
NUT (.625-18)
|
1 |
|
| 5 |
818932 |
NUT Left Hand
|
1 |
|
| 6 |
818931A2 |
GEAR SET
|
1 |
|
| 7 |
8M0051196 |
BEARING Roller
|
2 |
|
| 8 |
8M0183067 |
SHAFT Drive
|
1 |
|
| 9 |
8M0074006 |
SHAFT Driven
|
1 |
|
