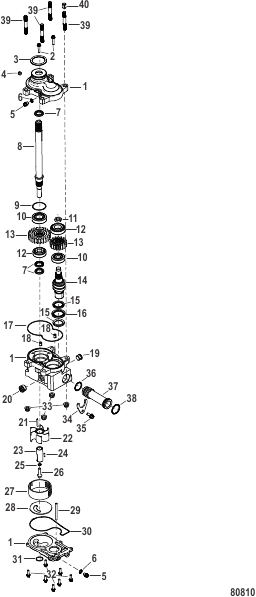

Overdrive Components
Parts (49)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0183119 |
OVERDRIVE ASSEMBLY 17/23 OVERDRIVE ASSEMBLY 17/23 |
AR | |
| - | 8M0187217 |
OVERDRIVE ASSEMBLY 18/22 OVERDRIVE ASSEMBLY 18/22 |
1 | |
| - | 8M0183120 |
OVERDRIVE ASSEMBLY 22/28 OVERDRIVE ASSEMBLY 22/28 |
AR | |
| - | 8M0183121 |
OVERDRIVE ASSEMBLY 25/35 OVERDRIVE ASSEMBLY 25/35 |
AR | |
| - | 8M0187220 |
OVERDRIVE ASSEMBLY 26/34 OVERDRIVE ASSEMBLY 26/34 |
AR | |
| 1 | 8M0176565 |
GEAR HOUSING ASSEMBLY GEAR HOUSING ASSEMBLY |
1 | |
| 10 | 8M0183115 |
BEARING Taper BEARING Taper |
2 | |
| 11 | 8M0071654 |
ГАЙКА (0.625-18, ШЕСТИГР.) NUT (.625-18 HX) |
1 | |
| 12 | 8M0183116 |
BEARING BEARING |
2 | |
| 13 | 8M0174316 |
GEAR SET 17/23 GEAR SET 17/23 |
AR | |
| 13 | 8M0174319 |
GEAR SET 18/22 GEAR SET 18/22 |
1 | |
| 13 | 8M0174318 |
GEAR SET 22/28 GEAR SET 22/28 |
AR | |
| 13 | 8M0174317 |
GEAR SET 25/35 GEAR SET 25/35 |
AR | |
| 13 | 8M0187214 |
GEAR SET 26/34 GEAR SET 26/34 |
AR | |
| 14 | 8M0181977 |
SHAFT Output SHAFT Output |
1 | |
| 15 | 8M0240446 |
SEAL Water SEAL Water |
2 | |
| 16 | 8M0207365 |
SPACER SPACER |
1 | |
| 17 | 8M0183071 |
O-RING O-RING |
1 | |
| 18 | 892228 |
ШТИФТ Штифт PIN Dowel |
2 | |
| 19 | 8M0087451 |
ПРОБКА (18 ММ) PLUG (18MM) |
1 | |
| 2 | 8M0103808 |
ВИНТ (M6 x 30 ММ), нержавеющая сталь SCREW (M6 x 30 mm) Stainless Steel |
2 | |
| 20 | 8M0000696 |
УЗЕЛ ПРОБКИ Магнитный PLUG ASSEMBLY Magnetic |
1 | |
| 21 | 8M0204723 |
KEY KEY |
1 | |
| 22 | 43026T2 |
КРЫЛЬЧАТКА IMPELLER |
1 | |
| 23 | 8M0183063 |
SPACER SPACER |
1 | |
| 24 | 8M0183064 |
PIN Dowel PIN Dowel |
1 | |
| 25 | 8M0204683 |
O-Ring (.070 x .301 ID) O-Ring (.070 x .301 ID) |
1 | |
| 26 | 8M0187121 |
SCREW Hex Flange M8 SCREW Hex Flange M8 |
1 | |
| 27 | 8M0183112 |
INSERT INSERT |
1 | |
| 28 | 8M0183065 |
PLATE PLATE |
1 | |
| 29 | 8M0183068 |
TUBE TUBE |
1 | |
| 3 | 8M6001577 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО M6 X 46 O-RING M6 X 46 |
1 | |
| 30 | 8M0183072 |
O-RING O-RING |
1 | |
| 31 | 62701 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 32 | 8M0103806 |
ВИНТ (M6 x 20 мм), нержавеющая сталь SCREW (M6 x 20 MM) Stainless Steel |
7 | |
| 33 | 8M0142743 |
ГАЙКА (M10 x 1.5) NUT (M10 x 1.5) |
4 | |
| 34 | 8M0144993 |
ФИКСАТОР RETAINER |
1 | |
| 35 | 88552620 |
ВИНТ (M8 x 20) SCREW (M8 x 20) |
1 | |
| 36 | 864701 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (1.112 x 0.103) O-RING (1.112 x .103) |
1 | |
| 37 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Water Tube NOT SOLD SEPARATE Water Tube |
1 | |
| 38 | 65936 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 39 | 854309 |
ШПИЛЬКА (M10 x 76) STUD (M10 x 76) |
4 | |
| 4 | 8M0087446 |
ПРОБКА (10 мм) PLUG (10 MM) |
1 | |
| 40 | 821327 |
ШТИФТ Штифт PIN Dowel |
1 | |
| 5 | 8M0240835 |
SCREW Special, .375-16 SCREW Special, .375-16 |
2 | |
| 6 | 8M0204693 |
SEAL Drain Plug SEAL Drain Plug |
2 | |
| 7 | 16977 |
УПЛОТНЕНИЕ Масло SEAL Oil |
3 | |
| 8 | 8M0181976 |
SHAFT Drive SHAFT Drive |
1 | |
| 9 | 8M0063268 |
НАБОР ПРОКЛАДОК SHIM SET |
1 |
