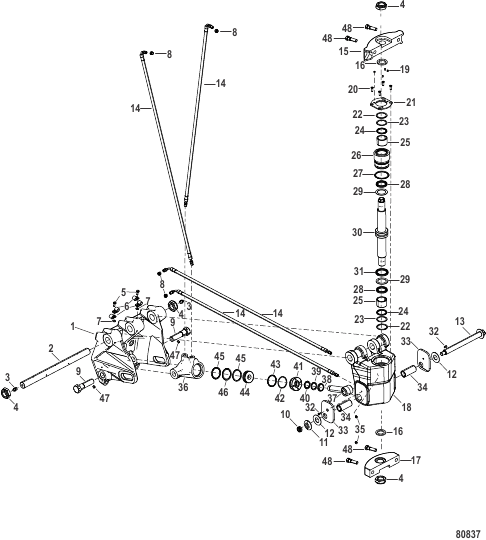

Swivel and Transom Bracket

Parts (52)

#Part NumberDescriptionQtyStatus
- 8M0176554 TRANSOM ASSEMBLY 1
- 11167A1 O-RING KIT Swivel Bracket AR
- 11163A1 REPAIR KIT Trim Cylinder AR
1 8M0176556   TRANSOM BRACKET 1
10 826709117   NUT (.500-20) Stainless Steel 1
11 822076   RETAINER 1
12 59378   WASHER 2
13 822075   PIN Trim 1
14 67032A36   HOSE Hydraulic 4
15 8M0183080   YOKE Top 1
16 8M0183074   WASHER 2
17 8M0183066   YOKE Bottom 1
18 8M0176555   SWIVEL BRACKET ASSEMBLY 1
19 8M0183100     SCREW 4
2 NSS   NOT SOLD SEPARATE Tilt Tube 1
20 8M0183103     SCREW 4
21 8M0183094     PLATE 1
22 798701     RING Retaining 2
23 79869     WASHER 2
24 NSS     NOT SOLD SEPARATE Scraper 2
25 NSS     NOT SOLD SEPARATE Bearing 2
26 NSS     NOT SOLD SEPARATE Guide 1
27 8M0183095     O-RING 1
28 NSS     NOT SOLD SEPARATE Quad Ring 2
29 8M0183099     WASHER Thrust 2
3 NSS   NOT SOLD SEPARATE Grease Fitting 2
30 8M0183070     ROD Swivel Bracket 1
31 NSS     NOT SOLD SEPARATE Quad Ring 1
32 822037     SCREW 2
33 441322     WEAR PAD 1
33 441321     WEAR PAD 1
34 NSS     NOT SOLD SEPARATE Bearing 2
35 822103     GREASE HOLE COVER 2
36 8M0183090   TRIM CYLINDER ASSEMBLY 1
37 8185162     TRIM ROD 1
38 NSS     NOT SOLD SEPARATE Wiper 1
39 NSS     NOT SOLD SEPARATE Backup Ring 1
4 826135   NUT Lock (1.00-14) Nylon Insert 4
40 NSS     NOT SOLD SEPARATE O-Ring 1
41 44123     RETAINER 1
42 NSS     NOT SOLD SEPARATE Backup RIng 1
43 NSS     NOT SOLD SEPARATE O-RIng 1
44 44125     PISTON Power Trim 1
45 NSS     NOT SOLD SEPARATE Backup RIng 2
46 11165     O-RING 1
47 822103     GREASE HOLE COVER 2
48 NSS NOT SOLD SEPARATE Screw, M12 x 60 4
5 77137   SCREW (.190-16 x .620) 2
6 848050   CLIP 4
7 24676   WASHER (.200 x .440 x .032) 2
8 68512   PLUG 4
9 44133   PIN 2
