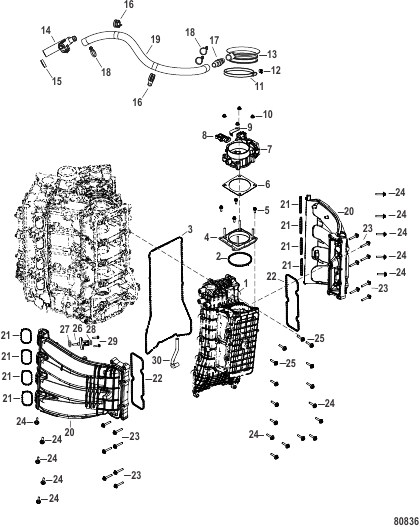

| # | Part Number | Description | Qty | Status |
|---|
| - |
NSS |
NOT SOLD SEPARATE Complete Long Block Assembly
|
1 |
|
| 1 |
8M0230993 |
BEDPLATE COVER Bedplate Cover
|
1 |
|
| 10 |
8M0227376 |
NUT (M6)
|
4 |
|
| 11 |
8M0142571 |
CLAMP (70-90 MM) 9 MM WIDE
|
1 |
|
| 12 |
8M0074363 |
CAP Cover, Hose Clamp
|
1 |
|
| 13 |
8M0183106 |
GROMMET Intake
|
1 |
|
| 14 |
8M0183111 |
ROLLOVER VALVE KIT
|
1 |
|
| 15 |
855228 |
CLAMP
|
1 |
|
| 16 |
843943 |
J CLIP
|
2 |
|
| 17 |
NSS |
NOT SOLD SEPARATE Coupler - Hose
|
1 |
|
| 18 |
816311T |
TIE STRAP (8.00 Inches)
|
3 |
|
| 19 |
NSS |
NOT SOLD SEPARATE Tubing
|
1 |
|
| 2 |
8M0231119 |
GASKET Throttle Body
|
1 |
|
| 20 |
8M0230991 |
MANIFOLD Intake Port
|
1 |
|
| 20 |
8M0230992 |
MANIFOLD Intake, Starboard
|
1 |
|
| 21 |
8M0231118 |
GASKET Intake Manifold
|
4 |
|
| 22 |
8M0231117 |
GASKET Runner to Plenum
|
1 |
|
| 23 |
8M0142553 |
SCREW (M6 x 37)
|
14 |
|
| 24 |
8M0142554 |
SCREW (M6 x 30)
|
10 |
|
| 25 |
8M0142555 |
SCREW (M6 x 30)
|
16 |
|
| 26 |
891663001 |
SENSOR Temperature
|
1 |
|
| 27 |
892317001 |
O-RING
|
1 |
|
| 28 |
8M0142578 |
GASKET MAT Sensor
|
1 |
|
| 29 |
895054 |
SCREW (M4 x 16 MM)
|
2 |
|
| 3 |
8M0230994 |
GASKET Crankcase Cover
|
1 |
|
| 30 |
8M0142551 |
HOSE MAP Sensor
|
1 |
|
| 4 |
8M0204942 |
ISOLATER
|
1 |
|
| 5 |
8M0103805 |
SCREW (M6 x 16mm) Stainless Steel
|
4 |
|
| 6 |
8M0142568 |
GASKET Throttle Body
|
1 |
|
| 7 |
8M0222235 |
THROTTLE BODY ASSEMBLY 64 MM
|
1 |
|
| 8 |
8M0142690 |
SENSOR MAP
|
1 |
|
| 9 |
8M0142550 |
BRACKET MAP Sensor
|
1 |
|
