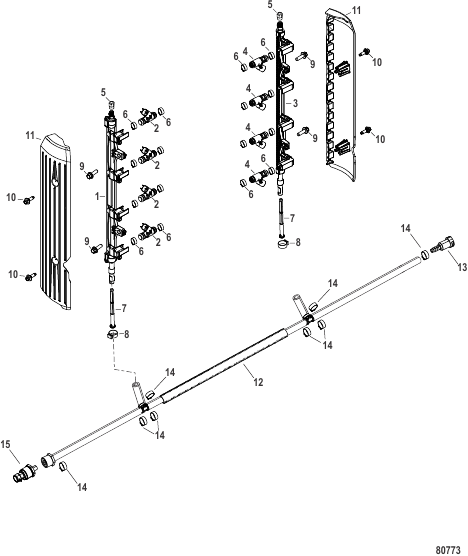

Fuel System
Parts (17)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Complete Long Block Assembly NOT SOLD SEPARATE Complete Long Block Assembly |
1 | |
| 1 | 8M0220616 |
FUEL RAIL Port FUEL RAIL Port |
1 | |
| 10 | 8M0005773 |
ВИНТ (M6) SCREW (M6 x 14) Shoulder HEX FLG SS |
4 | |
| 11 | 8M0142475 |
КРЫШКА Топливная направляющая, левый борт COVER Fuel Rail, Port |
1 | |
| 11 | 8M0142476 |
КРЫШКА Топливная направляющая, правый борт COVER Fuel Rail, Starboard |
1 | |
| 12 | 8M0183086 |
HOSE ASSEMBLY Fuel Supply HOSE ASSEMBLY Fuel Supply |
1 | |
| 13 | 8M6002065 |
ФИТИНГ 10 ММ FITTING 10MM |
1 | |
| 14 | 8M0157397 |
ЗАЖИМ Oetiker, 17,5 CLAMP Oetiker, 17.5 |
8 | |
| 15 | 8M0159600 |
SENSOR Pressure SENSOR Pressure |
1 | |
| 2 | 8M0142264 |
ТОПЛИВНАЯ ФОРСУНКА FUEL INJECTOR |
4 | |
| 3 | 8M0220615 |
FUEL RAIL Starboard FUEL RAIL Starboard |
1 | |
| 4 | 8M0142264 |
ТОПЛИВНАЯ ФОРСУНКА FUEL INJECTOR |
4 | |
| 5 | 8M0046566 |
ПРОБКА CAP Valve |
2 | |
| 6 | 8M0221321 |
ORING KIT Contains 6 upper and lower orings for injectors ORING KIT Contains 6 upper and lower orings for injectors |
1 | |
| 7 | 8M0090809 |
ФИЛЬТР SCREEN Fuel Rail |
2 | |
| 8 | 8M0142585 |
ЗАЖИМ CLAMP (16.2 x 7 x .6 MM) |
2 | |
| 9 | 8M0142830 |
ВИНТ (M6 x 20) SCREW (M6 x 20) |
4 |
