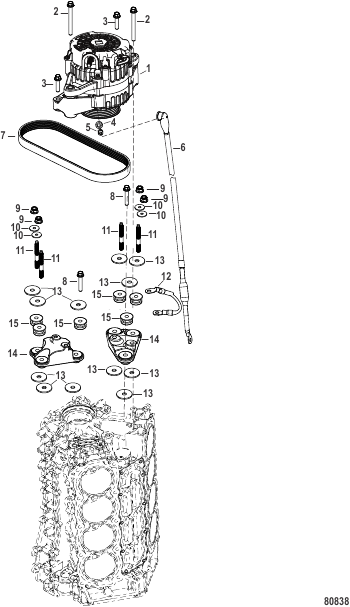

Starting System Alternator
Parts (16)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0205479 |
ALTERNATOR 85 AMP ALTERNATOR 85 AMP |
1 | |
| 10 | 8M0204690 |
WASHER (.344 x .688 x .065) Stainless Steel WASHER (.344 x .688 x .065) Stainless Steel |
4 | |
| 11 | 8M0022161 |
ШПИЛЬКА (M8 x 71,5) STUD (M8 x 71.5) |
4 | |
| 12 | 8M0142678 |
КАБЕЛЬ В СБОРЕ Заземление CABLE ASSEMBLY Ground |
1 | |
| 13 | 8M0142674 |
ШАЙБА Плоск. WASHER Plain |
12 | |
| 14 | 8M0142673 |
КРОНШТЕЙН Генератор Starboard BRACKET Alternator Starboard |
1 | |
| 14 | 8M0142672 |
КРОНШТЕЙН Генератор Port BRACKET Alternator Port |
1 | |
| 15 | 8M0183795 |
MOUNT CENTER MOUNT CENTER |
6 | |
| 2 | 8M0142677 |
ВИНТ (M8 x 85) SCREW (M8 x 85) |
2 | |
| 3 | 8M0142460 |
ВИНТ (M8 x 45) ШЕСТИГР. ФЛАНЕЦ SCREW (M8 x 45) Hex Flg |
2 | |
| 4 | 8M0151156 |
SPACER SPACER |
1 | |
| 5 | 401388 |
ГАЙКА (M8), нержавеющая сталь NUT (M8) Stainless Steel |
1 | |
| 6 | 8M0169564 |
CABLE ASSEMBLY Fuseable Link CABLE ASSEMBLY Fuseable Link |
1 | |
| 7 | 8M0218433 |
BELT BELT |
1 | |
| 8 | 8M0145100 |
ВИНТ Шестигранный фланец М8 SCREW M8 Hex Flange |
2 | |
| 9 | 826365 |
ГАЙКА (M8) NUT (M8) |
4 |
