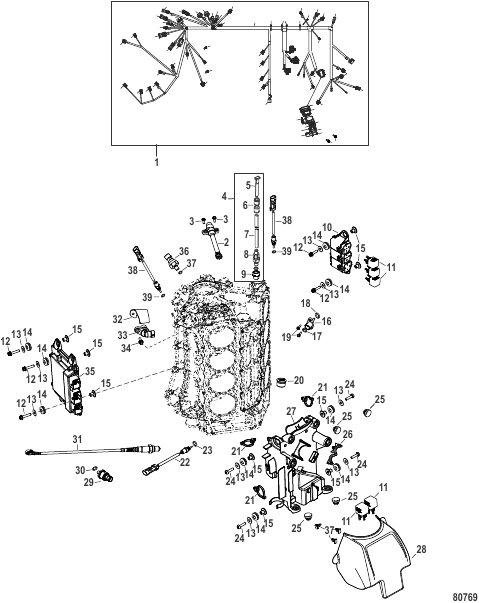

| # | Part Number | Description | Qty | Status |
|---|
| - |
NSS |
NOT SOLD SEPARATE Complete Long Block Assembly
|
1 |
|
| 1 |
8M0142259 |
ENGINE HARNESS Mechanical
|
1 |
|
| 10 |
8M0142684 |
RELAY HOUSING
|
1 |
|
| 11 |
8M0219829 |
CUBE RELAY
|
5 |
|
| 12 |
8M0103807 |
SCREW (M6 x 25 mm) Stainless Steel
|
5 |
|
| 13 |
65567 |
WASHER (.265 x .750 x .048) Stainless Steel
|
9 |
|
| 14 |
8M0190980 |
GROMMET
|
9 |
|
| 15 |
856954 |
BUSHING
|
9 |
|
| 16 |
891663001 |
SENSOR Temperature Intake Air
|
1 |
|
| 17 |
892317001 |
O-RING
|
1 |
|
| 18 |
8M0142578 |
GASKET MAT Sensor
|
1 |
|
| 19 |
895054 |
SCREW (M4 x 16 MM)
|
2 |
|
| 2 |
8M0082988 |
SENSOR Crankshaft Position
|
1 |
|
| 20 |
8M0087451 |
PLUG (18MM)
|
1 |
|
| 21 |
899145 |
CLIP Tie Strap
|
3 |
|
| 22 |
8M0161580 |
SENSOR Temperature Exhaust
|
1 |
|
| 23 |
896699 |
O-RING (1.78 mm x .08 mm)
|
1 |
|
| 24 |
8M0142686 |
SCREW (M6 x 25)
|
4 |
|
| 25 |
8M0096302 |
GROMMET
|
4 |
|
| 26 |
858954 |
CLIP (.625)
|
1 |
|
| 27 |
8M0153944 |
PLATE Electrical
|
1 |
|
| 28 |
8M0142479 |
COVER Electrical Plate
|
1 |
|
| 29 |
8M0159600 |
SENSOR Pressure Fuel
|
1 |
|
| 3 |
40011106 |
SCREW (M5 x 13) Stainless Steel
|
2 |
|
| 30 |
896699 |
O-RING (1.78 mm x .08 mm)
|
1 |
|
| 31 |
8M0142695 |
SENSOR Oxygen
|
1 |
|
| 32 |
8M0142691 |
BRACKET Cam Sensor
|
1 |
|
| 33 |
8M0233140 |
SENSOR Cam Position
|
1 |
|
| 34 |
8M0103806 |
SCREW (M6 x 20 MM) Stainless Steel
|
1 |
|
| 35 |
NSS |
NOT SOLD SEPARATE PCM- Contact Service
|
1 |
|
| 36 |
8M0142688 |
SENSOR Pressure (Oil/Water)
|
2 |
|
| 37 |
896699 |
O-RING (1.78 mm x .08 mm)
|
1 |
|
| 38 |
8M0205787 |
SENSOR Temperature Block Water Temperature, Oil Temperature
|
2 |
|
| 39 |
896699 |
O-RING (1.78 mm x .08 mm)
|
1 |
|
| 4 |
8M0145165 |
BLOCK WATER PRESSURE KIT Analog
|
1 |
|
| 5 |
859732 |
PLUG
|
1 |
|
| 6 |
8M0214971 |
COUPLER
|
1 |
|
| 7 |
85978571 |
TUBING (52.00 Inches Bulk)
|
1 |
|
| 8 |
896094A01 |
FITTING ASSEMBLY
|
1 |
|
| 9 |
8M0146147 |
CONNECTOR CAP 3 Pin
|
1 |
|
