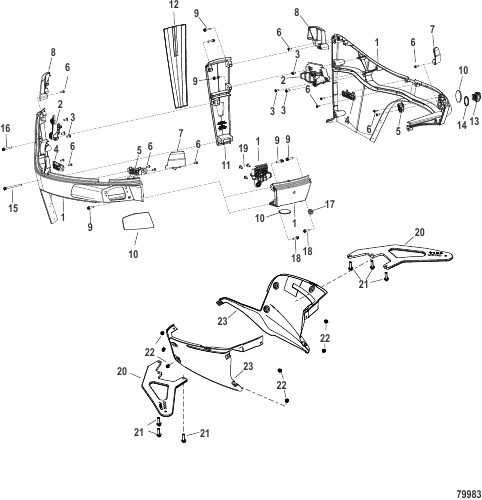

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0176570 |
LOWER COWL ASSEMBLY Trimmed
|
1 |
|
| 10 |
8M0183089 |
COVER KIT Disc/Plate
|
1 |
|
| 11 |
8M0142223 |
LOWER REAR COWL ASSEMBLY Black
|
1 |
|
| 12 |
8M0176572 |
ACCENT PANEL
|
1 |
|
| 13 |
8M0215105 |
PLUG Flush
|
1 |
|
| 14 |
8M0219168 |
TETHER Flush Plug
|
1 |
|
| 15 |
8M0230974 |
SCREW M6 x 85 HEX FLG
|
1 |
|
| 16 |
8M0230975 |
SCREW M6 x 40 HEX FLG
|
1 |
|
| 17 |
8M0096302 |
GROMMET
|
1 |
|
| 18 |
8M0230976 |
SCREW M6 x 20 HEX FLG SS BLK
|
2 |
|
| 19 |
8M0142921 |
SCREW (M6 X 16)
|
3 |
|
| 2 |
8M0142919 |
STRIKER ASSEMBLY Port
|
1 |
|
| 2 |
8M0142925 |
STRIKER ASSEMBLY Starboard
|
1 |
|
| 20 |
8M0176578 |
STEERING ARM Port
|
1 |
|
| 20 |
8M0176577 |
STEERING ARM Starboard
|
1 |
|
| 21 |
4010835 |
SCREW (M10 x 35) Hex Flange - Stainless Steel
|
6 |
|
| 22 |
8M0183113 |
FASTENER KIT DZUS
|
12 |
|
| 23 |
8M0176573 |
COVER Driveshaft Housing, Port
|
1 |
|
| 23 |
8M0176574 |
COVER Driveshaft Housing, Starboard
|
1 |
|
| 3 |
8M0142921 |
SCREW (M6 X 16)
|
6 |
|
| 4 |
8M0142923 |
RETAINER Rear, Port
|
1 |
|
| 4 |
8M0142930 |
RETAINER Rear, Starboard
|
1 |
|
| 5 |
8M0142922 |
RETAINER Front, Port
|
1 |
|
| 5 |
8M0142929 |
RETAINER Front, Starboard
|
1 |
|
| 6 |
8M0142918 |
SCREW (M5 x 12)
|
12 |
|
| 7 |
8M0142945 |
GUIDE Front, Port
|
1 |
|
| 7 |
8M0142944 |
GUIDE Front, Starboard
|
1 |
|
| 8 |
8M0142943 |
GUIDE Rear, Port
|
1 |
|
| 8 |
8M0142942 |
GUIDE Rear, Starboard
|
1 |
|
| 9 |
8M0230977 |
SCREW (M6 x 25 MM)
|
6 |
|
