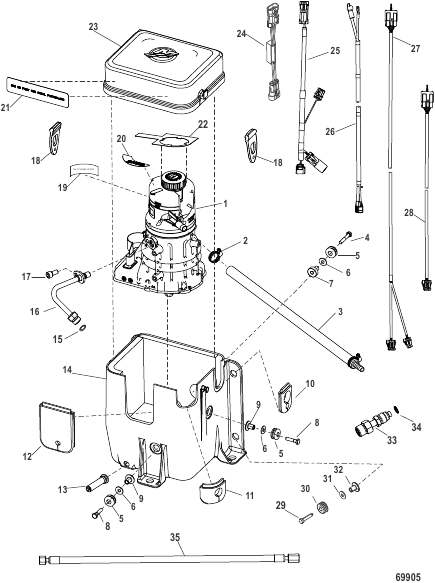

Pump-Power Steering Gen C
Parts (44)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0148159 |
POWER STEERING PUMP Gen C See SB 2020-04 POWER STEERING PUMP Gen C See SB 2020-04 |
1 | discontinued |
| - | 8M0164570 |
DECAL SET Power Steering Pump DECAL SET Power Steering Pump |
1 | |
| - | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Parts Bag NOT SOLD SEPARATE Parts Bag |
1 | |
| 1 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО PUMP NOT SOLD SEPARATE PUMP |
1 | |
| 10 | 893369 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | |
| 11 | 8M0164567 |
GROMMET Return Hose GROMMET Return Hose |
1 | |
| 12 | 8M0164566 |
GROMMET Pressure Hose GROMMET Pressure Hose |
1 | |
| 13 | 817519A2 |
ОБРАТНЫЙ КЛАПАН В СБОРЕ Слив CHECK VALVE ASSEMBLY Drain |
1 | |
| 14 | 8M0164565 |
ENCLOSURE ASSEMBLY Base, Power Steering Pump ENCLOSURE ASSEMBLY Base, Power Steering Pump |
1 | |
| 15 | 8M0047399 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 16 | 8M0164563 |
FITTING Pressure Assembly FITTING Pressure Assembly |
1 | |
| 17 | 4008916 |
ВИНТ (M8 x 16), нержавеющая сталь SCREW (M8 x 16) Stainless Steel |
1 | |
| 18 | 889531 |
СКОБА STRAP |
2 | |
| 19 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Decal - Pump Hyd NOT SOLD SEPARATE Decal - Pump Hyd |
1 | |
| 2 | 815504406 |
ЗАЖИМ Червячная передача CLAMP Worm Gear |
1 | |
| 20 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Decal - Reservoir NOT SOLD SEPARATE Decal - Reservoir |
1 | |
| 21 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Decal - Power Steering NOT SOLD SEPARATE Decal - Power Steering |
1 | |
| 22 | 8M0182612 |
TAG Reservoir Check Tool TAG Reservoir Check Tool |
1 | |
| 23 | 8M0164569 |
ENCLOSURE ASSEMBLY Cover, Power Steering Pump ENCLOSURE ASSEMBLY Cover, Power Steering Pump |
1 | |
| 24 | 8M0026568 |
ЖГУТ ПРОВОДОВ В СБОРЕ Генератор сигнала HARNESS ASSEMBLY Signal Driver |
1 | |
| 25 | 8M0164725 |
HARNESS Pump, CAN 3 HARNESS Pump, CAN 3 |
1 | |
| 26 | 8M0150103 |
POWER STEERING HARNESS Gen C Pump, 4 ft. POWER STEERING HARNESS Gen C Pump, 4 ft. |
1 | |
| 26 | 8M0150104 |
POWER STEERING HARNESS Gen C Pump, 12 ft. POWER STEERING HARNESS Gen C Pump, 12 ft. |
1 | |
| 26 | 8M0150105 |
POWER STEERING HARNESS Gen C Pump, 24 ft. POWER STEERING HARNESS Gen C Pump, 24 ft. |
1 | |
| 27 | 8M0150119 |
ЖГУТ ПРОВОДОВ Трос рулевого управления, 5 фут. HARNESS Steering Control, 10ft |
1 | |
| 27 | 8M0150463 |
ЖГУТ ПРОВОДОВ Трос рулевого управления, 20 фут. HARNESS Steering Control, 20ft |
1 | |
| 27 | 8M0150120 |
ЖГУТ ПРОВОДОВ Трос рулевого управления, 30 фут. HARNESS Steering Control, 30ft |
1 | |
| 28 | 8M0159929 |
ЖГУТ ПРОВОДОВ Трос рулевого управления, 5 фут. HARNESS EXTENSION Power Steering Signal, 5 ft |
AR | |
| 28 | 8M0159930 |
ЖГУТ ПРОВОДОВ Трос рулевого управления, 15 фут. HARNESS EXTENSION Power Steering Signal, 15 ft |
AR | |
| 28 | 8M0159931 |
ЖГУТ ПРОВОДОВ Трос рулевого управления, 25 фут. HARNESS EXTENSION Power Steering Signal, 25 ft |
AR | |
| 29 | 895378 |
ВИНТ (M6) SCREW (M6) |
4 | |
| 3 | 8M0164564 |
HOSE ASSEMBLY Reservoir HOSE ASSEMBLY Reservoir |
1 | discontinued |
| 30 | 895319 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
4 | |
| 31 | 4002316 |
ШАЙБА (6.60 X 17.0 X 1.5, нерж. сталь) WASHER (6.60 X 17.0 X 1.5SS) |
4 | superseded |
| 32 | 895320F1 |
ВТУЛКА BUSHING |
4 | |
| 33 | 8M0147795 |
HOSE ADAPTOR Male Saginaw-Flare to Male ORFS Use to connect Design I & II pressure hoses to pump 8M0148159 HOSE ADAPTOR Male Saginaw-Flare to Male ORFS Use to connect Design I & II pressure hoses to pump 8M0148159 |
AR | |
| 34 | 89879 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.301 x 0.064) O-RING (.301 x .064) |
1 | |
| 35 | 8M0152467 |
HOSE ADAPTOR 30 in. Female ORFS to Female Saginaw-Flare Use to connect Gen 2 pressure hoses to pump 8M0131261, 8M0131262, or 8M0131263 HOSE ADAPTOR 30 in. Female ORFS to Female Saginaw-Flare Use to connect Gen 2 pressure hoses to pump 8M0131261, 8M0131262, or 8M0131263 |
AR | |
| 4 | 4000332 |
ВИНТ (M6 x 35) SCREW (M6 x 35) |
1 | |
| 5 | 895319 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
3 | |
| 6 | 4002316 |
ШАЙБА (6.60 X 17.0 X 1.5, нерж. сталь) WASHER (6.60 X 17.0 X 1.5SS) |
3 | superseded |
| 7 | 8M0164568 |
BUSHING Compression Limiter BUSHING Compression Limiter |
1 | |
| 8 | 4000330 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
2 | superseded |
| 9 | 895320F1 |
ВТУЛКА BUSHING |
2 |
