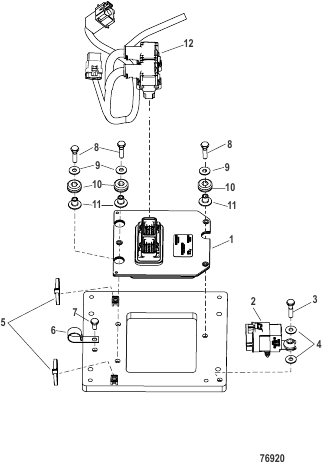

TVM Harness/Bracket Assembly V10
Parts (13)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0185450 |
HARNESS AND BRACKET ASSEMBLY TVM with Rig Center HARNESS AND BRACKET ASSEMBLY TVM with Rig Center |
1 | |
| 1 | 8M0165203 |
СЛУЖЕБНЫЙ МОДУЛЬ TVM Gen 2 JPO Use with Gen 2 steering/Gen C pump TVM SERVICE MODULE Gen 2 JPO Use with Gen 2 steering/Gen C pump |
1 | |
| 10 | 8349851 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
3 | |
| 11 | 856954 |
ВТУЛКА BUSHING |
3 | |
| 12 | 8M0219502 |
HARNESS TVM Rig Center HARNESS TVM Rig Center |
1 | |
| 2 | 8M0207772 |
RELAY RELAY |
1 | superseded |
| 3 | 76213 |
ВИНТ (0.250-20 x 1.120) SCREW (.250-20 x 1.120) |
1 | |
| 4 | 8M0214930 |
WASHER 6.60 x 17.0 x 1.5 WASHER 6.60 x 17.0 x 1.5 |
2 | |
| 5 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
2 | |
| 6 | 8M0024808 |
УГЛОВОЙ ЗАЖИМ J-CLIP |
1 | |
| 7 | 73286 |
ВИНТ (0.250-20 x 0.500), нержавеющая сталь SCREW (.250-20 x .500) Stainless Steel |
1 | |
| 8 | 28667 |
ВИНТ (0.250-20 x 1.00), нержавеющая сталь SCREW (.250-20 x 1.00) Stainless Steel |
3 | |
| 9 | 8M0214930 |
WASHER 6.60 x 17.0 x 1.5 WASHER 6.60 x 17.0 x 1.5 |
3 |
