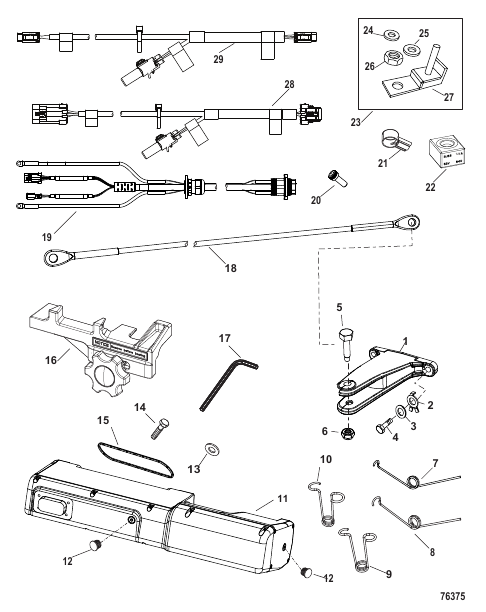

Actuator and Accessories
Parts (57)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0229782 |
HARDWARE KIT Extension Arm HARDWARE KIT Extension Arm |
1 | |
| - | 8M0207454 |
MOUNTING HARDWARE Actuator MOUNTING HARDWARE Actuator |
1 | |
| - | 8M0191734 |
HARNESS KIT Steering Actuator 5 ft HARNESS KIT Steering Actuator 5 ft |
AR | |
| - | 8M0191735 |
HARNESS KIT Steering Actuator 8 ft HARNESS KIT Steering Actuator 8 ft |
AR | |
| - | 8M0191736 |
HARNESS KIT Steering Actuator 12 ft HARNESS KIT Steering Actuator 12 ft |
AR | |
| 1 | 8M0157335 |
EXTENSION ARM KIT Joystick Piloting EXTENSION ARM KIT Joystick Piloting |
AR | |
| 10 | 8M6002440 |
ПРУЖИНА Торсион Used on Adjustable Length Link Cable -Center Engine SPRING Torsion Used on Adjustable Length Link Cable -Center Engine |
1 | |
| 11 | 8M6012144 |
ACTUATOR Electric Steering ACTUATOR Electric Steering |
1 | |
| 12 | 8M6013332 |
PLUG ORB Port PLUG ORB Port |
2 | |
| 13 | 8M0042642 |
ШАЙБА (0.323 x 0.562 x 0.063) WASHER (.323 x .562 x .063) |
4 | |
| 14 | 8M0187121 |
SCREW Hex Flange M8 SCREW Hex Flange M8 |
4 | |
| 15 | 8M0155530 |
SEAL Pedestal SEAL Pedestal |
1 | |
| 16 | 8M0199679 |
TRAILERING LOCK ASSEMBLY TRAILERING LOCK ASSEMBLY |
AR | |
| 17 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Allen Wrench 9/64" NOT SOLD SEPARATE Allen Wrench 9/64" |
1 | |
| 18 | 8M0109000 |
СОЕДИНИТЕЛЬНЫЙ КАБЕЛЬ Устройство предупреждения столкновения (регулируемое) 23" Quad Application Only LINK CABLE Anti-Collision (Adjustable) 23 Inch Quad Application Only |
AR | |
| 18 | 8M0108999 |
СОЕДИНИТЕЛЬНЫЙ КАБЕЛЬ Устройство предупреждения столкновения (регулируемое) 24" Quad Application Only LINK CABLE Anti-Collision (Adjustable) 24 Inch Quad Application Only |
AR | |
| 18 | 8M0079292 |
СОЕДИНИТЕЛЬНЫЙ КАБЕЛЬ Устройство предупреждения столкновения (регулируемое) 25" LINK CABLE Anti-Collision (Adjustable) 25 Inch |
AR | |
| 18 | 8M0079945 |
СОЕДИНИТЕЛЬНЫЙ КАБЕЛЬ Устройство предупреждения столкновения (регулируемое) 26" LINK CABLE Anti-Collision (Adjustable) 26 Inch |
AR | |
| 18 | 8M0077126 |
СОЕДИНИТЕЛЬНЫЙ КАБЕЛЬ Anti-Collision 26 Inch Center LINK CABLE 27 IN Anti-Collision 26 Inch Center |
AR | |
| 18 | 8M0077129 |
СОЕДИНИТЕЛЬНЫЙ КАБЕЛЬ Anti-Collision 27 Inch Center LINK CABLE 28 IN Anti-Collision 27 Inch Center |
AR | |
| 18 | 8M0077130 |
СОЕДИНИТЕЛЬНЫЙ КАБЕЛЬ Anti-Collision 28 Inch Center LINK CABLE 29 IN Anti-Collision 28 Inch Center |
AR | |
| 18 | 8M0077133 |
СОЕДИНИТЕЛЬНЫЙ КАБЕЛЬ Anti-Collision 29 Inch Center LINK CABLE 30 IN Anti-Collision 29 Inch Center |
AR | |
| 18 | 8M0077134 |
СОЕДИНИТЕЛЬНЫЙ КАБЕЛЬ Anti-Collision 30 Inch Center LINK CABLE 31 IN Anti-Collision 30 Inch Center |
AR | |
| 18 | 8M0077135 |
СОЕДИНИТЕЛЬНЫЙ КАБЕЛЬ Anti-Collision 31 Inch Center LINK CABLE 32 IN Anti-Collision 31 Inch Center |
AR | |
| 18 | 8M0077136 |
СОЕДИНИТЕЛЬНЫЙ КАБЕЛЬ Anti-Collision 32 Inch Center LINK CABLE 33 IN Anti-Collision 32 Inch Center |
AR | |
| 18 | 8M0077137 |
СОЕДИНИТЕЛЬНЫЙ КАБЕЛЬ Anti-Collision 33 Inch Center LINK CABLE 34 IN Anti-Collision 33 Inch Center |
AR | |
| 18 | 8M0077138 |
СОЕДИНИТЕЛЬНЫЙ КАБЕЛЬ Anti-Collision 34 Inch Center LINK CABLE 35 IN Anti-Collision 34 Inch Center |
AR | |
| 18 | 8M0077139 |
СОЕДИНИТЕЛЬНЫЙ КАБЕЛЬ Anti-Collision 35 Inch Center LINK CABLE 36 IN Anti-Collision 35 Inch Center |
AR | |
| 19 | 8M0205503 |
HARNESS Steering Actuator 5 ft HARNESS Steering Actuator 5 ft |
AR | |
| 19 | 8M0205504 |
HARNESS Steering Actuator 8 ft HARNESS Steering Actuator 8 ft |
AR | |
| 19 | 8M0205505 |
HARNESS Steering Actuator 12 ft HARNESS Steering Actuator 12 ft |
AR | |
| 2 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Tab Washer (10 mm) NOT SOLD SEPARATE Tab Washer (10 mm) |
2 | |
| 20 | 8M6012211 |
SCREW #8 x 7/16 SCREW #8 x 7/16 |
4 | |
| 21 | 8M0204731 |
CABLE BOOT CABLE BOOT |
1 | |
| 22 | 8M0129562 |
FUSE BLOCK 125 Amp - Green FUSE BLOCK 125 Amp - Green |
1 | |
| 23 | 8M0144608 |
КОМПЛЕКТ ДЕРЖАТЕЛЯ ПРЕДОХРАНИТЕЛЕЙ FUSE BAR HOLDER KIT |
1 | |
| 24 | 8M0204690 |
WASHER (.344 x .688 x .065) Stainless Steel WASHER (.344 x .688 x .065) Stainless Steel |
1 | |
| 25 | 8M0204647 |
LOCKWASHER (.312) LOCKWASHER (.312) |
1 | |
| 26 | 8M0146003 |
ГАЙКА M8 x 1,25 шестигран. NUT M8 x 1.25 Hex |
1 | |
| 27 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Fuse Bar Holder NOT SOLD SEPARATE Fuse Bar Holder |
1 | |
| 28 | 8M0191739 |
EXTENSION HARNESS 2 Pin 5 ft EXTENSION HARNESS 2 Pin 5 ft |
AR | |
| 28 | 8M0191740 |
EXTENSION HARNESS 2 Pin 10 ft EXTENSION HARNESS 2 Pin 10 ft |
AR | |
| 28 | 8M0191741 |
EXTENSION HARNESS 2 Pin 15 ft EXTENSION HARNESS 2 Pin 15 ft |
AR | |
| 28 | 8M0191742 |
EXTENSION HARNESS 2 Pin 20 ft EXTENSION HARNESS 2 Pin 20 ft |
AR | |
| 28 | 8M0193673 |
EXTENSION HARNESS 2 Pin 25 ft EXTENSION HARNESS 2 Pin 25 ft |
AR | |
| 29 | 8M0191743 |
EXTENSION HARNESS 3 Pin 5 ft EXTENSION HARNESS 3 Pin 5 ft |
AR | |
| 29 | 8M0191744 |
EXTENSION HARNESS 3 Pin 10 ft EXTENSION HARNESS 3 Pin 10 ft |
AR | |
| 29 | 8M0191745 |
EXTENSION HARNESS 3 Pin 15 ft EXTENSION HARNESS 3 Pin 15 ft |
AR | |
| 29 | 8M0191746 |
EXTENSION HARNESS 3 Pin 20 ft EXTENSION HARNESS 3 Pin 20 ft |
AR | |
| 29 | 8M0193672 |
EXTENSION HARNESS 3 Pin 25 ft EXTENSION HARNESS 3 Pin 25 ft |
AR | |
| 3 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Washer, (10 mm) NOT SOLD SEPARATE Washer, (10 mm) |
2 | |
| 4 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw (M10 1.5 HEX HD Cap, SS) NOT SOLD SEPARATE Screw (M10 1.5 HEX HD Cap, SS) |
2 | |
| 5 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Screw M10 x 1.5 HEX HD) NOT SOLD SEPARATE Screw M10 x 1.5 HEX HD) |
1 | |
| 6 | NSS |
НЕ ПРОДАЕТСЯ ОТДЕЛЬНО Nut (JAM M10 HEX) NOT SOLD SEPARATE Nut (JAM M10 HEX) |
1 | |
| 7 | 8M6002058 |
ПРУЖИНА Торсион Used on Fixed Length Link Cables-Outside Engines SPRING Torsion Used on Fixed Length Link Cables-Outside Engines |
2 | |
| 8 | 8M6002439 |
ПРУЖИНА Торсион Used on Adjustable Length Link Cable -Outside Engine SPRING Torsion Used on Adjustable Length Link Cable -Outside Engine |
2 | |
| 9 | 8M6002059 |
ПРУЖИНА Торсион Used on Fixed Length Link Cables-Center Engine SPRING Torsion Used on Fixed Length Link Cables-Center Engine |
2 |
