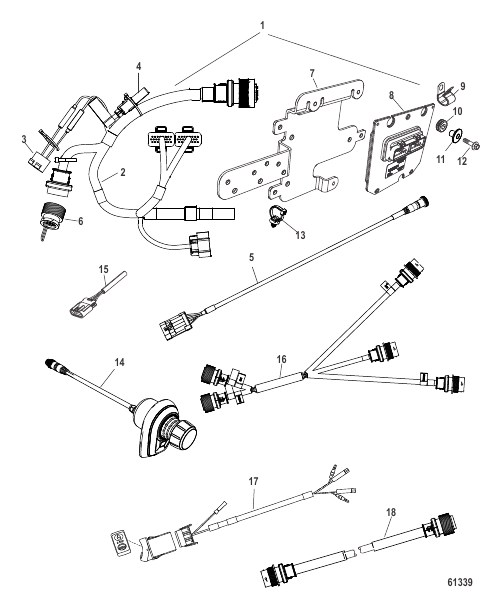

Auxiliary Joystick Station Main / Secondary
Parts (25)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0115487 |
КОМПЛЕКТ ВСПОМОГАТЕЛЬНОГО ДЖОЙСТИКА Главный и второстепенный AUXILIARY JOYSTICK KIT Primary/Secondary |
1 | discontinued |
| 1 | 8M0115489 |
ЖГУТ ПРОВОДОВ И КРОНШТЕЙН В СБОРЕ с программой HARNESS AND BRACKET ASSEMBLY with Program |
1 | |
| 10 | 834985 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
3 | superseded |
| 11 | 856954 |
ВТУЛКА BUSHING |
3 | |
| 12 | 82130025 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
3 | |
| 13 | 899145 |
ЗАЖИМ Ленточный хомут CLIP Tie Strap |
1 | |
| 14 | 8M6004734 |
ВСПОМОГАТЕЛЬНЫЙ ДЖОЙСТИК В СБОРЕ See Auxiliary Joystick Assembly Section for Parts Breakdown AUXILIARY JOYSTICK ASSEMBLY See Auxiliary Joystick Assembly Section for Parts Breakdown |
1 | |
| 15 | 898091T01 |
РЕЗИСТОР В СБОРЕ № 93 – режим мертвой зоны DTS RESISTOR ASSEMBLY #93 - DTS Shadow Mode |
1 | |
| 15 | 898091T02 |
РЕЗИСТОР В СБОРЕ №94 режим мертвой зоны DTS Order Separate RESISTOR ASSEMBLY #94 DTS Shadow Mode Order Separate |
AR | |
| 16 | 8M2800014 |
ПЕРЕХОДНОЙ ЖГУТ 5-сторонний ADAPTER HARNESS 5 Way |
1 | |
| 17 | 8M6000699 |
ЖГУТ ПРОВОДОВ E-Stop HARNESS E-Stop |
1 | |
| 18 | 8M0131370 |
HARNESS ASSEMBLY Wiring, 14 Pin (10 Feet) HARNESS ASSEMBLY Wiring, 14 Pin (10 Feet) |
AR | discontinued |
| 18 | 8M0131372 |
HARNESS ASSEMBLY Wiring, 14 Pin (20 Feet) HARNESS ASSEMBLY Wiring, 14 Pin (20 Feet) |
AR | discontinued |
| 18 | 8M0131374 |
HARNESS ASSEMBLY Wiring, 14 Pin (30 Feet) HARNESS ASSEMBLY Wiring, 14 Pin (30 Feet) |
AR | discontinued |
| 18 | 8M0131376 |
HARNESS ASSEMBLY Wiring, 14 Pin (40 Feet) HARNESS ASSEMBLY Wiring, 14 Pin (40 Feet) |
AR | discontinued |
| 18 | 8M0131378 |
HARNESS ASSEMBLY Wiring, 14 Pin (50 Feet) HARNESS ASSEMBLY Wiring, 14 Pin (50 Feet) |
AR | discontinued |
| 18 | 8M0131380 |
HARNESS ASSEMBLY Wiring, 14 Pin (60 Feet) HARNESS ASSEMBLY Wiring, 14 Pin (60 Feet) |
AR | discontinued |
| 2 | 8M0119604 |
ЖГУТ ПРОВОДОВ Дистанционный джойстик HARNESS Remote Joystick |
1 | discontinued |
| 3 | 816492A9 |
КОМПЛЕКТ ПРЕДУПРЕЖДАЮЩЕГО ЗВУКОВОГО СИГНАЛА WARNING HORN KIT |
1 | |
| 4 | 8M0048066 |
ОТФОРМОВАННЫЙ РЕЗИСТОР В СБОРЕ OVERMOLD RESISTOR ASSEMBLY |
1 | discontinued |
| 5 | 8M0120136 |
ЖГУТ ПРОВОДОВ Переходник CAN H HARNESS Adapter CAN H |
1 | |
| 6 | 8M2800016 |
ЖГУТ ПРОВОДОВ Обратная петля на 14 контактов – гнездо HARNESS Loopback 14 pin -Female |
1 | discontinued |
| 7 | 879150T43 |
КРОНШТЕЙН BRACKET |
1 | |
| 8 | 8M0119603 |
МОДУЛЬ CCM с программой CCM MODULE with Program |
1 | |
| 9 | 859172 |
ЗАЖИМ CLAMP |
2 |
