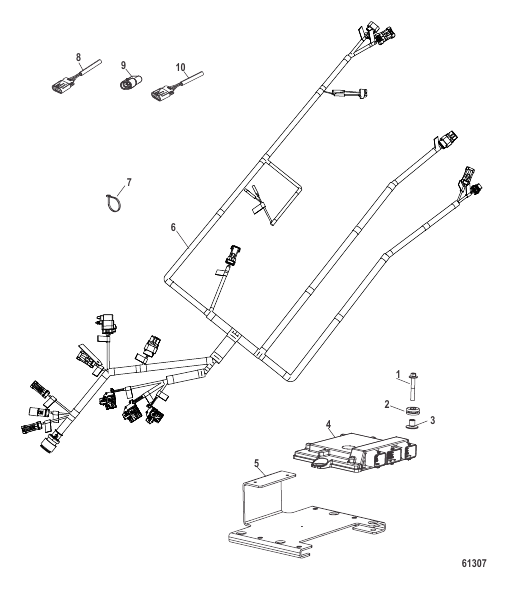

Harness and Bracket Assembly Triple Engine
Parts (12)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0158673 |
HARNESS AND BRACKET ASSEMBLY Triple Engine HARNESS AND BRACKET ASSEMBLY Triple Engine |
1 | |
| 1 | 82130025 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
3 | |
| 10 | 898091T03 |
РЕЗИСТОР В СБОРЕ № 97 (Штурвал-2, правый борт-2) RESISTOR ASSEMBLY #97 (Helm 2-Starboard 2) |
1 | |
| 2 | 8349851 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
3 | |
| 3 | 856954 |
ВТУЛКА BUSHING |
3 | |
| 4 | 8M0158675 |
CCM19 SERVICE MODULE JPO CCM19 SERVICE MODULE JPO |
1 | |
| 5 | 8M0056174 |
КРОНШТЕЙН BRACKET |
1 | discontinued |
| 6 | 8M0076450 |
ЖГУТ ПРОВОДОВ – ШТУРВАЛ HARNESS-HELM |
1 | |
| 7 | 816311T |
ЛЕНТОЧНЫЙ ХОМУТ (8.00") TIE STRAP (8.00 Inches) |
3 | |
| 8 | 898091T01 |
РЕЗИСТОР В СБОРЕ № 93 – режим мертвой зоны DTS Center RESISTOR ASSEMBLY #93 - DTS Shadow Mode Center |
1 | |
| 9 | 893388A01 |
ПРОБКА Резистор 2 вывода, 120 Ом (CAN 1, 2 и 3) CAP Resistor - 2 Pin, 120 Ohm (CAN 1, 2 and 3) |
2 | |
| NS | 8M0158669 |
HARNESS AND BRACKET ASSEMBLY Dual Engine (See Harness and Bracket Assembly Dual for Parts Breakdown) HARNESS AND BRACKET ASSEMBLY Dual Engine (See Harness and Bracket Assembly Dual for Parts Breakdown) |
AR |
