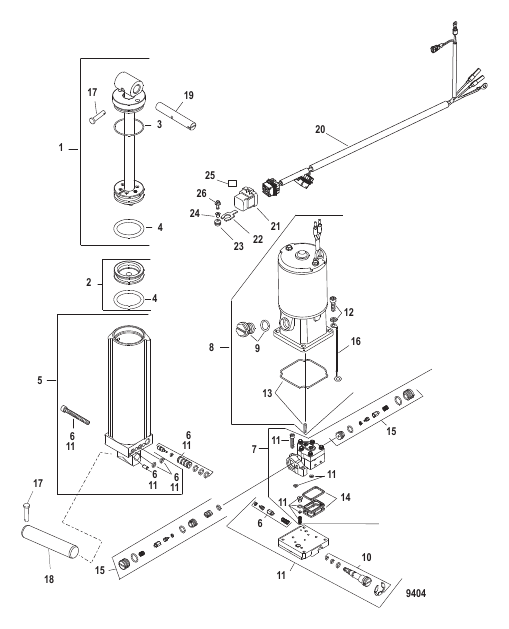

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0055006 |
POWER TRIM KIT
|
1 |
|
| - |
8M0089947 |
O-RING KIT Power Trim
|
1 |
superseded
|
| 1 |
893943A01 |
SHOCK ROD KIT
|
1 |
|
| 10 |
893929A01 |
VALVE KIT Relief
|
1 |
|
| 11 |
8M0055018 |
MANIFOLD KIT
|
1 |
|
| 12 |
809876A1 |
SCREW KIT Motor
|
1 |
|
| 13 |
809877A1 |
DRIVESHAFT/SEAL KIT
|
1 |
|
| 14 |
893912A02 |
FILTER KIT
|
1 |
|
| 15 |
893913A02 |
POPPET KIT
|
1 |
|
| 16 |
88238A18 |
CABLE ASSEMBLY
|
1 |
|
| 17 |
821539 |
PIN Trilobe
|
2 |
|
| 18 |
19607 |
PIN
|
1 |
|
| 19 |
822869001 |
PIN Anchor
|
1 |
|
| 2 |
810776A1 |
PISTON ASSEMBLY Memory
|
1 |
superseded
|
| 20 |
826802T35 |
HARNESS ASSEMBLY Trim
|
1 |
|
| 21 |
882751A1 |
RELAY ASSEMBLY
|
2 |
superseded
|
| 22 |
828102 |
BRACKET
|
2 |
superseded
|
| 23 |
818967 |
GROMMET
|
2 |
|
| 24 |
818968 |
BUSHING
|
2 |
superseded
|
| 25 |
NSS |
NOT SOLD SEPARATE Decal-Trim Relay
|
2 |
|
| 26 |
82129125 |
SCREW (M6 x 25 MM)
|
2 |
|
| 3 |
893902A01 |
O-RING KIT
|
1 |
superseded
|
| 4 |
NSS |
NOT SOLD SEPARATE O Ring
|
2 |
|
| 5 |
8M0055016 |
TRIM CYLINDER ASSEMBLY KIT
|
1 |
|
| 6 |
8M0090404 |
VALVE KIT Trim Limit
|
1 |
|
| 7 |
8M0055019 |
POWER TRIM PUMP KIT
|
1 |
|
| 8 |
893907A02 |
MOTOR KIT
|
1 |
|
| 9 |
8134351 |
PLUG
|
1 |
|
