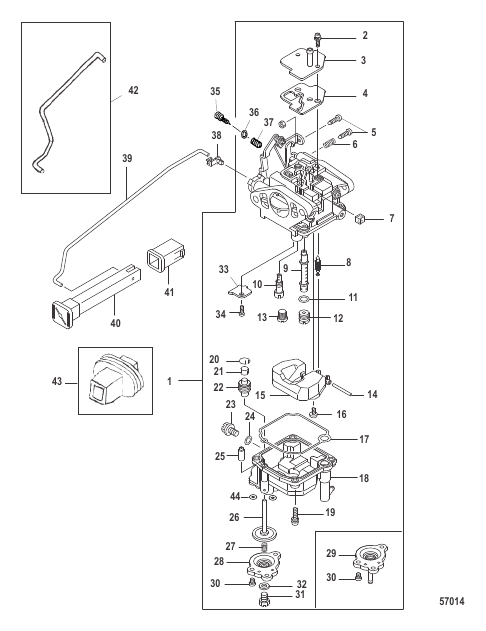

Carburetor 0R676745 and Below
Parts (87)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 8M0044576 |
КОМПЛЕКТ Ремонт карб. 8/9.9 KIT Carb Repair 8/9.9 |
1 | |
| 1 | 895110T01 |
КАРБЮРАТОР 9.9 Handle (EPA) [0R042475] THRU [0R068397] CARBURETOR 9.9 Handle (EPA) [0R042475] THRU [0R068397] |
1 | superseded |
| 1 | 895110T11 |
КАРБЮРАТОР 9.9 Handle (EPA) [0R068398] & Up CARBURETOR 9.9 Handle (EPA) [0R068398] & Up |
1 | discontinued |
| 1 | 895110A03 |
КАРБЮРАТОР 9.9 Handle (Bodensee) [0P325500] THRU [0P339734] CARBURETOR 9.9 Handle (Bodensee) [0P325500] THRU [0P339734] |
1 | superseded |
| 1 | 895110A13 |
КАРБЮРАТОР 9.9 Handle (Bodensee) [0P339735] & Up CARBURETOR 9.9 Handle (Bodensee) [0P339735] & Up |
1 | superseded |
| 1 | 895110A18 |
КАРБЮРАТОР 9.9 Handle EU [0P404258] & Below CARBURETOR 9.9 Handle EU [0P404258] & Below |
1 | superseded |
| 1 | 895110T15 |
КАРБЮРАТОР 9.9 Handle EU [0P404259] & Up CARBURETOR 9.9 Handle EU [0P404259] & Up |
1 | discontinued |
| 1 | 895110T02 |
КАРБЮРАТОР 9.9 Remote [0R042475] THRU [0R068397] CARBURETOR 9.9 Remote [0R042475] THRU [0R068397] |
1 | superseded |
| 1 | 895110T12 |
КАРБЮРАТОР 9.9 Remote [0R068398] & Up CARBURETOR 9.9 Remote [0R068398] & Up |
1 | superseded |
| 1 | 895110A04 |
КАРБЮРАТОР 9.9 Remote Control [0P325500] THRU [0P400999] CARBURETOR 9.9 Remote Control [0P325500] THRU [0P400999] |
1 | superseded |
| 1 | 895110A14 |
КАРБЮРАТОР 9.9 Remote Control [0P401000] & Up CARBURETOR 9.9 Remote Control [0P401000] & Up |
1 | superseded |
| 1 | 895110A19 |
КАРБЮРАТОР 9.9 Remote Control EU [0P404258] & Below CARBURETOR 9.9 Remote Control EU [0P404258] & Below |
1 | superseded |
| 1 | 895110A16 |
КАРБЮРАТОР 9.9 Remote Control EU [0P404259] & Up CARBURETOR 9.9 Remote Control EU [0P404259] & Up |
1 | superseded |
| 1 | 895111T01 |
КАРБЮРАТОР 8 Handle [0R042475] THRU [0R068397] CARBURETOR 8 Handle [0R042475] THRU [0R068397] |
1 | superseded |
| 1 | 895111T05 |
КАРБЮРАТОР 8 Handle [0R068398] & Up CARBURETOR 8 Handle [0R068398] & Up |
1 | discontinued |
| 1 | 895111A02 |
КАРБЮРАТОР 8 Handle-Bodensee [0P325500] THRU [0P400999] CARBURETOR 8 Handle-Bodensee [0P325500] THRU [0P400999] |
1 | superseded |
| 1 | 895111A06 |
КАРБЮРАТОР 8 Handle-Bodensee [0P401000] & Up CARBURETOR 8 Handle-Bodensee [0P401000] & Up |
1 | discontinued |
| 1 | 895111A03 |
КАРБЮРАТОР 8 Remote-Bodensee [0P325500] THRU [0P400999] CARBURETOR 8 Remote-Bodensee [0P325500] THRU [0P400999] |
1 | superseded |
| 1 | 895111A07 |
КАРБЮРАТОР 8 Remote-Bodensee [0P401000] & Up CARBURETOR 8 Remote-Bodensee [0P401000] & Up |
1 | discontinued |
| 1 | 895111A04 |
КАРБЮРАТОР 8 Handle [0P370093] & Below CARBURETOR 8 Handle [0P370093] & Below |
1 | superseded |
| 1 | 895111A08 |
КАРБЮРАТОР 8 Handle [0P370094] & Up CARBURETOR 8 Handle [0P370094] & Up |
1 | superseded |
| 10 | 803689003 |
ВОДОМЕТНЫЙ Пилотный клапан (№39) JET Pilot (#39) |
1 | |
| 10 | 803689006 |
ВОДОМЕТНЫЙ Пилотный клапан (№37) Bodensee JET Pilot (#37) Bodensee |
1 | |
| 10 | 803689003 |
ВОДОМЕТНЫЙ Пилотный клапан (№39) 9.9 EU [0P404258] & Below JET Pilot (#39) 9.9 EU [0P404258] & Below |
1 | |
| 10 | 803689007 |
ВОДОМЕТНЫЙ Пилотный клапан (№40) 9.9 EU [0P404259] & Up JET Pilot (#40) 9.9 EU [0P404259] & Up |
1 | |
| 11 | 825057004 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 12 | 802701004 |
ВОДОМЕТНЫЙ Главн. (№92) 9.9 JET Main (#92) 9.9 |
1 | superseded |
| 12 | 802701004 |
ВОДОМЕТНЫЙ Главн. (№92) 9.9 EU [0P404258] & Below JET Main (#92) 9.9 EU [0P404258] & Below |
1 | superseded |
| 12 | 802701009 |
ВОДОМЕТНЫЙ Главн. (№93) 9.9 EU [0P404259] & Up JET Main (#93) 9.9 EU [0P404259] & Up |
1 | |
| 12 | 802701005 |
ВОДОМЕТНЫЙ Главн. (№76) 8 JET Main (#76) 8 |
1 | |
| 12 | 802701008 |
ВОДОМЕТНЫЙ Главн. (№71) 8 Bodensee JET Main (#71) 8 Bodensee |
1 | |
| 13 | 802702001 |
ПРОБКА 9.9 [USA-0R068397/BEL-0P404258] & Below PLUG 9.9 [USA-0R068397/BEL-0P404258] & Below |
1 | |
| 13 | 802702002 |
ПРОБКА 9.9 [USA-0R068398/BEL-0P404259] & Up PLUG 9.9 [USA-0R068398/BEL-0P404259] & Up |
1 | |
| 13 | 802702002 |
ПРОБКА 8 PLUG 8 |
1 | |
| 14 | 162561 |
ШТИФТ Float Arm PIN Float Arm |
1 | |
| 15 | 162532 |
ПОПЛАВОК FLOAT |
1 | |
| 16 | 16196 |
ВИНТ SCREW |
1 | |
| 17 | 802699002 |
ПРОКЛАДКА GASKET |
1 | |
| 18 | 802690004 |
ПОПЛАВКОВАЯ КАМЕРА Handle FLOAT BOWL Handle |
1 | |
| 18 | 802690004 |
ПОПЛАВКОВАЯ КАМЕРА 9.9 Handle EU [0P404258] & Below FLOAT BOWL 9.9 Handle EU [0P404258] & Below |
1 | |
| 18 | 802694010 |
ПОПЛАВКОВАЯ КАМЕРА 9.9 Handle EU [0P404259] & Up FLOAT BOWL 9.9 Handle EU [0P404259] & Up |
1 | |
| 18 | 802690009 |
ПОПЛАВКОВАЯ КАМЕРА Remote FLOAT BOWL Remote |
1 | |
| 18 | 802690009 |
ПОПЛАВКОВАЯ КАМЕРА 9.9 Remote EU [0P404258] & Below FLOAT BOWL 9.9 Remote EU [0P404258] & Below |
1 | |
| 18 | 802694011 |
ПОПЛАВКОВАЯ КАМЕРА 9.9 Remote EU [0P404259] & Up FLOAT BOWL 9.9 Remote EU [0P404259] & Up |
1 | superseded |
| 19 | 16260 |
ВИНТ (M4 x 12) SCREW (M4 x 12) |
4 | |
| 2 | 809571003 |
ВИНТ SCREW |
2 | |
| 20 | 895113 |
КОЛЬЦО Стопор RING Retaining |
1 | superseded |
| 21 | 895114 |
ПРОБКА CAP |
1 | |
| 22 | 895115 |
ЧЕХОЛ Резина BOOT Rubber |
1 | |
| 23 | 809578005 |
ВИНТ Слив SCREW Drain |
1 | |
| 24 | 802691 |
ПРОКЛАДКА GASKET |
1 | |
| 25 | 851812005 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | |
| 26 | 853830001 |
ПЛУНЖЕР PLUNGER |
1 | |
| 27 | 895116 |
ПРУЖИНА SPRING |
1 | |
| 28 | 895117001 |
КРЫШКА Electric Remote COVER Electric Remote |
1 | |
| 29 | 895117 |
КРЫШКА Handle Manual Remote COVER Handle Manual Remote |
1 | |
| 3 | 855540002 |
КРЫШКА COVER |
1 | |
| 30 | 855544013 |
ВИНТ SCREW |
3 | |
| 31 | 803509013 |
ВИНТ Слив Electric Remote SCREW Drain Electric Remote |
1 | |
| 32 | 855567002 |
ПРОКЛАДКА Electric Remote GASKET Electric Remote |
1 | |
| 33 | 802705001 |
ПЛАСТИНА PLATE |
1 | |
| 34 | 851813002 |
ВИНТ SCREW |
1 | |
| 35 | 803509010 |
ВИНТ Направляющая Bodensee SCREW Pilot Bodensee |
1 | |
| 36 | 895132001 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Bodensee O-RING Bodensee |
1 | |
| 37 | 16266004 |
ПРУЖИНА Bodensee SPRING Bodensee |
1 | |
| 38 | 16333 |
ШТОК Защелка ROD Snap |
1 | |
| 39 | 855561007 |
ШТОК Соединение обогатителя Handle ROD Choke Link Handle |
1 | |
| 4 | 855541003 |
ПРОКЛАДКА GASKET |
1 | |
| 40 | 855565 |
РУЧКА Обогатитель [0R068397] & Below KNOB Choke [0R068397] & Below |
1 | superseded |
| 40 | 855565 |
РУЧКА Обогатитель [0P400999] & Below KNOB Choke [0P400999] & Below |
1 | superseded |
| 40 | 855565001 |
РУЧКА Обогатитель [0R068398] & Up KNOB Choke [0R068398] & Up |
1 | superseded |
| 40 | 855565001 |
РУЧКА Обогатитель [0P401000] & Up KNOB Choke [0P401000] & Up |
1 | superseded |
| 41 | 851858005 |
ВТУЛКА Handle BUSHING Handle |
1 | superseded |
| 42 | 855561008 |
ШТОК Соединение обогатителя Manual Remote ROD Choke Link Manual Remote |
1 | superseded |
| 43 | 881305007 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО Manual Remote GROMMET Manual Remote |
1 | |
| 44 | 898103224 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
2 | |
| 5 | 803509012 |
ВИНТ Регулировка холостого хода (15 мм) SCREW Idle Adjustment (15 mm) |
2 | discontinued |
| 5 | 803509A17 |
КОМПЛЕКТ ВИНТОВ И ПРУЖИН (18 мм) SCREW AND SPRING KIT (18 mm) |
2 | |
| 6 | 16264003 |
ПРУЖИНА (14 мм) SPRING (14 mm) |
1 | |
| 6 | 162641 |
ПРУЖИНА (11 мм) SPRING (11 mm) |
1 | discontinued |
| 7 | 895112 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | superseded |
| 8 | 809570002 |
ПОПЛАВКОВЫЙ КЛАПАН FLOAT VALVE |
1 | |
| 9 | 802700003 |
ГЛАВНАЯ ФОРСУНКА 9.9 MAIN NOZZLE 9.9 |
1 | |
| 9 | 802700003 |
ГЛАВНАЯ ФОРСУНКА 9.9 EU [0P404258] & Below MAIN NOZZLE 9.9 EU [0P404258] & Below |
1 | |
| 9 | 802700008 |
ГЛАВНАЯ ФОРСУНКА 9.9 EU [0P404259] & Up MAIN NOZZLE 9.9 EU [0P404259] & Up |
1 | |
| 9 | 802700004 |
ГЛАВНАЯ ФОРСУНКА 8 MAIN NOZZLE 8 |
1 | |
| 9 | 802700007 |
ГЛАВНАЯ ФОРСУНКА Bodensee MAIN NOZZLE Bodensee |
1 |
