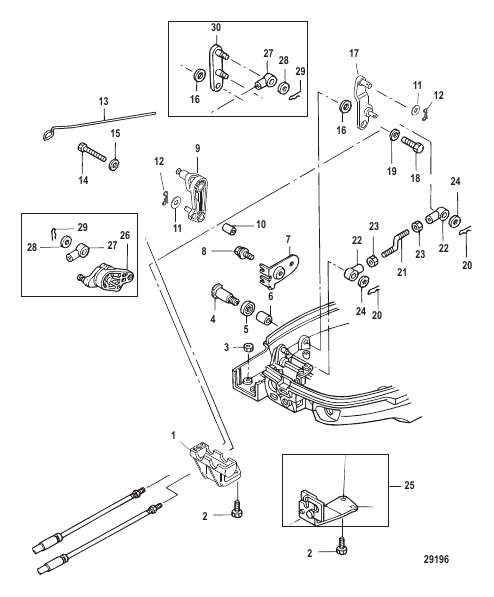

Throttle/Shift Linkage 9.9 Remote Models
Parts (54)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 898101635 |
КРОНШТЕЙН [0R192772] & Up BRACKET [0R192772] & Up |
1 | |
| 1 | 898101635 |
КРОНШТЕЙН [0P513352] & Up BRACKET [0P513352] & Up |
1 | |
| 10 | 8537154 |
ПРОСТАВКА SPACER |
1 | superseded |
| 11 | 898101218 |
ШАЙБА Пластик [0R192772] & Up WASHER Plastic [0R192772] & Up |
2 | |
| 11 | 898101218 |
ШАЙБА Пластик [0P513352] & Up WASHER Plastic [0P513352] & Up |
2 | |
| 12 | 898101920 |
ШПЛИНТ [0R192772] & Up COTTER PIN [0R192772] & Up |
2 | superseded |
| 12 | 898101920 |
ШПЛИНТ [0P513352] & Up COTTER PIN [0P513352] & Up |
2 | superseded |
| 13 | 803574001 |
ШТОК Дроссельная заслонка ROD Throttle |
1 | |
| 14 | 823042044 |
БОЛТ BOLT |
1 | superseded |
| 15 | 895118002 |
ШАЙБА WASHER |
1 | superseded |
| 16 | 16221 |
ВОЛНИСТАЯ ШАЙБА WAVE WASHER |
1 | |
| 17 | 898101903 |
ARM Переключение передач [0R192772] & Up ARM Shift [0R192772] & Up |
1 | |
| 17 | 898101903 |
ARM Переключение передач [0P513352] & Up ARM Shift [0P513352] & Up |
1 | |
| 18 | 82304234 |
БОЛТ BOLT |
1 | superseded |
| 19 | 161404 |
ШАЙБА WASHER |
1 | |
| 2 | 823042037 |
БОЛТ [0R068397] & Below BOLT [0R068397] & Below |
2 | superseded |
| 2 | 823042037 |
БОЛТ [0P400999] & Below BOLT [0P400999] & Below |
2 | superseded |
| 2 | 16832 |
БОЛТ (M6 x 16) [0R068398] THRU [0R192771] BOLT (M6 x 16) [0R068398] THRU [0R192771] |
2 | |
| 2 | 16832 |
БОЛТ (M6 x 16) [0P401000] THRU [0P513351] BOLT (M6 x 16) [0P401000] THRU [0P513351] |
2 | |
| 2 | 82304233 |
БОЛТ [0R192772] & Up BOLT [0R192772] & Up |
2 | superseded |
| 2 | 82304233 |
БОЛТ [0P513352] & Up BOLT [0P513352] & Up |
2 | superseded |
| 20 | 8150262 |
ШПЛИНТ [0R192771] & Below COTTER PIN [0R192771] & Below |
2 | |
| 20 | 8150262 |
ШПЛИНТ [0P513351] & Below COTTER PIN [0P513351] & Below |
2 | |
| 20 | 898101920 |
ШПЛИНТ [0R192772] & Up COTTER PIN [0R192772] & Up |
2 | superseded |
| 20 | 898101920 |
ШПЛИНТ [0P513352] & Up COTTER PIN [0P513352] & Up |
2 | superseded |
| 21 | 892774 |
ШТОК Рычаг переключения передач ROD Shift Lever |
1 | |
| 22 | 892775 |
СОЕДИНЕНИЕ Кабель JOINT Cable |
2 | |
| 23 | 8537225 |
ГАЙКА NUT |
2 | superseded |
| 24 | 953925 |
ШАЙБА [0R192771] & Below WASHER [0R192771] & Below |
2 | |
| 24 | 953925 |
ШАЙБА [0P513351] & Below WASHER [0P513351] & Below |
2 | |
| 24 | 898101218 |
ШАЙБА Пластик [0R192772] & Up WASHER Plastic [0R192772] & Up |
2 | |
| 24 | 898101218 |
ШАЙБА Пластик [0P513352] & Up WASHER Plastic [0P513352] & Up |
2 | |
| 25 | 803875001 |
КРОНШТЕЙН [0R192771] & Below BRACKET [0R192771] & Below |
1 | |
| 25 | 803875001 |
КРОНШТЕЙН [0P513351] & Below BRACKET [0P513351] & Below |
1 | |
| 26 | 804892001 |
БАК Дроссельная заслонка DRUM Throttle |
1 | |
| 26 | 804892004 |
БАК Дроссельная заслонка Command Thrust [0R192771] & Below DRUM Throttle Command Thrust [0R192771] & Below |
1 | |
| 26 | 804892004 |
БАК Дроссельная заслонка [0P513351] & Below DRUM Throttle [0P513351] & Below |
1 | |
| 27 | 8537452 |
ГНЕЗДО Кабельный соединитель [0R192771] & Below SOCKET Cable Joint [0R192771] & Below |
2 | superseded |
| 27 | 8537452 |
ГНЕЗДО Кабельный соединитель [0P513351] & Below SOCKET Cable Joint [0P513351] & Below |
2 | superseded |
| 28 | 953925 |
ШАЙБА [0R192771] & Below WASHER [0R192771] & Below |
2 | |
| 28 | 953925 |
ШАЙБА [0P513351] & Below WASHER [0P513351] & Below |
2 | |
| 29 | 8150262 |
ШПЛИНТ [0R192771] & Below COTTER PIN [0R192771] & Below |
2 | |
| 29 | 8150262 |
ШПЛИНТ [0P513351] & Below COTTER PIN [0P513351] & Below |
2 | |
| 3 | 853722022 |
ГАЙКА NUT |
2 | superseded |
| 30 | 892773 |
РЫЧАГ РЕВЕРСА SHIFT ARM |
1 | |
| 30 | 892773001 |
РЫЧАГ РЕВЕРСА Command Thrust [0R192771] & Below SHIFT ARM Command Thrust [0R192771] & Below |
1 | |
| 30 | 892773001 |
РЫЧАГ РЕВЕРСА Command Thrust [0P513351] & Below SHIFT ARM Command Thrust [0P513351] & Below |
1 | |
| 4 | 17640001 |
ВИНТ С БУРТИКОМ SHOULDER SCREW |
1 | |
| 5 | 16219 |
УПЛОТНЕНИЕ SEAL |
1 | |
| 6 | 16220 |
ВТУЛКА BUSHING |
1 | |
| 7 | 853739003 |
КРОНШТЕЙН BRACKET |
1 | |
| 8 | 82304234 |
БОЛТ BOLT |
1 | superseded |
| 9 | 898101905 |
РЫЧАГ Дроссельная заслонка Command Thrust [0R192772] & Up LEVER Throttle Command Thrust [0R192772] & Up |
1 | |
| 9 | 898101905 |
РЫЧАГ Дроссельная заслонка Command Thrust [0P513352] & Up LEVER Throttle Command Thrust [0P513352] & Up |
1 |
