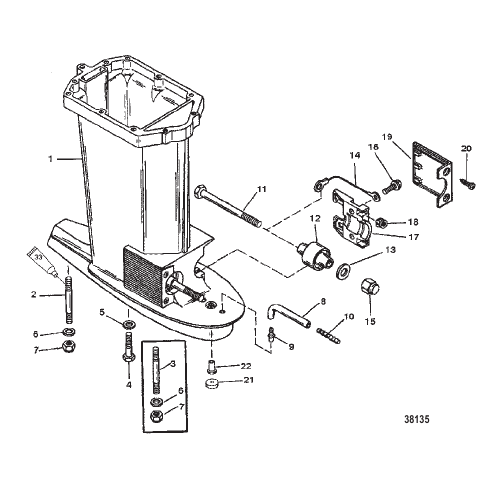

DRIVESHAFT HOUSING
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 816528A1 |
КОРПУС В СБОРЕ Карданный вал (BLACK) SHORT HOUSING ASSEMBLY Driveshaft (BLACK) SHORT |
1 | discontinued |
| 1 | 816528A2 |
КОРПУС В СБОРЕ Карданный вал (GRAY) SHORT HOUSING ASSEMBLY Driveshaft (GRAY) SHORT |
1 | superseded |
| 1 | 9864A6 |
КОРПУС В СБОРЕ Карданный вал (BLACK) LONG HOUSING ASSEMBLY Driveshaft (BLACK) LONG |
1 | superseded |
| 1 | 9864A7 |
КОРПУС В СБОРЕ Карданный вал (GRAY) LONG HOUSING ASSEMBLY Driveshaft (GRAY) LONG |
1 | superseded |
| 1 | 9864A8 |
КОРПУС В СБОРЕ Карданный вал (TRACKER GRAPHITE GRAY) LONG HOUSING ASSEMBLY Driveshaft (TRACKER GRAPHITE GRAY) LONG |
1 | superseded |
| 1 | 816528A3 |
КОРПУС В СБОРЕ Карданный вал (BLACK - JET 45) HOUSING ASSEMBLY Driveshaft (BLACK - JET 45) |
1 | discontinued |
| 1 | 816528A4 |
КОРПУС В СБОРЕ Карданный вал (GRAY - JET 45) HOUSING ASSEMBLY Driveshaft (GRAY - JET 45) |
1 | discontinued |
| 10 | 85822 |
СОЕДИНИТЕЛЬ Прямой CONNECTOR Straight |
1 | superseded |
| 11 | 42973 |
БОЛТ (M12 x 154) BOLT (M12 x 154) |
2 | superseded |
| 12 | 42930A1 |
ОПОРА В СБОРЕ Нижняя часть MOUNT ASSEMBLY Lower |
2 | |
| 13 | 30119 |
ШАЙБА (Наружный диаметр 0.875") WASHER (.875 Inch Outside Diameter) |
2 | |
| 13 | 20959 |
ШАЙБА (7/8 X .06) WASHER (7/8 X .06) |
2 | |
| 14 | 88238A10 |
КАБЕЛЬ В СБОРЕ Заземление CABLE ASSEMBLY Ground |
1 | |
| 15 | 43528 |
ГАЙКА (M12) NUT (M12) |
2 | superseded |
| 16 | 40011149 |
ВИНТ (M8 x 25), нержавеющая сталь SCREW (M8 x 25) Stainless Steel |
4 | |
| 17 | 93192 |
ЗАЖИМ CLAMP |
2 | superseded |
| 18 | 35521 |
ГАЙКА NUT |
4 | |
| 19 | 67077T |
КРЫШКА Черный COVER Black |
2 | superseded |
| 19 | 67077F1 |
КРЫШКА Серый COVER Gray |
2 | discontinued |
| 19 | 67077F2 |
КРЫШКА (TRACKER GRAPHITE GRAY) COVER (TRACKER GRAPHITE GRAY) |
2 | superseded |
| 2 | 903507 |
ШПИЛЬКА (M10 x 60) STUD (M10 x 60) |
1 | |
| 2 | 903501 |
ШПИЛЬКА (M10 x 100) (60 PONTOON/BIG FOOT - LONG) STUD (M10 x 100) (60 PONTOON/BIG FOOT - LONG) |
1 | |
| 2 | 8168664 |
ШПИЛЬКА (M10 x 166) (60 PONTOON/BIG FOOT - LL) STUD (M10 x 166) (60 PONTOON/BIG FOOT - LL) |
1 | superseded |
| 20 | 88417 |
ВИНТ (№12-24 x 0.620) SCREW (#12-24 x .620) |
4 | |
| 21 | 813745 |
ПРОСТАВКА SPACER |
1 | |
| 21 | 8137451 |
ПРОСТАВКА (60 PONTOON / BIGFOOT - LL) SPACER (60 PONTOON / BIGFOOT - LL) |
1 | |
| 22 | 43585 |
СОЕДИНИТЕЛЬНАЯ МУФТА COUPLING |
1 | |
| 3 | 8168663 |
ШПИЛЬКА (M10 x 124) (60 PONTOON/BIG FOOT - LL) STUD (M10 x 124) (60 PONTOON/BIG FOOT - LL) |
4 | superseded |
| 4 | 4000380 |
ВИНТ (M10 x 45) SCREW (M10 x 45) |
4 | |
| 5 | 45176 |
ШАЙБА (0.453 x 0.812 x 0.105), нержавеющая сталь (QTY. OF 5 ON 60 PONTOON ) WASHER (.453 x .812 x .105) Stainless Steel (QTY. OF 5 ON 60 PONTOON ) |
4 | |
| 6 | 45175 |
ШАЙБА (0.406 x 0.750 x 0.104) WASHER (.406 x .750 x .104) |
1 | superseded |
| 7 | 13914 |
ГАЙКА (M10) NUT (M10) |
1 | superseded |
| 8 | 85822A7 |
ПРИЕМНАЯ ТРУБКА СПИДОМЕТРА SPEEDOMETER PICK UP |
1 | discontinued |
| 9 | 13035 |
ФИТИНГ FITTING |
1 | superseded |
