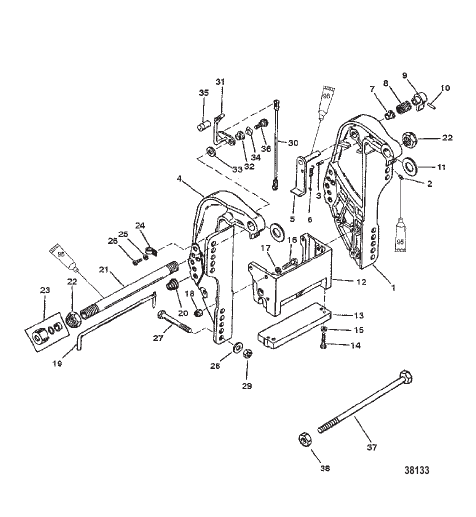

TRANSOM BRACKET (50/60)
Parts (50)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 822866A1 |
КРОНШТЕЙН В СБОРЕ Транец (BLACK) PORT BRACKET ASSEMBLY Transom (BLACK) PORT |
1 | superseded |
| 1 | 822866A2 |
КРОНШТЕЙН В СБОРЕ Транец (GRAY) PORT BRACKET ASSEMBLY Transom (GRAY) PORT |
1 | discontinued |
| 1 | 822866A3 |
КРОНШТЕЙН В СБОРЕ Транец (TRACKER GRAPHITE GRAY) PORT BRACKET ASSEMBLY Transom (TRACKER GRAPHITE GRAY) PORT |
1 | discontinued |
| 10 | 99615 |
ШТИФТ Желоб PIN Groove |
1 | |
| 11 | 19619 |
ШАЙБА WASHER |
2 | |
| 12 | 18486F5 |
КРОНШТЕЙН Анкер (BLACK) BRACKET Anchor (BLACK) |
1 | discontinued |
| 12 | 18486F6 |
КРОНШТЕЙН Анкер (GRAY) BRACKET Anchor (GRAY) |
1 | discontinued |
| 12 | 18486F7 |
КРОНШТЕЙН Анкер (TRACKER GRAPHITE GRAY) BRACKET Anchor (TRACKER GRAPHITE GRAY) |
1 | discontinued |
| 13 | 818298A1 |
КОМПЛЕКТ АНОДОВ ANODE KIT |
1 | superseded |
| 14 | 4000330 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
2 | superseded |
| 15 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
2 | superseded |
| 16 | 4000354 |
ВИНТ (M8 x 30) SCREW (M8 x 30) |
5 | |
| 16 | 4000355 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
1 | |
| 17 | 400257 |
СТОПОРНАЯ ШАЙБА (M8) LOCKWASHER (M8) |
4 | |
| 18 | 400635 |
ГАЙКА (M8) NUT (M8) |
2 | superseded |
| 19 | 49930A1 |
ПАЛЕЦ В СБОРЕ Штифт запирания наклона NON POWER TRIM PIN ASSEMBLY Tilt Lock NON POWER TRIM |
1 | superseded |
| 2 | 98727 |
ФИТИНГ Смазка PORT FITTING Grease PORT |
1 | superseded |
| 20 | 821461 |
ПРУЖИНА NON POWER TRIM SPRING NON POWER TRIM |
1 | |
| 21 | 19614 |
ТРУБА НАКЛОНА TILT TUBE |
1 | superseded |
| 22 | 826164 |
ГАЙКА (0.875-14) NUT (.875-14) |
2 | superseded |
| 23 | 19624A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
1 | |
| 24 | 26550 |
ЗАЖИМ POWER TRIM [0G357069] & Below CLAMP POWER TRIM [0G357069] & Below |
1 | |
| 24 | 22740 |
ЗАЖИМ POWER TRIM [0G357070] & Up CLIP POWER TRIM [0G357070] & Up |
1 | |
| 25 | 69205 |
C-ШАЙБА POWER TRIM C WASHER POWER TRIM |
1 | superseded |
| 26 | 812832 |
ВИНТ (№10-16 x 0.500) POWER TRIM SCREW (#10-16 x .500) POWER TRIM |
1 | superseded |
| 27 | 814259 |
ВИНТ (0.500-20 x 4.00) SCREW (.500-20 x 4.00) |
4 | |
| 28 | 28421 |
ШАЙБА (1.5 × 3.05 × 0.13), нержавеющая сталь WASHER (1.5 x 3.05 x 0.13) Stainless Steel |
4 | superseded |
| 29 | 8M0027784 |
ГАЙКА NUT |
4 | superseded |
| 3 | 99604 |
ШТИФТ Желоб PORT PIN Groove PORT |
1 | |
| 30 | 1938525 |
СОЕДИНИТЕЛЬ NON POWER TRIM LINK NON POWER TRIM |
1 | superseded |
| 31 | 19615A4 |
РЫЧАГ В СБОРЕ Наклон NON POWER TRIM LEVER ASSEMBLY Tilt NON POWER TRIM |
1 | superseded |
| 32 | 812707 |
ВТУЛКА NON POWER TRIM BUSHING NON POWER TRIM |
1 | |
| 33 | 19605 |
ШАЙБА (0.520 x 0.850 x 0.060), нейлон – черный NON POWER TRIM WASHER (.520 x .850 x .060) Nylon - Black NON POWER TRIM |
1 | superseded |
| 34 | 99611 |
ВОЛНИСТАЯ ШАЙБА NON POWER TRIM WAVE WASHER NON POWER TRIM |
1 | |
| 35 | 19621 |
РУЧКА НАКЛОНА NON POWER TRIM TILT KNOB NON POWER TRIM |
1 | superseded |
| 36 | 19611 |
ВИНТ (0.375-16 x 0.62) NON POWER TRIM SCREW (.375-16 x .62) NON POWER TRIM |
1 | |
| 37 | 96930A1 |
БОЛТ В СБОРЕ POWER TRIM BOLT ASSEMBLY POWER TRIM |
1 | |
| 38 | 23161 |
ГАЙКА (.375-24) POWER TRIM NUT (.375-24) POWER TRIM |
1 | |
| 4 | 822865F2 |
КРОНШТЕЙН Транец (BLACK) STARBOARD BRACKET Transom (BLACK) STARBOARD |
1 | superseded |
| 4 | 822865F3 |
КРОНШТЕЙН Транец (GRAY) STARBOARD BRACKET Transom (GRAY) STARBOARD |
1 | discontinued |
| 4 | 822865F4 |
КРОНШТЕЙН Транец (TRACKER GRAPHITE GRAY) STARBOARD BRACKET Transom (TRACKER GRAPHITE GRAY) STARBOARD |
1 | discontinued |
| 5 | 19618A2 |
РЫЧАГ В СБОРЕ Штифт запирания наклона (BLACK) LEVER ASSEMBLY Tilt Lock (BLACK) |
1 | superseded |
| 5 | 19618A3 |
РЫЧАГ В СБОРЕ Штифт запирания наклона (GRAY) LEVER ASSEMBLY Tilt Lock (GRAY) |
1 | discontinued |
| 5 | 19618A5 |
РЫЧАГ В СБОРЕ Штифт запирания наклона (TRACKER GRAPHITE GRAY) LEVER ASSEMBLY Tilt Lock (TRACKER GRAPHITE GRAY) |
1 | discontinued |
| 6 | 99622 |
ПРУЖИНА SPRING |
1 | |
| 7 | 65830 |
NYLINER NYLINER |
1 | |
| 8 | 812708 |
ПРУЖИНА SPRING |
1 | |
| 9 | 812709T |
РУЧКА (BLACK) KNOB (BLACK) |
1 | superseded |
| 9 | 812709T6 |
РУЧКА (GRAY) KNOB (GRAY) |
1 | discontinued |
| 9 | 812709F1 |
РУЧКА (TRACKER GRAPHITE GRAY) KNOB (TRACKER GRAPHITE GRAY) |
1 | superseded |
