| # | Part Number | Description | Qty | Status |
|---|
| - |
816728A12 |

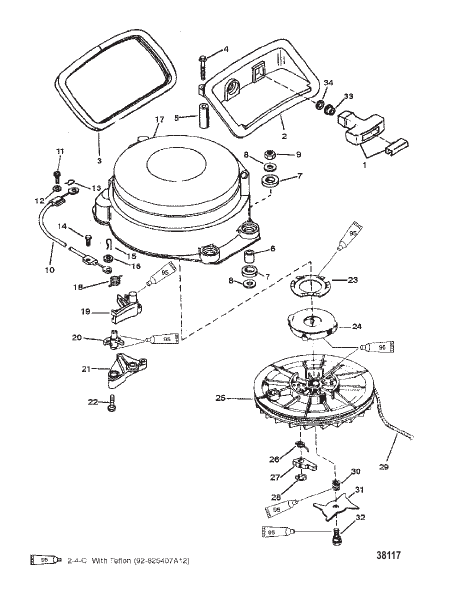

STARTER ASSEMBLY Recoil
|
1 |
superseded
|
| 1 |
85174A1 |
HANDLE ASSEMBLY
|
1 |
|
| 10 |
8167485 |
CABLE Interlock
|
1 |
superseded
|
| 11 |
8214281 |
SCREW (#10-16 x .625)
|
1 |
|
| 12 |
73288 |
WASHER (.220 x .500 x .030) Stainless Steel
|
1 |
|
| 13 |
27769 |
COTTER PIN
|
1 |
superseded
|
| 14 |
812832 |
SCREW (#10-16 x .500)
|
1 |
superseded
|
| 15 |
27769 |
COTTER PIN
|
1 |
superseded
|
| 16 |
35462 |
WASHER (.2656 x .625 x .0625) Stainless Steel
|
1 |
|
| 17 |
8167285 |
HOUSING
|
1 |
superseded
|
| 18 |
826791 |
SPRING
|
1 |
|
| 19 |
8166903 |
LEVER
|
1 |
|
| 2 |
8167652 |
REST
|
1 |
disc.
|
| 20 |
8167121 |
CAM
|
1 |
superseded
|
| 21 |
816711 |
RETAINER
|
1 |
|
| 22 |
8182491 |
SCREW (#10-16 x 1.00)
|
3 |
|
| 23 |
826229 |
LOCKWASHER SPRING
|
1 |
|
| 24 |
868571 |
SPRING
|
1 |
superseded
|
| 25 |
825269A1 |
SHEAVE Starter
|
1 |
superseded
|
| 26 |
86851 |
SPRING
|
2 |
superseded
|
| 27 |
86850 |
CAM
|
2 |
superseded
|
| 28 |
868491 |
RING Retaining
|
2 |
superseded
|
| 29 |
12066A9 |
ROPE
|
1 |
superseded
|
| 3 |
8136072 |
SEAL
|
1 |
superseded
|
| 30 |
86852 |
SPRING
|
1 |
superseded
|
| 31 |
86853 |
CAM
|
1 |
superseded
|
| 32 |
826253 |
SCREW (.250-20 x .625)
|
1 |
|
| 33 |
42690 |
BUSHING
|
1 |
superseded
|
| 34 |
818853 |
RING Retaining
|
1 |
|
| 4 |
82170475 |
SCREW (M6 x 75)
|
2 |
|
| 5 |
821702 |
SPACER
|
2 |
|
| 6 |
816086 |
BUSHING
|
4 |
|
| 7 |
815795 |
GROMMET
|
8 |
|
| 8 |
69057 |
WASHER (.281 x .734 x .063)
|
8 |
|
| 9 |
401196 |
NUT (M6)
|
4 |
|
