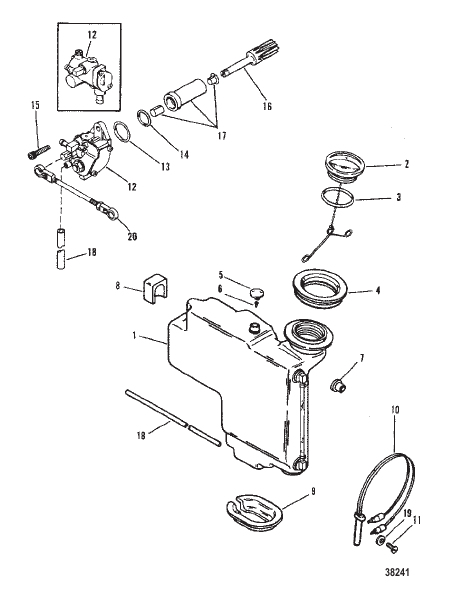

OIL INJECTION COMPONENTS
Parts (24)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8127181 |
БАК Масло (DESIGN I USE WITH REF. #3) TANK Oil (DESIGN I USE WITH REF. #3) |
1 | superseded |
| 1 | 812718A1 |
БАК В СБОРЕ Масло (DESIGN II USE WITHOUT REF. #3) TANK ASSEMBLY Oil (DESIGN II USE WITHOUT REF. #3) |
1 | superseded |
| 10 | 12886A6 |
ПЕРЕКЛЮЧАТЕЛЬ В СБОРЕ SWITCH ASSEMBLY |
1 | |
| 11 | 58376 |
ВИНТ (0.164-18 x 0.375) SCREW (.164-18 x .375) |
1 | |
| 12 | 812690A1 |
НАСОС В СБОРЕ Впрыск масла [0D181999] & Below PUMP ASSEMBLY Oil Injection [0D181999] & Below |
1 | discontinued |
| 12 | 818902A1 |
НАСОС В СБОРЕ Впрыск масла [0D182000] & Up PUMP ASSEMBLY Oil Injection [0D182000] & Up |
1 | |
| 13 | 62705 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | superseded |
| 14 | 36390 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО O-RING |
1 | |
| 15 | 40011108 |
ВИНТ (M5 x 20), нержавеющая сталь SCREW (M5 x 20) Stainless Steel |
2 | |
| 16 | 19277 |
ПЕРЕДАЧА Ведомый GEAR Driven |
1 | |
| 17 | 19278A2 |
БЛОК ПОДШИПНИКА BEARING ASSEMBLY |
1 | |
| 18 | 82381325 |
ТРУБОПРОВОД (Общая длина 10.00") TUBING (10.00 Inches Bulk) |
2 | superseded |
| 19 | 72761 |
ШАЙБА (0.203 x 0.562 x 0.060), нержавеющая сталь WASHER (.203 x .562 x .060) Stainless Steel |
1 | |
| 2 | 19070A2 |
КОЛПАЧОК В СБОРЕ (DESIGN I USE WITH REF. #3) CAP ASSEMBLY (DESIGN I USE WITH REF. #3) |
1 | |
| 2 | 828765A2 |
КОЛПАЧОК В СБОРЕ (DESIGN II USE WITHOUT REF. #3) CAP ASSEMBLY (DESIGN II USE WITHOUT REF. #3) |
1 | |
| 20 | 821287 |
СОЕДИНИТЕЛЬ [0D182000] & Up LINK [0D182000] & Up |
1 | discontinued |
| 3 | 90186 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (DESIGN I USE WITH REF. #3) O-RING (DESIGN I USE WITH REF. #3) |
1 | |
| 4 | 8160661 |
УПЛОТНЕНИЕ (DESIGN I USE WITH REF. #3) SEAL (DESIGN I USE WITH REF. #3) |
1 | discontinued |
| 4 | 8160662 |
УПЛОТНЕНИЕ (DESIGN II USE WITHOUT REF. #3) SEAL (DESIGN II USE WITHOUT REF. #3) |
1 | superseded |
| 5 | 19299A1 |
ПАТРУБОК В СБОРЕ VENT ASSEMBLY |
1 | |
| 6 | 64871 |
КЛАПАН VALVE |
1 | |
| 7 | 813644 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО GROMMET |
1 | discontinued |
| 8 | 813649 |
ЧЕХОЛ BOOT |
1 | discontinued |
| 9 | 812890 |
ЧЕХОЛ BOOT |
1 | superseded |
