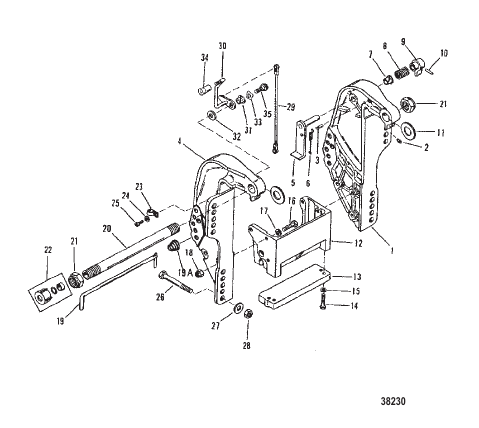

TRANSOM BRACKET (50/60)(S/N: 0D181999 AND BELOW)
Parts (42)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 9751A1 |
КРОНШТЕЙН В СБОРЕ Транец (BLACK) (PORT) BRACKET ASSEMBLY Transom (BLACK) (PORT) |
1 | discontinued |
| 1 | 9751A2 |
КРОНШТЕЙН В СБОРЕ Транец (GRAY) (PORT) BRACKET ASSEMBLY Transom (GRAY) (PORT) |
1 | discontinued |
| 10 | 99615 |
ШТИФТ Желоб PIN Groove |
1 | |
| 11 | 19619 |
ШАЙБА WASHER |
2 | |
| 12 | 18486F5 |
КРОНШТЕЙН Анкер (BLACK) BRACKET Anchor (BLACK) |
1 | discontinued |
| 12 | 18486T6 |
КРОНШТЕЙН Анкер (GRAY) BRACKET Anchor (GRAY) |
1 | superseded |
| 13 | 818298A1 |
КОМПЛЕКТ АНОДОВ ANODE KIT |
1 | superseded |
| 14 | 4000330 |
ВИНТ (M6 x 25) SCREW (M6 x 25) |
2 | superseded |
| 15 | 29245 |
ШАЙБА (0.281 x 0.500 x 0.060), нержавеющая сталь WASHER (.281 x .500 x .060) Stainless Steel |
2 | superseded |
| 16 | 4000354 |
ВИНТ (M8 x 30) SCREW (M8 x 30) |
5 | |
| 16 | 4000355 |
ВИНТ (M8 x 35) SCREW (M8 x 35) |
1 | |
| 17 | 400257 |
СТОПОРНАЯ ШАЙБА (M8) LOCKWASHER (M8) |
4 | |
| 18 | 400635 |
ГАЙКА (M8) NUT (M8) |
2 | superseded |
| 19 | 19613A1 |
ПАЛЕЦ В СБОРЕ Наклон (DESIGN I) PIN ASSEMBLY Tilt (DESIGN I) |
1 | discontinued |
| 19A | 49930A1 |
ПАЛЕЦ В СБОРЕ Штифт запирания наклона (DESIGN II) PIN ASSEMBLY Tilt Lock (DESIGN II) |
1 | superseded |
| 2 | 98727 |
ФИТИНГ Смазка FITTING Grease |
1 | superseded |
| 20 | 19614 |
ТРУБА НАКЛОНА TILT TUBE |
1 | superseded |
| 21 | 30499 |
ГАЙКА (7/8-14) NUT (7/8-14) |
2 | superseded |
| 22 | 19624A1 |
КОМПЛЕКТ УПЛОТНЕНИЙ SEAL KIT |
1 | |
| 23 | 22740 |
ЗАЖИМ (POWER TRIM) CLIP (POWER TRIM) |
1 | |
| 24 | 69205 |
C-ШАЙБА (POWER TRIM) C WASHER (POWER TRIM) |
1 | superseded |
| 25 | 817626 |
ВИНТ (№10-16 x 0.380) (POWER TRIM) SCREW (#10-16 x .380) (POWER TRIM) |
1 | superseded |
| 26 | 814259 |
ВИНТ (0.500-20 x 4.00) SCREW (.500-20 x 4.00) |
4 | |
| 27 | 28421 |
ШАЙБА (1.5 × 3.05 × 0.13), нержавеющая сталь WASHER (1.5 x 3.05 x 0.13) Stainless Steel |
4 | superseded |
| 28 | 8M0027784 |
ГАЙКА NUT |
4 | superseded |
| 29 | 1938525 |
СОЕДИНИТЕЛЬ (NON POWER TRIM) LINK (NON POWER TRIM) |
1 | superseded |
| 3 | 99604 |
ШТИФТ Желоб PIN Groove |
1 | |
| 30 | 19615A4 |
РЫЧАГ В СБОРЕ Наклон (NON POWER TRIM) LEVER ASSEMBLY Tilt (NON POWER TRIM) |
1 | superseded |
| 31 | 812707 |
ВТУЛКА (NON POWER TRIM) BUSHING (NON POWER TRIM) |
1 | |
| 32 | 815796 |
ШАЙБА (NON POWER TRIM) WASHER (NON POWER TRIM) |
1 | discontinued |
| 33 | 99611 |
ВОЛНИСТАЯ ШАЙБА (NON POWER TRIM) WAVE WASHER (NON POWER TRIM) |
1 | |
| 34 | 19621 |
РУЧКА НАКЛОНА (NON POWER TRIM) TILT KNOB (NON POWER TRIM) |
1 | superseded |
| 35 | 19611 |
ВИНТ (0.375-16 x 0.62) (NON POWER TRIM) SCREW (.375-16 x .62) (NON POWER TRIM) |
1 | |
| 4 | 9750T |
КРОНШТЕЙН Транец (BLACK) (STARBOARD) BRACKET Transom (BLACK) (STARBOARD) |
1 | discontinued |
| 4 | 9750T6 |
КРОНШТЕЙН Транец (GRAY) (STARBOARD) BRACKET Transom (GRAY) (STARBOARD) |
1 | discontinued |
| 5 | 19618A2 |
РЫЧАГ В СБОРЕ Штифт запирания наклона (BLACK) LEVER ASSEMBLY Tilt Lock (BLACK) |
1 | superseded |
| 5 | 19618A3 |
РЫЧАГ В СБОРЕ Штифт запирания наклона (GRAY) LEVER ASSEMBLY Tilt Lock (GRAY) |
1 | discontinued |
| 6 | 99622 |
ПРУЖИНА SPRING |
1 | |
| 7 | 65830 |
NYLINER NYLINER |
1 | |
| 8 | 812708 |
ПРУЖИНА SPRING |
1 | |
| 9 | 812709T |
РУЧКА KNOB |
1 | superseded |
| 9 | 812709T6 |
РУЧКА KNOB |
1 | discontinued |
