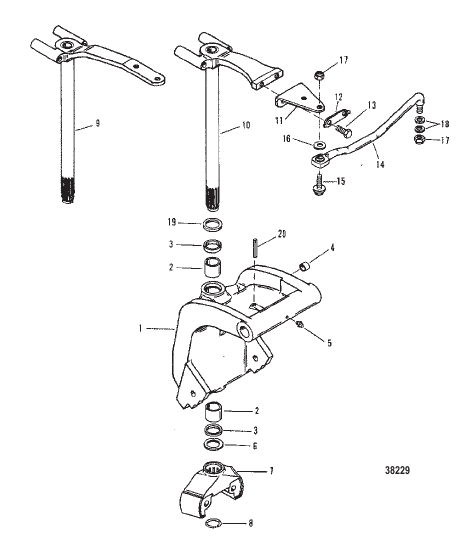

SWIVEL BRACKET (S/N: 0D181999 AND BELOW)
Parts (30)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 814690A1 |
ПОВОРОТНЫЙ КРОНШТЕЙН (SHORT) (BLACK) SWIVEL BRACKET (SHORT) (BLACK) |
1 | discontinued |
| 1 | 814690A2 |
ПОВОРОТНЫЙ КРОНШТЕЙН (SHORT) (GRAY) SWIVEL BRACKET (SHORT) (GRAY) |
1 | discontinued |
| 1 | 815556A1 |
ПОВОРОТНЫЙ КРОНШТЕЙН (LONG) (BLACK) SWIVEL BRACKET (LONG) (BLACK) |
1 | discontinued |
| 1 | 815556A2 |
ПОВОРОТНЫЙ КРОНШТЕЙН (LONG) (GRAY) SWIVEL BRACKET (LONG) (GRAY) |
1 | discontinued |
| 10 | 812897A7 |
ШАРНИРНЫЙ ПАЛЕЦ В СБОРЕ (SHORT) (BLACK) SWIVEL PIN ASSEMBLY (SHORT) (BLACK) |
1 | superseded |
| 10 | 812897A8 |
ШАРНИРНЫЙ ПАЛЕЦ В СБОРЕ (SHORT) (GRAY) SWIVEL PIN ASSEMBLY (SHORT) (GRAY) |
1 | superseded |
| 10 | 812896A14 |
ШАРНИРНЫЙ ПАЛЕЦ В СБОРЕ (BLACK) (2 PIECE - LONG) SWIVEL PIN ASSEMBLY (BLACK) (2 PIECE - LONG) |
1 | superseded |
| 10 | 812896A15 |
ШАРНИРНЫЙ ПАЛЕЦ В СБОРЕ (GRAY) (2 PIECE - LONG) SWIVEL PIN ASSEMBLY (GRAY) (2 PIECE - LONG) |
1 | superseded |
| 11 | 816667T |
КРОНШТЕЙН (BLACK) (50/60) BRACKET (BLACK) (50/60) |
1 | superseded |
| 11 | 816667F3 |
КРОНШТЕЙН (GRAY) (50/60) BRACKET (GRAY) (50/60) |
1 | superseded |
| 12 | 816669 |
ЛЕПЕСТКОВАЯ ШАЙБА (50/60) TAB WASHER (50/60) |
1 | superseded |
| 13 | 4000377 |
ВИНТ (M10 x 30) (50/60) SCREW (M10 x 30) (50/60) |
2 | |
| 14 | 196081 |
СТЕРЖЕНЬ ТЯГИ (STARBOARD) (50/60) LINK ROD (STARBOARD) (50/60) |
1 | superseded |
| 14 | 196091 |
СТЕРЖЕНЬ ТЯГИ (PORT) (50/60) LINK ROD (PORT) (50/60) |
1 | superseded |
| 15 | 90041 |
ВИНТ (0.375-24 x 1.620) (50/60) SCREW (.375-24 x 1.620) (50/60) |
1 | superseded |
| 16 | 71970 |
ШАЙБА (0.390 x 0.546 x 0.12) (50/60) WASHER (.390 x .546 x .12) (50/60) |
1 | superseded |
| 17 | 34863 |
ГАЙКА (.375-24) (50/60) NUT (.375-24) (50/60) |
2 | superseded |
| 18 | 34931 |
ШАЙБА (0.406 x 0.734 x 0.063), нержавеющая сталь (50/60) WASHER (.406 x .734 x .063) Stainless Steel (50/60) |
2 | |
| 19 | 52865 |
ШАЙБА WASHER |
1 | |
| 2 | 821124 |
ПОДШИПНИК BEARING |
2 | |
| 20 | 823876 |
ШТИФТ (55) PIN (55) |
1 | |
| 3 | 32911 |
УПЛОТНЕНИЕ Масло SEAL Oil |
2 | |
| 4 | 19606 |
ПОДШИПНИК BEARING |
2 | |
| 5 | 74036 |
ФИТИНГ Смазка FITTING Grease |
3 | superseded |
| 6 | 52865 |
ШАЙБА WASHER |
1 | |
| 7 | 19654T |
ВИЛКА Нижняя часть (BLACK) YOKE Bottom (BLACK) |
1 | superseded |
| 7 | 19654T6 |
ВИЛКА Нижняя часть (GRAY) YOKE Bottom (GRAY) |
1 | superseded |
| 8 | 77415 |
СТОПОРНОЕ КОЛЬЦО RETAINING RING |
1 | |
| 9 | NLA |
Не поставляется SWIVEL PIN (BLACK-REPLACED BY 2 PIECE REF #10) 1 PIECE No Longer Available SWIVEL PIN (BLACK-REPLACED BY 2 PIECE REF #10) 1 PIECE |
1 | |
| 9 | NLA |
Не поставляется SWIVEL PIN (GRAY-REPLACED BY 2 PIECE REF #10) 1 PIECE No Longer Available SWIVEL PIN (GRAY-REPLACED BY 2 PIECE REF #10) 1 PIECE |
1 |
