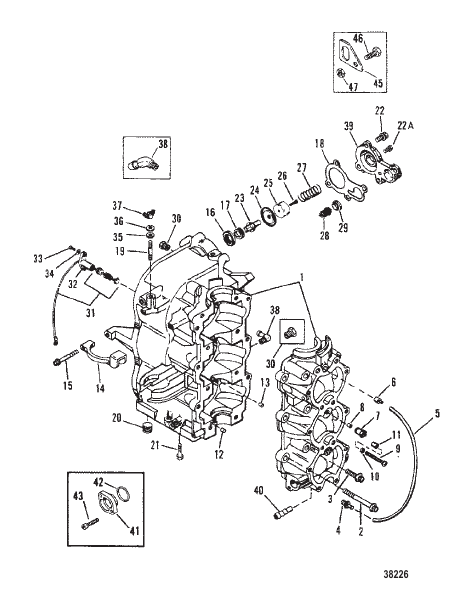

CYLINDER BLOCK AND CRANKCASE
Parts (64)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| - | 812867A97 |
КОМПЛЕКТ ПРОКЛАДОК GASKET SET |
1 | |
| - | 811208T91 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ В сборе (50)(Includes 0.008 Reed) [0D181999] & Below POWERHEAD ASSEMBLY Complete (50)(Includes 0.008 Reed) [0D181999] & Below |
1 | discontinued |
| - | 821744T92 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ В сборе (55)(Includes 0.008 Reed) [0D181999] & Below POWERHEAD ASSEMBLY Complete (55)(Includes 0.008 Reed) [0D181999] & Below |
1 | discontinued |
| - | 811209T91 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ В сборе (60)(Includes 0.008 Reed) [0D181999] & Below POWERHEAD ASSEMBLY Complete (60)(Includes 0.008 Reed) [0D181999] & Below |
1 | discontinued |
| - | 811209T93 |
СИЛОВАЯ ГОЛОВКА В СБОРЕ В сборе (50/55/60)(Includes 0.008 Reed) [0D182000] & Up POWERHEAD ASSEMBLY Complete (50/55/60)(Includes 0.008 Reed) [0D182000] & Up |
1 | discontinued |
| 1 | 9755A9 |
БЛОК ЦИЛИНДРА (50) [0D181999] & Below CYLINDER BLOCK (50) [0D181999] & Below |
1 | discontinued |
| 1 | 9755A14 |
БЛОК ЦИЛИНДРА (55) [0D181999] & Below CYLINDER BLOCK (55) [0D181999] & Below |
1 | superseded |
| 1 | 9755A10 |
БЛОК ЦИЛИНДРА (60) [0D181999] & Below CYLINDER BLOCK (60) [0D181999] & Below |
1 | superseded |
| 1 | 9755A15 |
БЛОК ЦИЛИНДРА (50/55/60) [0D182000] & Up CYLINDER BLOCK (50/55/60) [0D182000] & Up |
1 | superseded |
| 10 | 400212 |
ГАЙКА (M6), нержавеющая сталь NUT (M6) Stainless Steel |
1 | |
| 11 | 42942 |
ПРОБКА CAP |
1 | |
| 12 | 20033 |
ШТИФТ Штифт (LOCATING) PIN Dowel (LOCATING) |
1 | superseded |
| 13 | 812870 |
ШТИФТ Центр. главн. (BEARING RACE) PIN Center Main (BEARING RACE) |
3 | superseded |
| 14 | 18597 |
КРЫШКА COVER |
1 | discontinued |
| 15 | 81742750 |
ВИНТ (M8 x 50) SCREW (M8 x 50) |
2 | discontinued |
| 16 | 65848 |
КОРПУС (50/60 - DESIGN I) CARRIER (50/60 - DESIGN I) |
1 | |
| 17 | 64872 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (50/60 - DESIGN I) GROMMET (50/60 - DESIGN I) |
1 | |
| 18 | 8128671 |
ПРОКЛАДКА (USE W/DESIGN I REF'S # 16 & 17) GASKET (USE W/DESIGN I REF'S # 16 & 17) |
1 | |
| 18 | 8128672 |
ПРОКЛАДКА (DESIGN II - W/O REF'S #16 & 17) GASKET (DESIGN II - W/O REF'S #16 & 17) |
1 | |
| 19 | 8161941 |
ШПИЛЬКА STUD |
2 | superseded |
| 2 | 81742780 |
ВИНТ (M8 x 80) SCREW (M8 x 80) |
8 | |
| 20 | 18598 |
ЗАГЛУШКА ТРУБЫ PIPE PLUG |
4 | superseded |
| 21 | 817430110 |
ВИНТ (M10 x 110) SCREW (M10 x 110) |
6 | |
| 22 | 81742720 |
ВИНТ (M8 x 20) (QTY. OF 3 ON 55) (USE W/DESIGN I REF'S # 16 & 17) SCREW (M8 x 20) (QTY. OF 3 ON 55) (USE W/DESIGN I REF'S # 16 & 17) |
4 | |
| 22 | 40011149 |
ВИНТ (M8 x 25), нержавеющая сталь (QTY. OF 3 ON 55) (DESIGN II - W/O REF'S # 16 & 17) SCREW (M8 x 25) Stainless Steel (QTY. OF 3 ON 55) (DESIGN II - W/O REF'S # 16 & 17) |
4 | |
| 22A | 12896 |
ВИНТ (№8-18 x 0.310) (55) SCREW (#8-18 x .310) (55) |
1 | |
| 23 | 8128821 |
ТАРЕЛЬЧАТЫЙ КЛАПАН (50/60) POPPET (50/60) |
1 | |
| 24 | 812887 |
ДИАФРАГМА (50/60)(USE W/DESIGN I REF'S # 16 & 17) DIAPHRAGM (50/60)(USE W/DESIGN I REF'S # 16 & 17) |
1 | discontinued |
| 24 | 8128871 |
ДИАФРАГМА (50/60)(DESIGN II - W/O REF'S #16 & 17) DIAPHRAGM (50/60)(DESIGN II - W/O REF'S #16 & 17) |
1 | superseded |
| 25 | 94182 |
ШАЙБА (50/60) WASHER (50/60) |
1 | |
| 26 | 69570 |
ВИНТ (№10-16 x 0.750) (50/60) SCREW (#10-16 x .750) (50/60) |
1 | |
| 27 | 90392 |
ПРУЖИНА (50/60) SPRING (50/60) |
1 | |
| 27 | 18336 |
ПРУЖИНА (50/60)(60 PONTOON) SPRING (50/60)(60 PONTOON) |
1 | superseded |
| 28 | 75692 |
ТЕРМОСТАТ (143 Degrees)(50/60) THERMOSTAT (143 Degrees)(50/60) |
1 | |
| 28 | 14586 |
ТЕРМОСТАТ (120 Degrees)(50/60) THERMOSTAT (120 Degrees)(50/60) |
1 | |
| 29 | 62386 |
ПРОКЛАДКА (50/60) GASKET (50/60) |
1 | superseded |
| 3 | 81742730 |
ВИНТ (M8 x 30) SCREW (M8 x 30) |
6 | |
| 30 | 32802 |
ПРОБКА Труба (0.125-27) PLUG Pipe (.125-27) |
1 | superseded |
| 31 | 787992 |
ДАТЧИК Температура SENDER Temperature |
1 | |
| 32 | 44552 |
ФИКСАТОР RETAINER |
1 | superseded |
| 33 | 8128321 |
ВИНТ (№10-16 x 0.600) SCREW (#10-16 x .600) |
1 | superseded |
| 34 | 56681 |
ШАЙБА (0.203 x 0.500 x 0.032) WASHER (.203 x .500 x .032) |
1 | superseded |
| 35 | 49221 |
ШАЙБА (0.187 x 0.500 x 0.062), неопрен (50/60) WASHER (.187 x .500 x .062) Neoprene (50/60) |
2 | superseded |
| 36 | 69056 |
ШАЙБА (0.255 x 0.620 x 0.030), нержавеющая сталь (50/60) WASHER (.255 x .620 x .030) Stainless Steel (50/60) |
2 | |
| 37 | 816872 |
БАРАШКОВАЯ ГАЙКА (50/60) WING NUT (50/60) |
2 | |
| 38 | 99664 |
КОЛЕНЧАТЫЙ (50/60) ELBOW (50/60) |
1 | superseded |
| 38 | 78279 |
КОЛЕНЧАТЫЙ (55) ELBOW (55) |
1 | superseded |
| 39 | 19074 |
КРЫШКА (USE W/DESIGN I REF'S # 16 & 17) COVER (USE W/DESIGN I REF'S # 16 & 17) |
1 | discontinued |
| 39 | 190741 |
КРЫШКА (DESIGN II - W/O REF'S #16 & 17) COVER (DESIGN II - W/O REF'S #16 & 17) |
1 | superseded |
| 4 | 42658 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
1 | superseded |
| 40 | 65857 |
СОЕДИНИТЕЛЬ (50/60) CONNECTOR (50/60) |
1 | superseded |
| 41 | 8129961 |
КРЫШКА (55) [0D181999] & Below COVER (55) [0D181999] & Below |
1 | discontinued |
| 41 | 8129962 |
КРЫШКА [0D182000] & Up COVER [0D182000] & Up |
1 | discontinued |
| 42 | 48462 |
УПЛОТНИТЕЛЬНОЕ КОЛЬЦО (0.614 x 0.070) (55) O-RING (.614 x .070) (55) |
1 | |
| 43 | 40011108 |
ВИНТ (M5 x 20), нержавеющая сталь (55) SCREW (M5 x 20) Stainless Steel (55) |
2 | |
| 45 | 821595 |
ПОДЪЕМНАЯ СКОБА (55) LIFTING EYE (55) |
1 | discontinued |
| 46 | 821616 |
ВИНТ (55)(45MM - USE W/DESIGN I REF'S # 16 & 17) SCREW (55)(45MM - USE W/DESIGN I REF'S # 16 & 17) |
1 | discontinued |
| 46 | 821606 |
ВИНТ (55)(55MM - DESIGN II - W/O REF'S #16 & 17 ) SCREW (55)(55MM - DESIGN II - W/O REF'S #16 & 17 ) |
1 | discontinued |
| 47 | 400265 |
ГАЙКА (M8) (55) NUT (M8) (55) |
1 | superseded |
| 5 | 99130122 |
ТРУБОПРОВОД (Общая длина 20.00 фт.) (16") TUBING (20.00 Feet Bulk) (16") |
1 | superseded |
| 6 | 42623 |
ОБРАТНЫЙ КЛАПАН (PRESS-IN) CHECK VALVE (PRESS-IN) |
1 | superseded |
| 7 | 812888A1 |
СТАКАН В СБОРЕ CARRIER ASSEMBLY |
2 | |
| 8 | 42657A1 |
ОБРАТНЫЙ КЛАПАН CHECK VALVE |
2 | superseded |
| 9 | 814776 |
ВИНТ Регулировка (M6 x 55) SCREW Adjusting (M6 x 55) |
1 |
