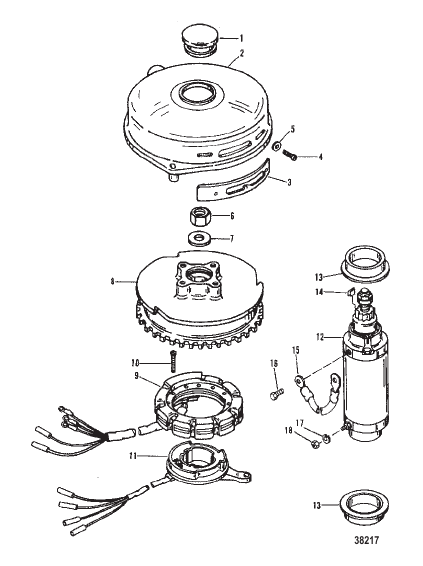

FLYWHEEL AND STARTER MOTOR (50/60)
Parts (20)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 89219 |
ПРОБКА PLUG |
1 | superseded |
| 10 | 4007330 |
ВИНТ (M5 x 30) SCREW (M5 x 30) |
4 | superseded |
| 11 | 99021A16 |
ТРИГГЕР TRIGGER |
1 | discontinued |
| 12 | 44369A1 |
СТАРТЕР В СБОРЕ STARTER MOTOR ASSEMBLY |
1 | discontinued |
| 13 | 56703 |
ВТУЛКА COLLAR |
2 | superseded |
| 14 | 57247 |
СТОП STOP |
2 | superseded |
| 15 | 88807A31 |
КАБЕЛЬ В СБОРЕ CABLE ASSEMBLY |
1 | |
| 16 | 69035 |
ВИНТ И СТОПОРНАЯ ШАЙБА (0.250-20 x 0.625), нержавеющая сталь SCREW AND LOCKWASHER (.250-20 x .625) Stainless Steel |
1 | |
| 17 | 26992 |
СТОПОРНАЯ ШАЙБА (0.250), нержавеющая сталь LOCKWASHER (.250) Stainless Steel |
2 | |
| 18 | 64015 |
ГАЙКА (0.250-20) NUT (.250-20) |
1 | |
| 2 | 812777T |
КРЫШКА МАХОВИКА DESIGN II FLYWHEEL COVER DESIGN II |
1 | superseded |
| 3 | 79022 |
МАРКЕР DESIGN I MARKER DESIGN I |
1 | |
| 4 | 37572 |
ВИНТ (0.190-32 x 0.380) DESIGN I SCREW (.190-32 x .380) DESIGN I |
2 | |
| 5 | 72761 |
ШАЙБА (0.203 x 0.562 x 0.060), нержавеющая сталь DESIGN I WASHER (.203 x .562 x .060) Stainless Steel DESIGN I |
2 | |
| 6 | 42979 |
ГАЙКА (M16) NUT (M16) |
1 | |
| 7 | 68229 |
ШАЙБА (0.641 x 1.250 x 0.190) WASHER (.641 x 1.250 x .190) |
1 | superseded |
| 8 | 9008A19 |
МАХОВИК FLYWHEEL |
1 | superseded |
| 9 | 9710A26 |
СТАТОР (STAMPED 398-9710A22) STATOR (STAMPED 398-9710A22) |
1 | superseded |
| 9 | 9710A23 |
СТАТОР (STAMPED 398-9710A23) STATOR (STAMPED 398-9710A23) |
1 | superseded |
| 9 | 9710A36 |
СТАТОР (STAMPED 398-9710A34) STATOR (STAMPED 398-9710A34) |
1 | superseded |
