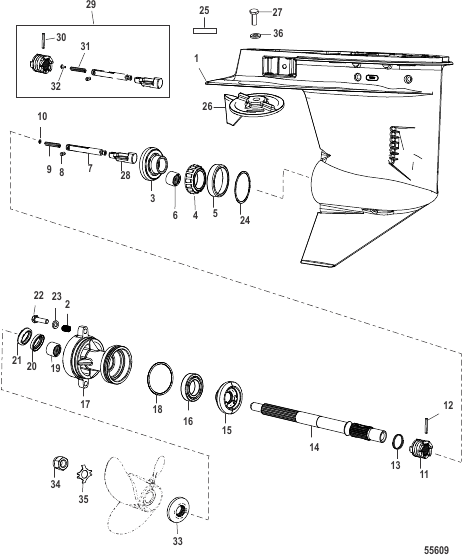

| # | Part Number | Description | Qty | Status |
|---|
| - |
8M0047705 |
GEAR HOUSING ASSEMBLY Complete [1C267558] & Below
|
1 |
superseded
|
| - |
8M0086326 |
GEAR HOUSING ASSEMBLY Complete [1C267559] & Up
|
1 |
|
| - |
814669A2 |
SEAL KIT Gear Housing
|
1 |
|
| 1 |
893680T06 |
GEAR HOUSING ASSEMBLY Basic
|
1 |
|
| 10 |
78910 |
WASHER
|
1 |
|
| 11 |
821314T01 |
CLUTCH
|
1 |
|
| 12 |
8M0009287 |
PIN Cross Design I [1C267558] & Below
|
1 |
disc.
|
| 13 |
38114 |
SPRING
|
1 |
|
| 14 |
826193T03 |
PROPELLER SHAFT
|
1 |
|
| 15 |
859104T01 |
GEAR Reverse
|
1 |
|
| 16 |
20839T |
BEARING Ball
|
1 |
|
| 17 |
19291A3 |
CARRIER ASSEMBLY Bearing
|
1 |
superseded
|
| 18 |
815460 |
O-RING
|
1 |
|
| 19 |
21700 |
BEARING Needle
|
1 |
|
| 2 |
8227731 |
INSERT Threaded
|
2 |
|
| 20 |
69188 |
SEAL Oil
|
1 |
superseded
|
| 21 |
69189 |
SEAL Oil
|
1 |
superseded
|
| 22 |
85594030 |
SCREW (M8 x 30)
|
2 |
|
| 23 |
855941 |
WASHER (.323 x .590 x .112) Stainless Steel
|
2 |
|
| 24 |
889246A98 |
SHIM SET
|
AR |
disc.
|
| 25 |
NSS |
NOT SOLD SEPARATE Decal-Gear Ratio
|
1 |
|
| 26 |
822157T03 |
TRIM TAB Aluminum
|
1 |
superseded
|
| 26 |
17264T2 |
TRIM TAB Zinc
|
1 |
|
| 27 |
1996230 |
SCREW (M10 x 30)
|
1 |
superseded
|
| 28 |
8M0008716 |
CAM Follower
|
1 |
disc.
|
| 29 |
8M0091340 |
SPRING / PIN KIT Design II [1C267559] & Up
|
1 |
|
| 3 |
859101T03 |
GEAR ASSEMBLY Forward
|
1 |
|
| 30 |
NSS |
NOT SOLD SEPARATE PIN Design II [1C267559] & Up
|
|
|
| 31 |
NSS |
NOT SOLD SEPARATE SPRING Design II [1C267559] & Up
|
|
|
| 32 |
NSS |
NOT SOLD SEPARATE GUIDE,Spring Design II [1C267559] & Up
|
1 |
|
| 33 |
73345A1 |
THRUST WASHER
|
1 |
|
| 34 |
69578Q1 |
PROP NUT KIT
|
1 |
|
| 35 |
76281 |
TAB WASHER
|
1 |
superseded
|
| 36 |
856774 |
WASHER (.406 x .750 x .105) Stainless Steel
|
4 |
superseded
|
| 37 |
4000380 |
SCREW (M10 x 45)
|
4 |
|
| 38 |
856774 |
WASHER (.406 x .750 x .105) Stainless Steel
|
1 |
superseded
|
| 4 |
889246A95 |
BEARING ASSEMBLY Roller
|
1 |
|
| 5 |
NSS |
NOT SOLD SEPARATE Cup
|
1 |
|
| 6 |
21700 |
BEARING Needle
|
1 |
|
| 7 |
8M0005743 |
ROD ACTUATOR
|
1 |
|
| 8 |
8M0025222 |
PIN Spring
|
1 |
superseded
|
| 9 |
79910 |
SPRING Design I [1C267558] & Below
|
1 |
|
