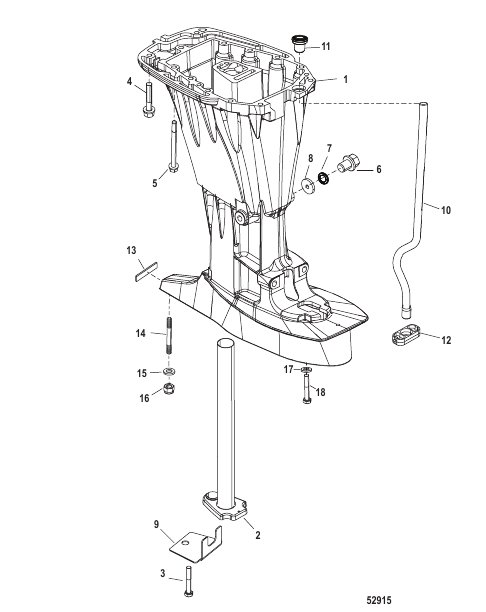

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
852421T08 |
HOUSING Driveshaft - Short
|
1 |
|
| 10 |
897970A01 |
TUBE/SEAL KIT Water - Short
|
1 |
|
| 11 |
8M0021959 |
SEAL Water
|
1 |
superseded
|
| 12 |
828529 |
GUIDE
|
1 |
|
| 13 |
828706 |
BUMPER
|
1 |
superseded
|
| 14 |
823984 |
STUD (M10 x 50)
|
1 |
|
| 15 |
856774 |
WASHER (.406 x .750 x .105) Stainless Steel
|
1 |
superseded
|
| 16 |
40140 |
NUT (M10)
|
1 |
|
| 17 |
856774 |
WASHER (.406 x .750 x .105) Stainless Steel
|
4 |
superseded
|
| 18 |
4000380 |
SCREW (M10 x 45)
|
4 |
|
| 2 |
NSS |
NOT SOLD SEPARATE EXHAUST PIPE
|
1 |
|
| 3 |
1993325 |
SCREW (M10 x 25 MM) Long
|
1 |
|
| 4 |
88960845 |
SCREW (M8 x 45)
|
5 |
|
| 5 |
824459110 |
SCREW (M8 x 110) Stainless Steel
|
8 |
|
| 6 |
8288181 |
PLUG Drain
|
1 |
|
| 7 |
8M0007119 |
SEAL Drain Plug
|
1 |
superseded
|
| 8 |
826276 |
BUMPER
|
1 |
|
| 9 |
893770 |
PLATE Driveshaft Housing
|
1 |
disc.
|
