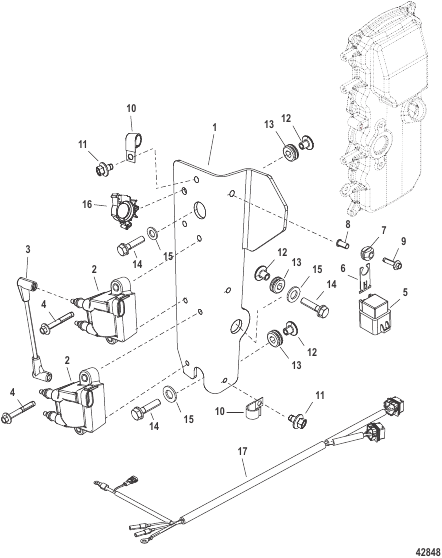

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
8M0044994 |
COIL PLATE
|
1 |
|
| 10 |
8M0024808 |
J-CLIP
|
2 |
|
| 11 |
82129110 |
SCREW (M6 x 10)
|
2 |
|
| 12 |
856954 |
BUSHING
|
3 |
|
| 13 |
834985 |
GROMMET
|
3 |
superseded
|
| 14 |
88552525 |
SCREW (M6 x 25 MM) Stainless Steel
|
3 |
superseded
|
| 15 |
4002316 |
WASHER (6.60 X 17.0 X 1.5SS)
|
3 |
superseded
|
| 16 |
898454 |
CLIP (19 mm)
|
1 |
|
| 17 |
826802T36 |
HARNESS ASSEMBLY Trim
|
1 |
|
| 2 |
8M0044991 |
IGNITION COIL Ignition Dual Output
|
2 |
|
| 3 |
881908T |
CABLE SET
|
1 |
|
| 4 |
82129130 |
SCREW (M6 x 30)
|
4 |
|
| 5 |
882751A1 |
RELAY ASSEMBLY
|
3 |
superseded
|
| 6 |
828102 |
BRACKET
|
1 |
superseded
|
| 7 |
818967 |
GROMMET
|
1 |
|
| 8 |
818968 |
BUSHING
|
3 |
superseded
|
| 9 |
82129125 |
SCREW (M6 x 25 MM)
|
1 |
|
