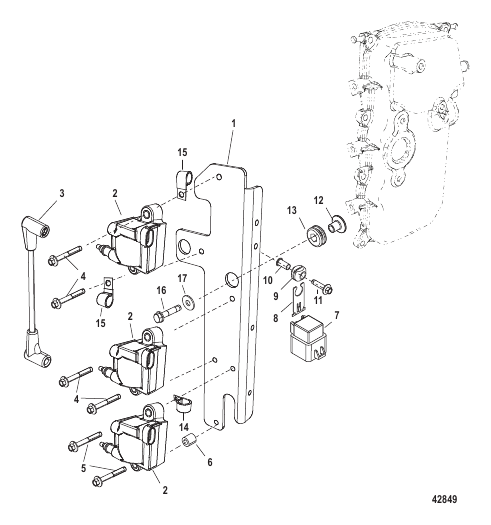

| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 8M0044992 | COIL PLATE | 1 | |
| 10 | 818968 | BUSHING | 1 | superseded |
| 11 | 82129125 | SCREW (M6 x 25 MM) | 1 | |
| 12 | 856954 | BUSHING | 3 | |
| 13 | 834985 | GROMMET | 3 | superseded |
| 14 | 8M0024808 | J-CLIP | 1 | |
| 15 | 8M0024807 | CLIP | 2 | |
| 16 | 82684425 | SCREW (M6 x 25) | 3 | |
| 17 | 4002316 | WASHER (6.60 X 17.0 X 1.5SS) | 3 | superseded |
| 2 | 8M0045124 | COIL Ignition | 3 | |
| 3 | 881908T | CABLE SET | 1 | |
| 4 | 82129130 | SCREW (M6 x 30) | 4 | |
| 5 | 82129140 | SCREW (M6 x 40) | 2 | |
| 6 | 892863001 | SPACER | 1 | superseded |
| 7 | 882751A1 | RELAY ASSEMBLY | 1 | superseded |
| 8 | 828102 | BRACKET | 1 | superseded |
| 9 | 818967 | GROMMET | 1 |
