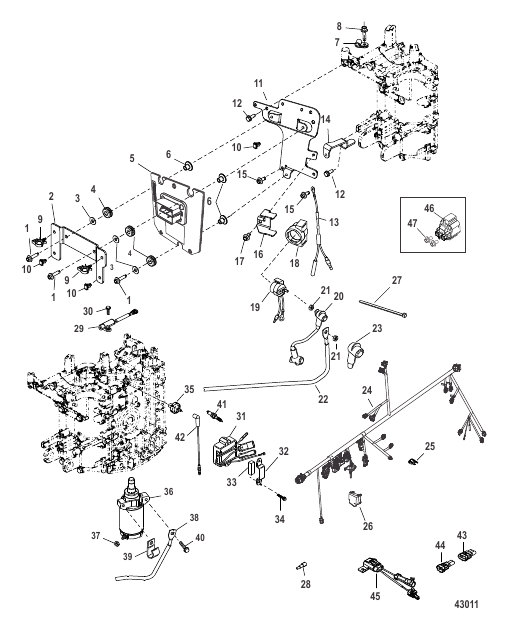

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
82129125 |
SCREW (M6 x 25 MM)
|
3 |
|
| 10 |
879962 |
CLIP Part of Electrical Harness
|
3 |
|
| 11 |
8M0022449 |
PLATE
|
1 |
|
| 12 |
8248324 |
SCREW (M6 x 16)
|
3 |
|
| 13 |
883834A1 |
CABLE ASSEMBLY Diode
|
1 |
superseded
|
| 14 |
8M0007734 |
BRACE
|
1 |
|
| 15 |
82129114 |
SCREW (M6 x 14)
|
2 |
|
| 16 |
893768 |
PLATE Solenoid Design-I [1C299075] & Below
|
1 |
disc.
|
| 17 |
82129114 |
SCREW (M6 x 14)
|
1 |
|
| 18 |
8M0010250 |
BRACKET Design-I [1C299075] & Below
|
1 |
|
| 19 |
825096T |
RELAY Design-I [1C299075] & Below
|
1 |
superseded
|
| 2 |
893774002 |
BRACKET
|
1 |
|
| 20 |
93388A16 |
CABLE ASSEMBLY (8.50 Inches)
|
1 |
|
| 21 |
401386 |
NUT (M6) Stainless Steel Design-I [1C299075] & Below
|
2 |
|
| 22 |
88439A9 |
CABLE ASSEMBLY Battery - Positive
|
1 |
|
| 23 |
880786 |
BOOT Insulator - Red
|
1 |
|
| 24 |
8M0044998 |
HARNESS ASSEMBLY
|
1 |
|
| 25 |
83296920 |
FUSE Mini - Yellow - 20 Ampere
|
3 |
superseded
|
| 25 |
83296925 |
FUSE Mini - Clear - 25 Ampere
|
1 |
superseded
|
| 25 |
8329695 |
FUSE Mini - Tan - 5 Ampere
|
1 |
superseded
|
| 25 |
83296915 |
FUSE Mini - Blue - 15 Ampere
|
1 |
superseded
|
| 25 |
8329692 |
FUSE Mini - Gray - 2 Ampere
|
1 |
superseded
|
| 26 |
8M0045270 |
COVER
|
1 |
|
| 27 |
816311T |
TIE STRAP (8.00 Inches)
|
AR |
|
| 28 |
13541 |
PLUG Male
|
1 |
|
| 29 |
8283582 |
SENSOR
|
1 |
superseded
|
| 3 |
4002316 |
WASHER (6.60 X 17.0 X 1.5SS)
|
3 |
superseded
|
| 30 |
40011107 |
SCREW (M5 x 16) Stainless Steel
|
2 |
|
| 31 |
893640T01 |
REGULATOR Voltage
|
1 |
|
| 32 |
893771 |
BRACKET Connector
|
1 |
|
| 33 |
8308971 |
FOAM PAD
|
1 |
|
| 34 |
8248329 |
SCREW (M6 x 40)
|
2 |
|
| 35 |
8280401 |
PRESSURE SWITCH
|
1 |
superseded
|
| 36 |
893887T |
STARTER MOTOR ASSEMBLY Complete
|
1 |
|
| 37 |
94330 |
NUT (.250-20) Brass
|
1 |
|
| 38 |
88439A4 |
CABLE ASSEMBLY Battery - Negative
|
1 |
|
| 39 |
65292 |
J CLIP
|
1 |
superseded
|
| 4 |
834985 |
GROMMET
|
3 |
superseded
|
| 40 |
40011153 |
SCREW (M8 x 45) Stainless Steel
|
3 |
|
| 41 |
883323001 |
SPARK PLUG
|
3 |
|
| 42 |
881863A1 |
CABLE ASSEMBLY
|
1 |
|
| 43 |
822447T01 |
CAP ASSEMBLY Connector - 3 Pin Male
|
1 |
|
| 44 |
824514T02 |
CAP ASSEMBLY Connector - 2 Pin Male
|
1 |
|
| 45 |
897940T01 |
HARNESS ASSEMBLY Fuse
|
1 |
|
| 46 |
8M0098898 |
RELAY Design-II [1C299076] & Up
|
1 |
|
| 47 |
8M0085874 |
SCREW Design-II [1C299076] & Up
|
2 |
|
| 5 |
8M0045708 |
ECM Engine Control Module - 40 3 CYL EPA/EU
|
1 |
superseded
|
| 5 |
8M0047978 |
ECM Engine Control Module - 30 3 Cyl EU
|
1 |
superseded
|
| 6 |
856954 |
BUSHING
|
3 |
|
| 7 |
24836 |
CLIP
|
1 |
|
| 8 |
82239312 |
SCREW (M5 x 12)
|
1 |
|
| 9 |
858954 |
CLIP (.625)
|
2 |
|
