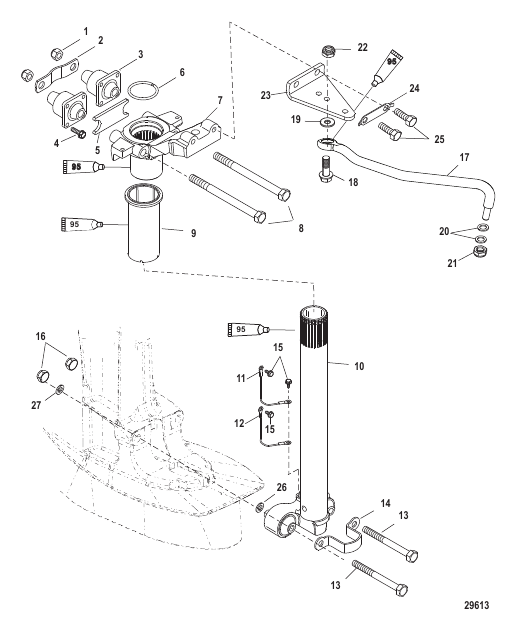

Steering Arm
Parts (34)
| # | Part Number | Description | Qty | Status |
|---|---|---|---|---|
| 1 | 896963 |
ГАЙКА (M12) NUT (M12) |
2 | |
| 10 | 850175T2 |
ПОВОРОТНАЯ ТРУБКА (Short) SWIVEL TUBE (Short) |
1 | superseded |
| 10 | 893590T01 |
ПОВОРОТНАЯ ТРУБКА (Длинный) SWIVEL TUBE (Long) |
1 | |
| 11 | 88238A4 |
КАБЕЛЬ В СБОРЕ CABLE ASSEMBLY |
1 | superseded |
| 12 | 88238A13 |
КАБЕЛЬ В СБОРЕ Заземление CABLE ASSEMBLY Ground |
1 | superseded |
| 13 | 823567105 |
ВИНТ Шестигранный фланец (M10 x 105), нержавеющая сталь [1C046581] & Below SCREW (M10 x 105) Hex Flange - Stainless Steel [1C046581] & Below |
2 | |
| 13 | 823567105 |
ВИНТ Шестигранный фланец (M10 x 105), нержавеющая сталь [0P502069] & Below SCREW (M10 x 105) Hex Flange - Stainless Steel [0P502069] & Below |
2 | |
| 13 | 892086120 |
ВИНТ (M10 x 120) [1C046582] & Up SCREW (M10 x 120) [1C046582] & Up |
2 | superseded |
| 13 | 892086120 |
ВИНТ (M10 x 120) [0P502070] & Up SCREW (M10 x 120) [0P502070] & Up |
2 | superseded |
| 14 | 893703 |
СКОБА Нижняя опора STRAP Lower Mount |
1 | |
| 15 | 878607 |
ВИНТ (№10-16 x 0.375) SCREW (#10-16 x .375) |
3 | |
| 16 | 40140 |
ГАЙКА (M10) NUT (M10) |
2 | |
| 17 | 19608A14 |
КОМПЛЕКТ КРЕПЕЖА Рулевой механизм двигателя (Non Handle) ATTACHING KIT Engine Steering (Non Handle) |
1 | |
| 18 | 823919 |
ВИНТ (0.375-24 x 1.500) (Non Handle) SCREW (.375-24 x 1.500) (Non Handle) |
1 | |
| 19 | 71970 |
ШАЙБА (0.390 x 0.546 x 0.12) (Non Handle) WASHER (.390 x .546 x .12) (Non Handle) |
1 | superseded |
| 2 | 893773002 |
СКОБА Верхнее крепление STRAP Upper Mount |
1 | |
| 20 | 37828 |
ШАЙБА (0.390 x 0.625 x 0.062), нержавеющая сталь (Non Handle) WASHER (.390 x .625 x .062) Stainless Steel (Non Handle) |
2 | |
| 21 | 826709113 |
ГАЙКА (0.375-24), нержавеющая сталь (Non Handle) NUT (.375-24) Stainless Steel (Non Handle) |
1 | superseded |
| 22 | 826709113 |
ГАЙКА (0.375-24), нержавеющая сталь (Non Handle) NUT (.375-24) Stainless Steel (Non Handle) |
1 | superseded |
| 23 | 816667F3 |
КРОНШТЕЙН Ride-Guide (Non Handle) BRACKET Ride-Guide (Non Handle) |
1 | superseded |
| 24 | 816669F1 |
ЛЕПЕСТКОВАЯ ШАЙБА (Non Handle) TAB WASHER (Non Handle) |
1 | superseded |
| 25 | 4000377 |
ВИНТ (M10 x 30) (Non Handle) SCREW (M10 x 30) (Non Handle) |
2 | |
| 26 | 45176 |
ШАЙБА (0.453 x 0.812 x 0.105), нержавеющая сталь [1C046581] & Below WASHER (.453 x .812 x .105) Stainless Steel [1C046581] & Below |
2 | |
| 26 | 45176 |
ШАЙБА (0.453 x 0.812 x 0.105), нержавеющая сталь [0P502069] & Below WASHER (.453 x .812 x .105) Stainless Steel [0P502069] & Below |
2 | |
| 27 | 4002319 |
ШАЙБА [1C046582] & Up WASHER [1C046582] & Up |
2 | |
| 27 | 4002319 |
ШАЙБА [0P502070] & Up WASHER [0P502070] & Up |
2 | |
| 3 | 826267T2 |
КРЕПЛЕНИЕ Upper MOUNT Upper |
2 | superseded |
| 4 | 40011128 |
ВИНТ (M6 x 20), нержавеющая сталь SCREW (M6 x 20) Stainless Steel |
8 | superseded |
| 5 | 826658 |
УПОР BUMPER |
1 | superseded |
| 6 | 89531 |
КОЛЬЦО Стопор RING Retaining |
1 | |
| 7 | 825222F3 |
ARM Рулевой механизм ARM Steering |
1 | superseded |
| 8 | 42973 |
БОЛТ (M12 x 154) BOLT (M12 x 154) |
2 | superseded |
| 9 | 8279973 |
ПРОСТАВКА (Short) SPACER (Short) |
1 | |
| 9 | 8279971 |
ПРОСТАВКА (Long) SPACER (Long) |
1 |
