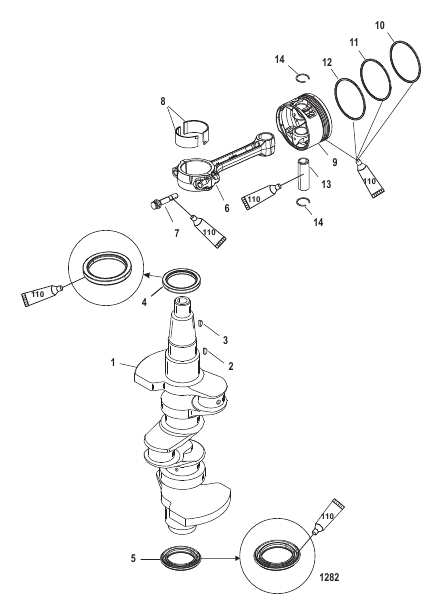

| # | Part Number | Description | Qty | Status |
|---|
| - |
803017T01 |
POWERHEAD ASSEMBLY (Short Shaft)
|
1 |
disc.
|
| - |
803016T07 |
POWERHEAD ASSEMBLY (Long Shaft)
|
1 |
superseded
|
| - |
859352A02 |
GASKET SET
|
1 |
disc.
|
| 1 |
834774T1 |
CRANKSHAFT ASSEMBLY (Short Shaft)
|
1 |
|
| 1 |
858507T04 |
CRANKSHAFT ASSEMBLY (Long Shaft)
|
1 |
|
| 10 |
893525A01 |
RING SET Piston (Standard)
|
3 |
|
| 10 |
893525A02 |
RING SET Piston (.25MM Oversized)
|
AR |
|
| 10 |
893525A03 |
RING SET Ring (.50MM Oversized)
|
AR |
|
| 11 |
NSS |
NOT SOLD SEPARATE Piston Ring (Second)
|
3 |
|
| 12 |
NSS |
NOT SOLD SEPARATE Ring-Piston Oil
|
3 |
|
| 13 |
893863 |
PIN Piston
|
3 |
|
| 14 |
893529 |
RETAINER Piston Pin
|
6 |
|
| 2 |
18856M |
KEY
|
1 |
superseded
|
| 3 |
91800 |
KEY Woodruff
|
1 |
|
| 4 |
825027 |
SEAL
|
1 |
superseded
|
| 5 |
832013 |
SEAL
|
1 |
superseded
|
| 6 |
856065T1 |
CONNECTING ROD
|
3 |
superseded
|
| 7 |
825019 |
BOLT
|
6 |
superseded
|
| 8 |
893630001 |
BEARING Black (Black)
|
6 |
|
| 8 |
893630 |
BEARING Brown (Brown)
|
6 |
|
| 8 |
893630002 |
BEARING Blue (Blue)
|
6 |
|
| 9 |
893524T08 |
PISTON ASSEMBLY
|
3 |
|
| 9 |
893524T01 |
PISTON ASSEMBLY (.25MM Oversized)(Bare Piston)
|
AR |
disc.
|
| 9 |
893524T02 |
PISTON ASSEMBLY (.50MM Oversized)(Bare Piston)
|
AR |
disc.
|
