| # | Part Number | Description | Qty | Status |
|---|
| - |
878139A06 |

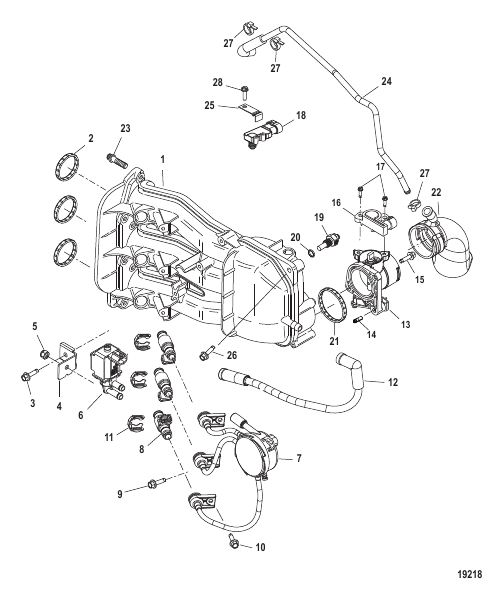

MANIFOLD ASSEMBLY Intake
|
1 |
superseded
|
| - |
883597 |
O-RING KIT Injector (Upper)
|
1 |
|
| - |
883598 |
O-RING KIT Injector (Lower)
|
1 |
|
| - |
859352A02 |
GASKET SET
|
1 |
disc.
|
| 1 |
878139T01 |
MANIFOLD Intake
|
1 |
superseded
|
| 10 |
881059 |
SCREW
|
3 |
|
| 11 |
883460 |
CLIP
|
3 |
|
| 12 |
877831A1 |
HOSE
|
1 |
|
| 13 |
877831A03 |
THROTTLE BODY ASSEMBLY
|
1 |
|
| 14 |
8M0000578 |
SCREW Adjustment
|
1 |
|
| 15 |
881059 |
SCREW
|
2 |
|
| 16 |
881070T |
SENSOR Position
|
1 |
superseded
|
| 17 |
881060 |
SCREW
|
2 |
|
| 18 |
854445 |
SENSOR MAP
|
1 |
|
| 19 |
889575 |
SENSOR ASSEMBLY
|
1 |
superseded
|
| 2 |
879866 |
GASKET SET (Contains 4 Gaskets)
|
1 |
|
| 20 |
627021 |
O-RING (.301 x .070)
|
1 |
|
| 21 |
879867 |
GASKET
|
1 |
|
| 22 |
893521 |
ATTENUATOR
|
1 |
|
| 23 |
8248326 |
SCREW (M6 x 25 MM)
|
6 |
|
| 24 |
880754A2 |
BREATHER HOSE
|
1 |
superseded
|
| 25 |
883832 |
RETAINER
|
1 |
superseded
|
| 26 |
82684430 |
SCREW (M6 x 30)
|
1 |
|
| 27 |
816311T |
TIE STRAP (8.00 Inches)
|
3 |
|
| 28 |
8214281 |
SCREW (#10-16 x .625)
|
1 |
|
| 3 |
881059 |
SCREW
|
1 |
|
| 4 |
877834 |
BRACKET
|
1 |
|
| 5 |
401366 |
NUT (M6) Stainless Steel
|
1 |
|
| 6 |
877805T |
SOLENOID VALVE
|
1 |
|
| 7 |
879886T |
TFI SYSTEM
|
1 |
|
| 8 |
892123002 |
INJECTOR
|
3 |
|
| 9 |
881059 |
SCREW
|
2 |
|
