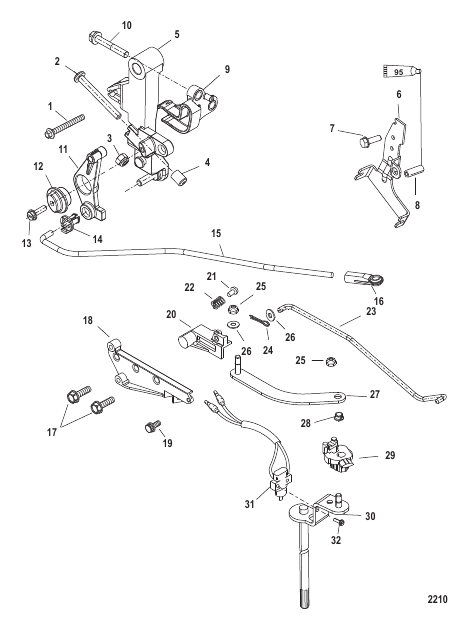

| # | Part Number | Description | Qty | Status |
|---|
| 1 |
40011158 |
SCREW (M8 x 70) Stainless Steel
|
1 |
|
| 10 |
8248329 |
SCREW (M6 x 40)
|
2 |
|
| 11 |
883006A1 |
ARM ASSEMBLY Throttle
|
1 |
|
| 12 |
883005 |
BUSHING
|
1 |
|
| 13 |
8214281 |
SCREW (#10-16 x .625)
|
1 |
|
| 14 |
932481 |
BUSHING
|
1 |
superseded
|
| 15 |
893780A01 |
LINK ASSEMBLY Throttle
|
1 |
|
| 16 |
19384 |
SOCKET
|
1 |
superseded
|
| 17 |
8248326 |
SCREW (M6 x 25 MM)
|
2 |
|
| 18 |
858245 |
SHIFT GUIDE
|
1 |
|
| 19 |
82239312 |
SCREW (M5 x 12)
|
1 |
|
| 2 |
8147763 |
SCREW (M6 x 60)
|
1 |
|
| 20 |
858246 |
SHIFT SLIDE
|
1 |
|
| 21 |
12016A2 |
DETENT/SPRING KIT
|
1 |
disc.
|
| 22 |
NSS |
NOT SOLD SEPARATE Spring
|
1 |
|
| 23 |
858247 |
SHIFT ROD
|
1 |
|
| 24 |
210711 |
COTTER PIN
|
1 |
|
| 25 |
401386 |
NUT (M6) Stainless Steel
|
2 |
|
| 26 |
29245 |
WASHER (.281 x .500 x .060) Stainless Steel
|
2 |
superseded
|
| 27 |
858248 |
SHIFT LINK
|
1 |
|
| 28 |
48475 |
BUSHING
|
1 |
|
| 29 |
850165 |
BUSHING
|
1 |
|
| 3 |
401196 |
NUT (M6)
|
1 |
|
| 30 |
850166T06 |
LEVER ASSEMBLY Shift Shaft
|
1 |
|
| 31 |
814281T10 |
SWITCH ASSEMBLY
|
1 |
|
| 32 |
878609 |
SCREW (#10-16 x .600)
|
2 |
|
| 4 |
42942 |
CAP
|
1 |
|
| 5 |
822682A4 |
LEVER ASSEMBLY Throttle
|
1 |
|
| 6 |
830294T3 |
BRACKET
|
1 |
|
| 7 |
40011128 |
SCREW (M6 x 20) Stainless Steel
|
2 |
superseded
|
| 8 |
825078 |
BUSHING
|
1 |
|
| 9 |
879865 |
CAM Throttle
|
1 |
|
